No woodworking skills? No problem. This beginner-friendly guide walks you through every step to build a custom bar without feeling overwhelmed.

Step 1: Plan Your Bar

Determine your bar’s size, location, and seating. Use painter’s tape to map the bar’s footprint on the floor to visualize it. A typical bar includes:

• Bar height: 42″
• Overhang: 8″+
• Bar top width: 16–20″ (with Chicago bar rail)
• Stools: 30″ tall, spaced 2′ apart
• Foot rail: 7–9″ off the floor

Step 2: Gather Tools & Materials

Tools Needed:Compound miter saw, circular saw, drill, nail gun, sander, level, hammer, safety glasses, wood glue, tape measure.

Optional: Borrow or rent tools to save money.

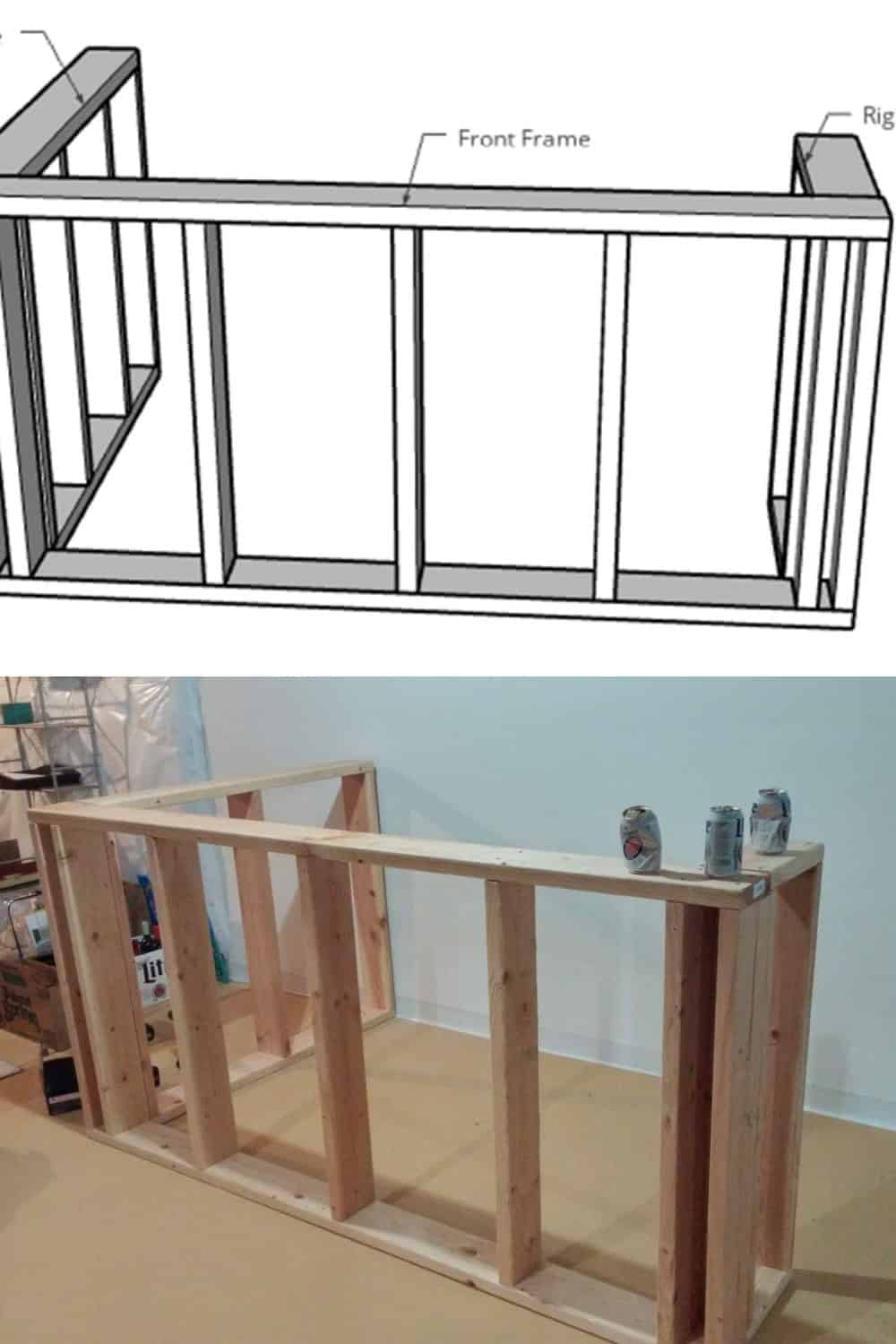

Step 3: Build the Bar Frame

Use 2x6s and basic wood screws. Construct 3 separate frames (front, left, right) before attaching them together.

• Front Frame: 7 – 2x6s @ 38″, 2 – 2x6s @ 84.25″
• Left Frame: 4 – 2x6s @ 38″, 2 – 2x6s @ 48.75″
• Right Frame: 2 – 2x6s @ 38″, 2 – 2x6s @ 18.75″

Once joined, the frame measures 84.5″ (front), 48.75″ (left), and 18.75″ (right), with a height of 42″ after the top is installed. Don’t worry about visible gaps—these will be covered with trim later.

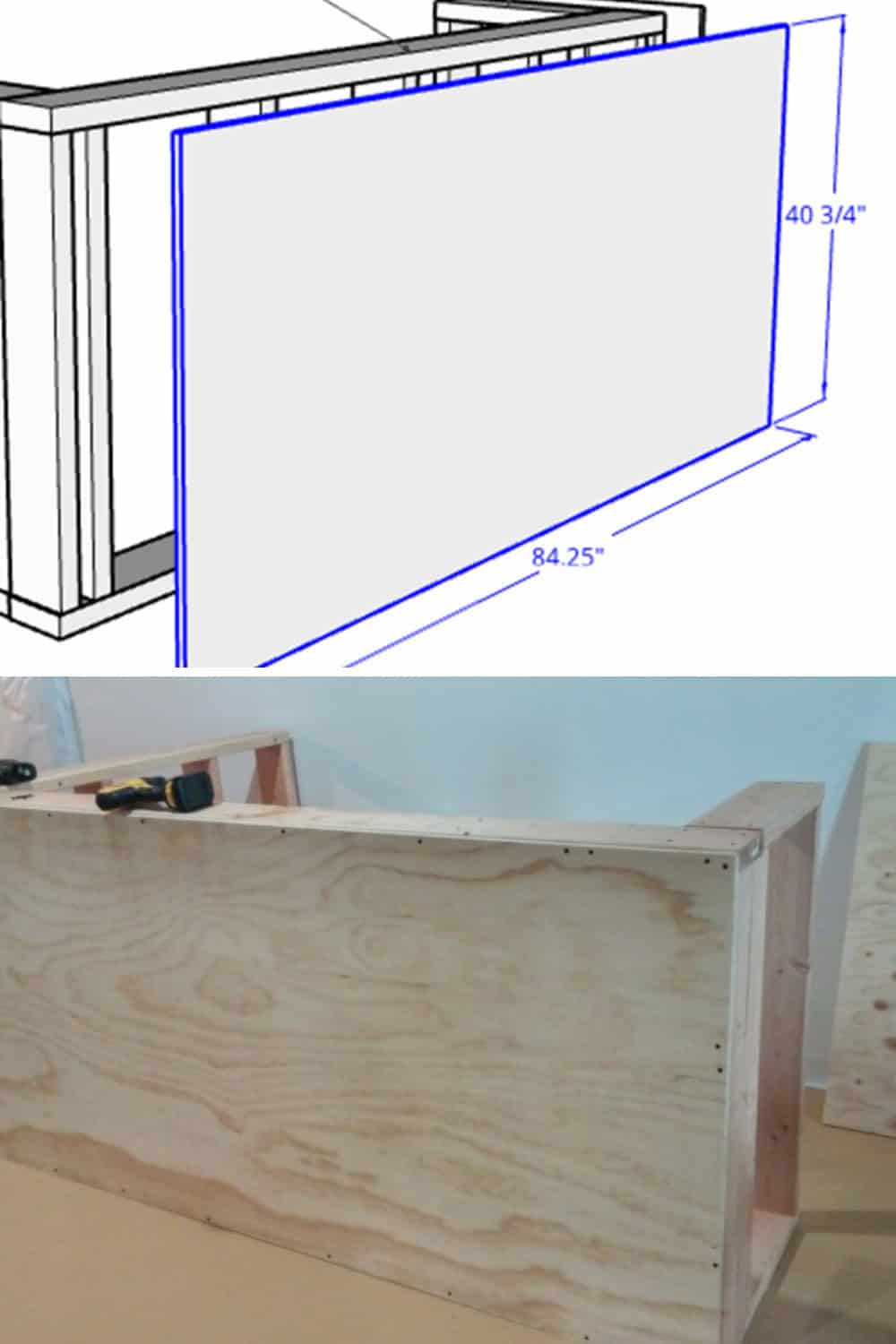

Step 4: Attach Plywood

Wrap the frame in ¾” pine plywood. Predrill holes to avoid splitting and screw only around the perimeter. Plywood cut list:

• 1 – 54” x 40.75”
• 1 – 84.25” x 40.75”
• 1 – 24.25” x 40.75”

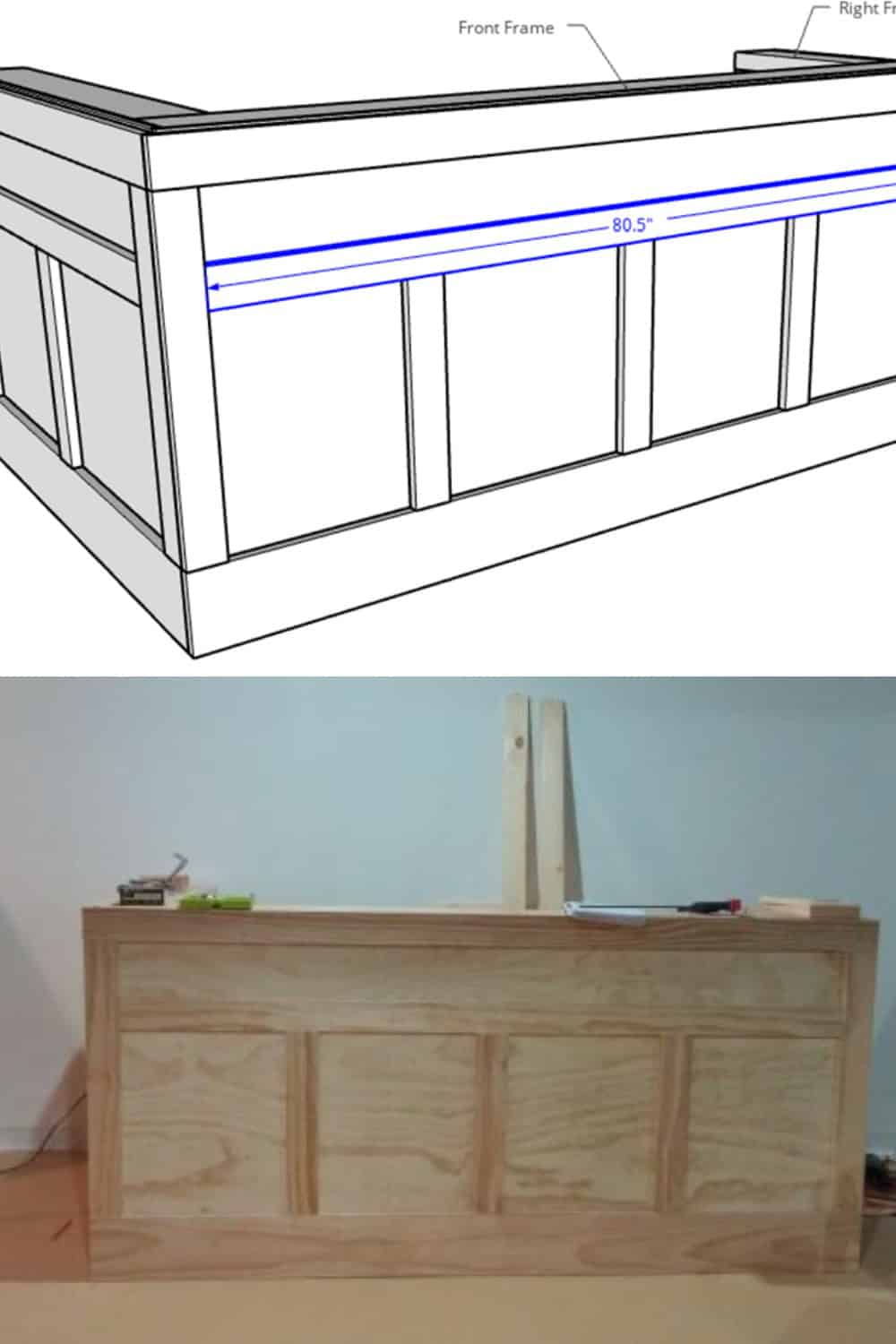

Step 5: Add Molding

Use wood glue and finish nails to attach 1x8s and 1x4s in your preferred design. Example molding cut list:

• 2 – 1×8 @ 8′
• 6 – 1×4 @ 8′
• 1 – 1×4 @ 6′

Install horizontal and vertical molding based on stool spacing and desired pattern. Don’t forget to predrill to avoid cracking.

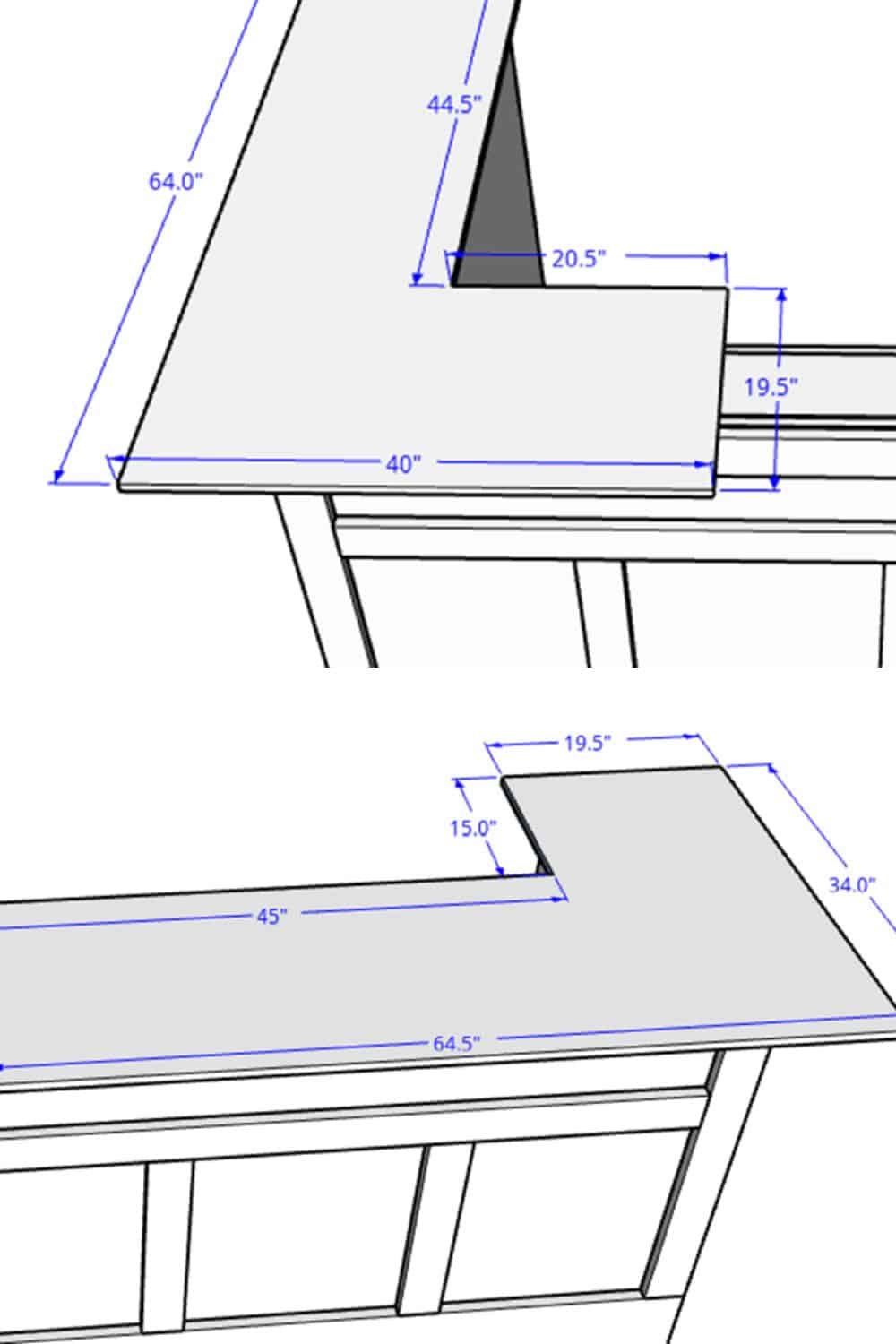

Step 6: Build the Bar Top

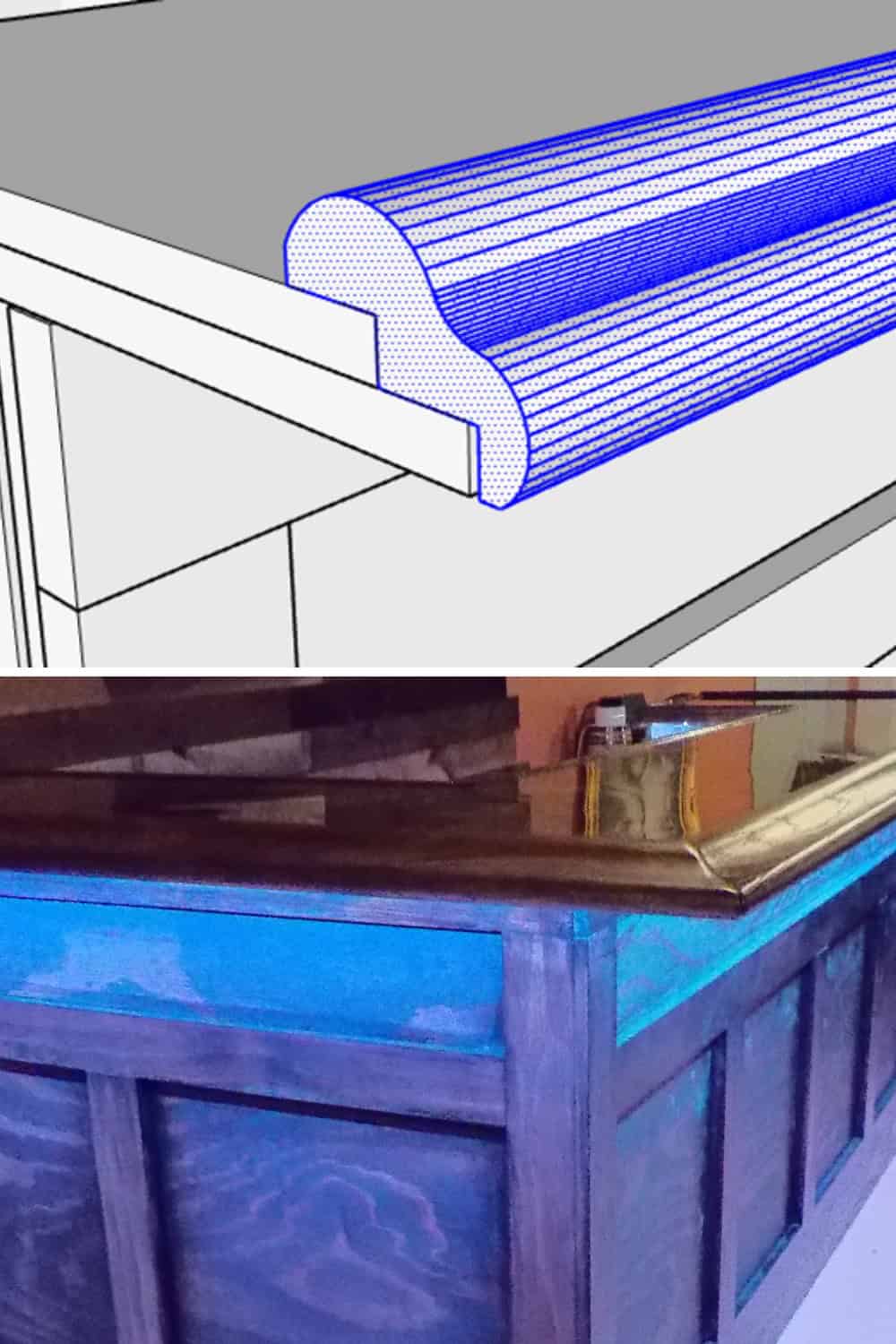

The bar top uses two layers of plywood. The base layer supports the structure; the second creates a lip for the Chicago bar rail (1-1/8″ x 4-1/2″). Attach with wood glue and predrilled screws.

Cutting the Rail:Use a jig to match the rail’s angle. If joints aren’t perfect, fill gaps with wood putty and sand smooth before staining.

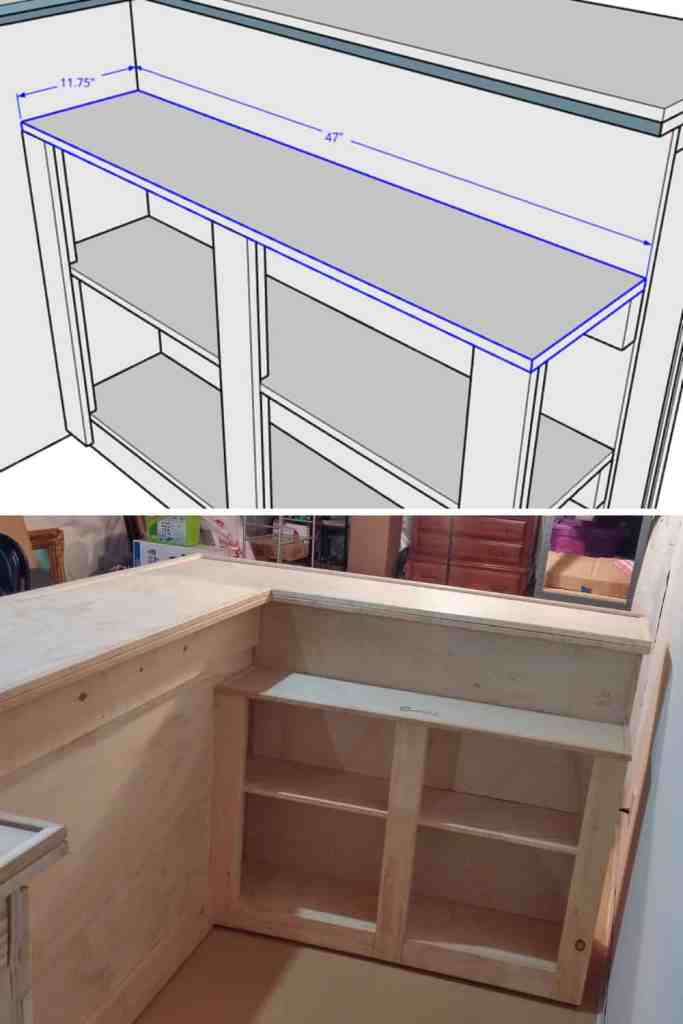

Step 7: Build the Bar Shelves

Use 2x4s for the base frame and ¾” pine plywood for shelves. Support each shelf with 1x4s in the front and plywood in the back. Use glue and finish nails to secure everything cleanly.

Tip: Sandwich 1x4s together to create hidden support brackets while keeping a polished appearance.

Step 8: Finishing Touches

Add trim to cover plywood edges. Apply stain and protect the surface with epoxy resin to prevent bubbles and seal the top.

Flooring Tip: If you install flooring after the bar, use quarter round to conceal any gaps at the base.

Final Thoughts:

If you’ve never built anything, this project is completely doable with patience and the right tools. I had zero experience—if I can build a bar, so can you.
