Note

Since the PSRP was updated to v6, it has been reported that the PSRP uses additional control packets that the virtual driver (ViGEmBus) cannot handle. For this reason, XI2DS may not work properly until the virtual driver is improved.

PSRP가 v6로 업데이트된 이후, PSRP에서 가상 드라이버(ViGEmBus)가 처리할 수 없는 추가 제어 패킷을 사용하는 것으로 보고되었습니다. 그렇기 때문에 가상 드라이버 개선전까지 XI2DS는 정상적으로 작동하지 않을 수 있습니다.

XInput to Dualshock 4 (XI2DS)

The XI2DS is designed to run and control Play Station Remote Play(PSRP) using Xbox(or XInput) controllers(XC) instead of DualShock4(DS4) controllers on Windows. Although it is considered to be able to recognize and map up to 4 controllers, PSRP only accepts one controller input, so only the first connected controller can be recognized.

Unfortunately, for some unknown reason, the touchpad press may not work in some games.

It was developed for personal use, so I haven't been able to test many cases. After hundreds of hours of play, no major problems were found, but if find problems, I will try to fix bugs.

Requirements for Running

• .NET 5.0 runtime or Higher (https://dotnet.microsoft.com/download/dotnet/5.0)
• Windows 10 or Higher
• PS Remote Play PC (PS4/PS5)
• ViGEmBus 1.17.333 (https://github.com/ViGEm/ViGEmBus/releases/tag/setup-v1.17.333)

Features

Map XInput to Dualshock 4

XC and DS4 have near similar function buttons (e.g. D-Pads, start(option), analog sticks, bumpers, triggers and face buttons) and their buttons can be mapped directly. However SHARE, PS Home and Touchpad Press buttons of DS4 are mapped by XC's button combinations.

XC's select(or View) button is not mapped and used only for combinations.

Combinations	DS4 Mapping
Select + Left Bumper	Share
Select + Right Bumper	Touchpad Press
Select + Start	PS Home

Support Force Feedback

If play a game that supports force feedback, XC can be vibrated.

Indicate XC Battery(or Connection) Status

Display XC's battery level(wireless only) or wired status. Additionally, The battery level is not detailed, it will be displayed as mid for most of time. If indicate low, need to charging or replacing. And if connect a controller, may not diaplay status immediately. When any buttons are pressed at least once, it will be displayed.

How to use

It is very simple to use!

1. Download and install ViGEm bus driver (https://github.com/ViGEm/ViGEmBus/releases)

2. Download and excute XI2DS

3. Connect a controller

4. Click 'DS4 Connect' Button

5. Play

When click close button on application, go to tray without termination. If want termination completely, use Exit on menu.

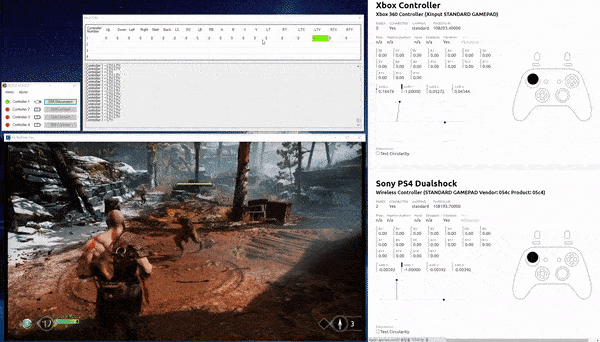

Demo

https://youtu.be/bRIGUEyhO0w

Note: You can check controller state on https://gamepad-tester.com/
