1/2.5" SOI K03 5MP FH8538M AHD TVI CVI Analog 4 in 1 CCTV security Camera board

Product category:

Camera Board

Sensor: K03 SKU: HD564B-B0 Video Coding: AHD, Analog/CVBS, CVI, TVIResolution: 5MPPrice: $9.20

Quantity	Price
1 - 9	$9.20
10 - Unlimited	$8.20

Quantity

full product footer

Description

Technical Characteristics:

• SOI K03 5MP HD image sensor, with high definition 5MP AHD/TVI; 4MPCVI; CVBS 960H output, effective resolution is up to 2704H * 1950V

• OSD menu supports 2 different languages with white balance, mirror, digital noise reduction function

• Adopt Fulhan FH8538M DSP, with OSD function (color / white-black, PAL / NTSC)

• Support dual filters switch, day-night effect is distinct, various day-night modes can be switched by OSD menu

• Support UTC, mirror, flip

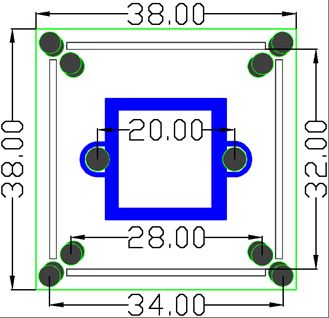

• Power (600W) Video (2KV) dual-lightning protection design, OSP antioxidant PCB, size 32 * 38 dual-border.

Product parameters
Image Sensor	1/2.5" SOI K03
Effective Pixels	2704(H) * 1950(V)
Effective resolution	5MP
Signal system	PAL/NTSC (Switched by OSD)
Day-night mode	External control(default) / Auto / Color / White & black (OSD switch)
S/N ratio	≥50dB
Minimum illuminaiton	0.2LUX
BLC	AUTO
(AES) Auto electronic shutter	AUTO / 1/50(1/60)-1/50,000sec
(AWB)Auto white balance	AUTO
IR control voltage input	OFF(DC 0V) / ON(DC 3-8V)
OSD language	English/ Simplified Chinese
Video output	AHD/TVI/CVI/CVBS
Video record occupation	1minute about 35.2MB (3.6mm lens)
Power consumption	DC12V / 69mA ± 6mA (wide voltage 9V-18V)
Working temperature	-30°C to 70°C

OSD Function description ：

• There're two methods to switch AHD / CVBS, OSD switching or [AHD / CVBS] pin short to GND switching, The default is OSD switching, short circuit to ground switching is in non-functional status.

• When Burning A / C program, [AHD / CVBS] pin short circuit to GND, the output the output is analog CVBS. When burning this grogram, OSD shortcut switch function is non-functional.

• In product wiring diagram, when [AHD / CVBS] pin is without any connection, the output is defaulted AHD.

• OSD switching and [AHD / CVBS] pin short-circuit switching are two different programs, they can not be used in the same time.

Pin definition:

OSD Menu Port

D Down (Orange)

U Up (Gray)

E Enter (Purple)

R Right (Green)

L Left (White)

G GND (Brown)

M1 M2 Can set to Mode switch or Alarm Output

Power video port

V Yellow

-/G Ground

+ Power+

CDS LED board photoresist

ICR IR-CUT dual filter switch
