You may not have heard the word alternator but you might be aware of the word alternating current or AC. Alternator allows you to convert mechanical energy into electrical energy especially in motor vehicles. An alternator wiring diagram will help you get the basic know-how of the circuit and how the components are linked together in a circuit. So, without further ado, let's dive in. Do you want to know more about what is alternator wiring diagram and how to make your own alternator wiring diagram? After reading this article, you can do this with the help of EdrawMax, an All-in-One tool.

In this article

1. What is an Alternator?
2. How does the Alternator Work?
3. Alternator Wiring Diagrams
4. Use EdrawMax for Wiring Diagram Creation

What is an Alternator?

An alternator is a maintenance-free yet the most important unit of the car's engine. It generates electricity and functions to provide electrical supply to cars and recharges the battery. The alternator works by converting mechanical energy into electrical energy from alternating current to the direct current.

The primary function of an alternator is to work jointly with the battery to supply energy to the electrical components, i.e., lights, fan, windshield wipers, etc. It changes the alternating current into a direct current and regulates the voltage to meet the required minimum power for each unit.

The alternator comprises a cooling fan, voltage regulator, rotor, stator, diode bridge rectifier, slip rings, slip ring end bearings, carbon brushes, pulley. The rotor and stator are the central units for electricity generation, while the rectifier helps in converting AC to DC. All the components work jointly to monitor and regulate the power to match the energy needs of different components of the car's engine.

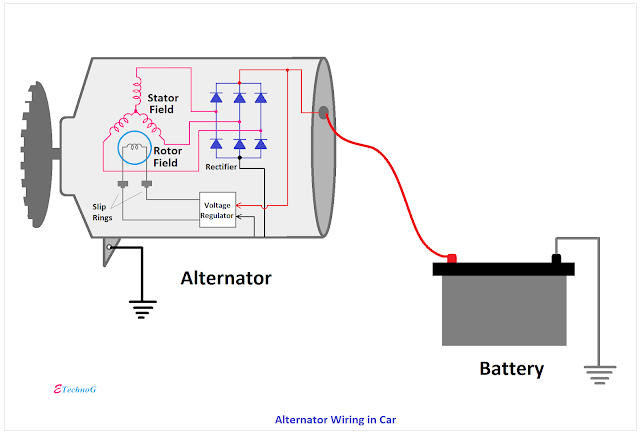

Image Source: Engineering Learn

How Does the Alternator Work?

The functioning of an alternator is straightforward. A serpentine belt that rests on a pulley is attached with an alternator. When the engine is ignited, the pulley moves and rotates the rotor shafts attached to the alternator. The rotor is an electromagnet with two revolving metal slip rings and carbon brushes attached to its shaft. Due to the rotation, a small amount of electricity is supplied to the rotor, which is conducted to the stator.

The magnets on the rotor are placed in such a way that they pass over the copper wire loops in the stator. This creates a magnetic field around the coils. When the rotor spins, the magnetic field is disturbed, and this, as a result, generates electricity.

However, the current generated is AC has to be converted to DC before use; therefore, it is channeled to the alternator's diode rectifier. The rectifier changes the two-way current into a one-way flow-direct current. The voltage then passes on to the voltage regulator that steps up or steps down the voltage to match the needs of different units of the car.

Tips: Wiring Connections

Since an alternator is connected to so many components, it exhibits a complex wiring system. The main wirings include the exciter wire, positive and negative cables. Exciter wire is connected to the L terminal of an alternator and is used to turn on the voltage regulator. Excitor wire is needed to generate the voltage required for the alternator to start running.

The positive and negative cables are small and connected to the respective terminals of the battery. The alternator also shows a connection with the ‘battery charging wire.’ It only charges the battery and does not supply energy to any other unit. The alternator also has an ignition input wire that is connected from the alternator to the key switch. The ignition wire turns on the voltage regulator.

Free Download Free Download Free Download Try Online Free Try the app & get 500 free AI tokens Get 500 AI tokens free on the app

Alternator Wiring Diagrams

Below given are some alternator wiring diagrams that are used for different purposes. Let's have a look at their connections.

3 Wire Alternator Wiring Diagram

Click to check the full-size image and edit the template 3 Wire Alternator Wiring Diagram

This is a three-wire alternating wiring diagram showing the connections between the different components of a circuit. The circuit comprises three main wires: battery positive cable, voltage sensing wire, and ignition wire. The ignition input wire is attached to the engine. It conducts electricity from the engine to the alternator while the voltage-detecting cable senses the voltage and is attached to the rectifier.

Such alternators are multi-purposed and have built-in voltage rectifiers for power sensing. Unlike the one-wire alternators, they can generate and rectify electricity in one circuit. Using a three-wire alternator ensures regulated voltage for all components.

Free Download Free Download Free Download Try Online Free Try the app & get 500 free AI tokens Get 500 AI tokens free on the app

External Electromechanical Voltage Regulator

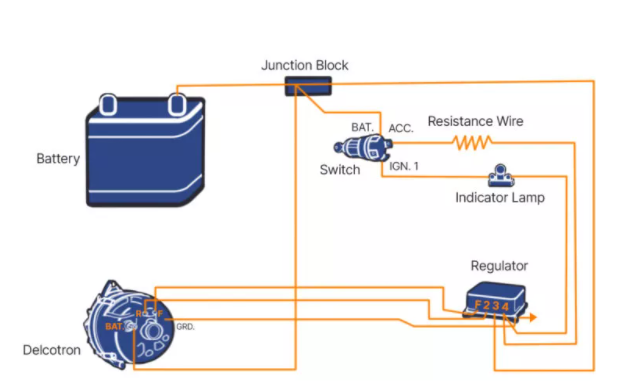

Click to check the full-size image and edit the template PCM Controlled Wiring Diagram
