ASRock H370M-HDV

Those were the good old days! This product is no longer on sale ASRock H370M-HDV

ASRock H370M-HDV Micro-ATX Socket 1151 Intel H370 Express motherboard - 2x DDR4 - SATA 6Gb/s - USB 3.0 - PCI-Express 3.0 16x

Pictures may differ from actual products

ASRock H370M-HDV

Micro-ATX Socket 1151 Intel H370 Express motherboard - 2x DDR4 - SATA 6Gb/s - USB 3.0 - PCI-Express 3.0 16x

Last price 59€95 Holy Moly! Equivalent products suggestions:

ASRock A520M-HVS 62€95

ASRock B450M-HDV R4.0 59€95

ASRock A520M-HDV 64€95

Gigabyte H510M H V2 69€95

MSI PRO H610M-E DDR4 69€95

Gigabyte A520M DS3H V2 75€95

ASRock H510M-HDV/M.2 SE 74€95

ASRock H610M-HVS/M.2 R2.0 77€95

ASRock B450M Pro4 R2.0 79€95

ASRock A520M Phantom Gaming 4 79€95

Overview
Specifications
Customer reviews

Overview

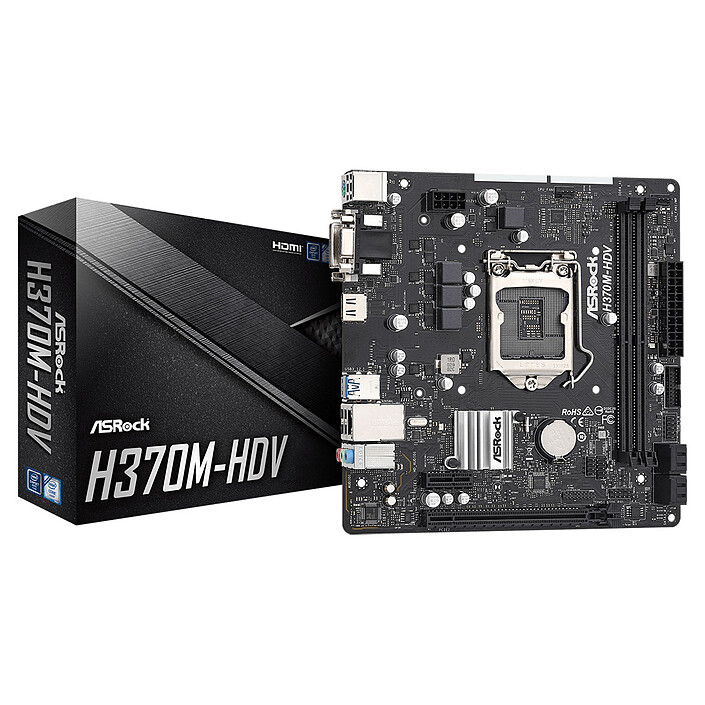

ASRock H370M-HDV : The essential for your PC

The ASRock H370M-HDV motherboard is designed to accommodate 8th and 9th generation Intel Core processors. Based on the Intel H370 Express chipset, it will serve as the base for your gaming or multimedia PC equipped with a high-performance processor and featuring an Asrock Super Alloy finish. It supports PCI-Express 3.0 16x graphics cards, SATA 6 Gbps and M.2 PCI NVMe drives, DDR4 RAM and USB 3.0 devices.

The advantages of the ASRock H370m-HDV :

The HDV motherboards from ASRock are especially designed for office and multimedia use. The low price of this range is made without concessions on the connectors and technologies embedded on the motherboards. They are dedicated to users who want to have an affordable component without sacrificing quality.

Support for 8th and 9th generation Intel Core socket 1151 processors
Supports DDR4 RAM - up to 64 GB
PCI-Express 3.0 16x port
4 SATA 6 Gbps ports
USB 3.0 ports
3 video outputs : HDMI, DVI-D and VGA
Audio 7.1 Channel HD (Realtek Audio Codec 887/897)

Intel H370 Express Chipset

The Intel H370 Express Chipset is packed with advanced features to help you get the most out of your Intel Coffee Lake platform. Affordable and powerful, it's designed for users looking for versatility and efficiency in all areas. Whether it's a gaming PC, a workstation or an advanced multimedia system, the Intel H370 Express chipset is a great value for money. It is also less expensive and more accessible than the Intel Z370 Express Chipset, which is more suitable for high-end machines.

Information provided by our tech department Masterboards based on Intel Sries 300 chipsets (Intel Z370/H370/B360 Express ... etc.) are not compatible with 6th and 7th generation Intel Core processors. If in doubt, refer to the chipset compatibility statements in the datasheets of the processors sold on the site. Specifications

Select your criteria

General information	Product name	ASRock H370M-HDV
	Brand	ASRock ASRock
	Model	H370M-HDV
Processor	Processor support	Intel 1151
Processor	Number of CPUs supported	1
Chipset	Chipset	Intel H370 Express
Memory	Memory format	2 X DIMM 288-pin (DDR4)
	Memory Frequency(ies)	DDR4 2133 MHz
		DDR4 2400 MHz
		DDR4 2666 MHz
	Memory type	DDR4
	Memory technology	Dual Channel
	Maximum RAM capacity per slot	32 GB
	Maximum RAM capacity	64 GB
Graphic	Integrated graphics controller	No
Graphic	Compatible graphics core integrated in the CPU	Yes
Expansion slots	Graphic connector(s)	1 X PCI Express 3.0 x16
	Number and Type of slots	1 X PCI Express 3.0 x1
	Multi-GPU type	None
Audio	Audio Chipset	Realtek ALC887
Audio	Number of audio channels	8
Network	Number of ports/Ethernet controler	1 X Realtek RTL8111H
	Network standard(s)	10/100/1000 Mbps
	Wi-Fi	No
Storage	RAID supported	Yes
	Hard drives connectors	4 X Serial ATA 6Gb/s (SATA Revision 3)
	Supported RAID Modes	10
		5
		1
		0

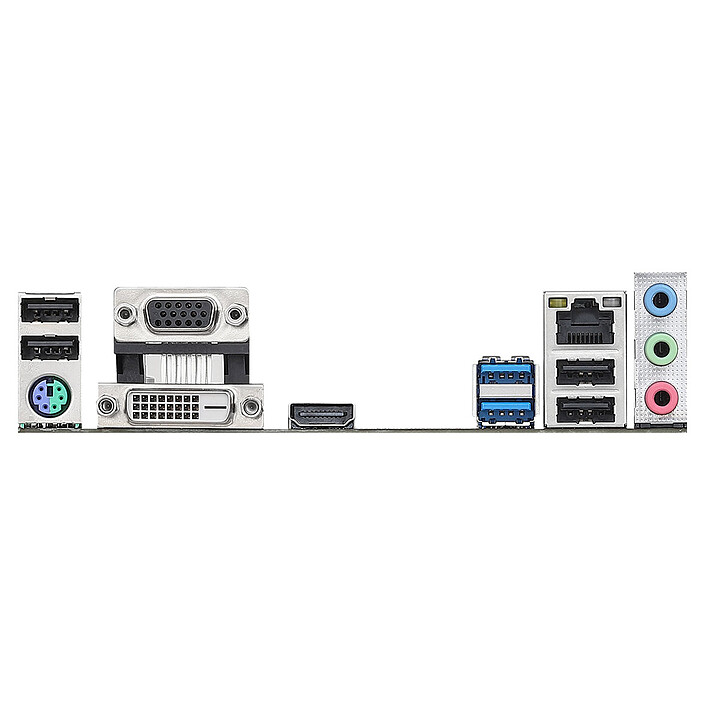

Connectivity	Rear panel connectors	3 X 3.5mm Jack Female Stereo
		1 X MiniDin 6 Female (PS/2)
		1 X RJ45 Female
		4 X USB 2.0
		2 X USB 3.0
		1 X DVI Female
		1 X HDMI Female
		1 X VGA (D-sub 15 Female)
	Additional connectors	TPM
		Front panel audio
		1 X +12V (Power supply P8)
		1 X ATX 24 Pin
		2 X Internal USB 2.0
		2 X Internal USB 3.0
Physical characteristics	Motherboard format	Micro ATX
	Length	191 mm
	Width	188 mm
Equipment	Advanced overclocking features	No
	Use	Office
		Gamer
		Multimedia
	LED	No
Warranties	Commercial warranty	Seller 3 years
Warranties	Legal warranty	See terms & conditions

See all ASRock products

See ASRock Motherboard section

Product referenced on 18 Jan 2021

Customer reviews Global rating 8/10 based on 4 reviews Editorial and moderation guide

75% 3 reviews
0%
0%
0%
25% 1 review

by seecker Posted on 6 Sep 2024 Bought on 17 Oct 2022 from LDLC Number of reviews: 26 Average rating: 8
Works very well for a NAS

I put in an i3 8100 with 12Gb of RAM and that made a little NAS server for the house. 6x6Gb in Raid Z2 in cold storage. 1 year later, still there.
Review automatically translated +
by RomualdW Posted on 22 Mar 2023 Bought on 18 Jan 2023 from LDLC Number of reviews: 1 Average rating: 2
Disappointed!!!

1st card with lots of bent pins... no after sales service, it's my fault according to the after sales service. 2nd card bought: CPU out of order so never used...No return possible... In short, 120€ in the bin!
Review automatically translated +
by SergeL Posted on 14 Dec 2022 Bought on 15 Nov 2022 from LDLC Number of reviews: 1 Average rating: 10
Motherboard

I was able to get a new card that was the same as the one in the computer and it started up fine without restarting Windows 11.
Review automatically translated +
by RemiP Posted on 6 Dec 2022 Bought on 7 Nov 2022 from LDLC Number of reviews: 3 Average rating: 9
Compliant

Processor used: Intel Core i5-9400F Motherboard format: Micro-Atx I appreciate the compatibility with my 2666 mhz RAM modules
Review automatically translated +
