Barksdale Products C9612-2 Visual Indicating Sealed Piston Switch Single Setpoint 125-1500 PSI

Barksdale Products C9612-2 Visual Indicating Sealed Piston Switch Single Setpoint 125-1500 PSI SKU: C9612-2 Brand: Rating:

Quantity	Price	Stock
Usually Ships 4-5 Weeks Usually Ships 4-5 Weeks	$447.30 /ea	Usually Ships 4-5 Weeks

Add to Cart Add to Wishlist Add to Cart Add to Wishlist 0 $0.00 0 $0.00 0 C9612-2

• Description
• Specifications
• Reviews
• Q&A

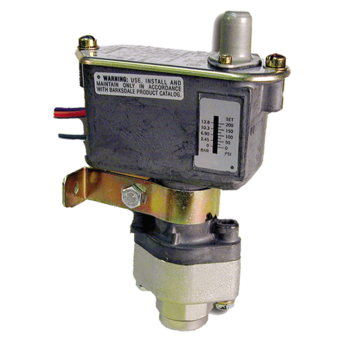

Barksdale Visual Indicating Sealed Piston Switch The C9612-2 is a single setpoint visual indicating sealed piston switch with an adjustable range from 125-1360 PSI decreasing and 135-1500 PSI increasing. Barksdale's Series C9612 Sealed Piston Pressure Switches offer extremely long life in a robust package, making them the ideal solution to your industrial pressure control needs. Sealed Piston switches are ideal for applications demanding rapid cycling. Available in various pressure ranges from 15 to 3000 psi, sealed piston switches are suitable for use in industrial applications such as hydraulic presses, compactors, and machine tools. All models feature a durable, anodized aluminum enclosure with a tamper proof adjustment screw cover and an integrated 27/32" hole for 1/2" NPT conduit connector, and are rated to NEMA 3 as a standard. Optional terminal boxes allow for ease of electrical connection, and switches are available in both single and dual circuit configurations. For applications requiring a highly accurate switch in a durable package, Barksdale's Series C9612 Sealed Piston Pressure Switches are the ideal choice Features:

• Extremely long life
• Weather resistant housing
• Easy setpoint adjustment
• High reliability
• High proof pressure
• Single & dual setpoint

Operating Temperature Range	-20° to +165°F (-29° to +74°C)
Electrical Connection	18" free leads (terminal block on "T" model)
Pressure Connection	1/4" - 18 NPT Female
Rating	10 amps @ 125, 250, or 480 VAC; 0.03 amps @ 250 VDC, Class B limit switch
Switch Type	Single pole double throw (SPDT) snap action; single or dual circuit
Accuracy	±2% of the adjustable range
Approvals	UL File E42816 Class 3231 02, File No. 022355-0-000
