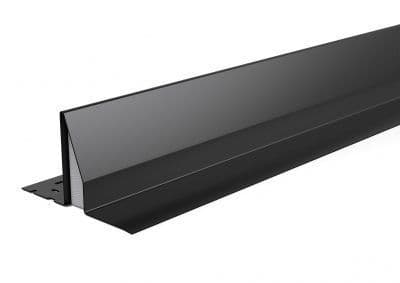

Catnic CG50/100 Standard Duty Cavity Wall Lintel

Trang chủ » Cg50100 » Catnic CG50/100 Standard Duty Cavity Wall Lintel

Có thể bạn quan tâm

50-65mm Cavity

Home / Lintels / Catnic Lintels / Cavity Wall / 100-115mm Standard Inner Leaf / 50-65mm Cavity / Catnic CG50/100 Standard Duty Cavity Wall Lintel Catnic CG50/100 Standard Duty Cavity Wall Lintel
  • Catnic CG50/100 Standard Duty Cavity Wall Lintel
  • Catnic CG50/100 Standard Duty Cavity Wall Lintel
  • Catnic CG50/100 Standard Duty Cavity Wall Lintel
Catnic CG50/100 Standard Duty Cavity Wall Lintel £51.34 £61.61 (inc. VAT) Length: 900mm 1200mm 1500mm 1800mm 2100mm 2400mm 2700mm 3000mm 3300mm 3600mm ​ ​ Add to your Wish List FacebookTwitterInstagramLinkedIn Description

Product Benefits

  • Duplex Corrosion Protection
  • Built-in Plaster Key
  • Built-in DPC
  • Integral Insulation
  • Cougar Open Back

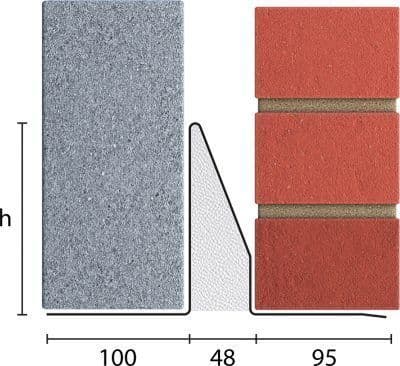

Standard Lengths (mm)SWL (kN) 1:1/3:1Weight (kg/m)Nominal height 'h' (mm)
900 - 1500155.8140
1800187.6140
2100208.0160
2400228.7180
27002610.0220
3000 - 36002612.5220
The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 150mm end bearings.For the product data sheet click here Reviews product review overlay image

Customer reviews

No reviews left yet Write A Review Sort byMost RecentTop Rated No reviews have been left for this product, be the first to leave a review Attributes
  • DeliveryTime: Approximately 15-20 working days
  • Brand: Catnic
  • Product Code: CG50/100
  • Weight: 249.99kg
