A 2-component manual 50mL dispenser for cartridges.

CBM 25 2-component manual caulking gun

Specifications:

  • Weight: 0.43kg / 0.9lbs
  • Frame Length: 96mm / 3.8inch
  • Maximum Thrust: 2.5kN
  • Handle Material: Epoxy Coated Steel
  • Frame Material: Glass Fiber Reinforced Nylon
  • Tool Component Approvals: REACH
  • Cartridge Capacity: 50mL (1.7oz)
  • Cartridge Ratio: 1:1
  • Mechanical Advantage Ratio: 12:1
  • Viscosity: Medium
  • Standard Color: Black / Blue
  • Customized versions: Yes

Customized versions on demand. Make an Enquiry

Where to buy

Leave this field blank

Features

  • Easy loading breach
  • Compact design
  • Warranty up to 2 years*

*Effective 1st July 2018

Benefits

  • Full cartridge support
  • Light and maneuverable
  • Gives you long worry free performance

Applications

Bonding
Sealing

Compatible cartridges

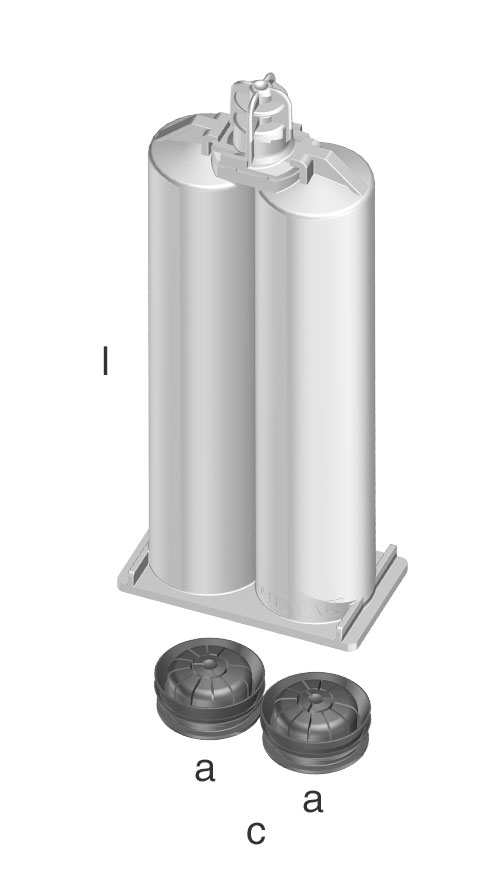

MIXPAC A System: 50mL 1:1

mm inch
l 103mm 4.06inch
a 21.7mm 0.85inch
c 43.4mm 1.71inch

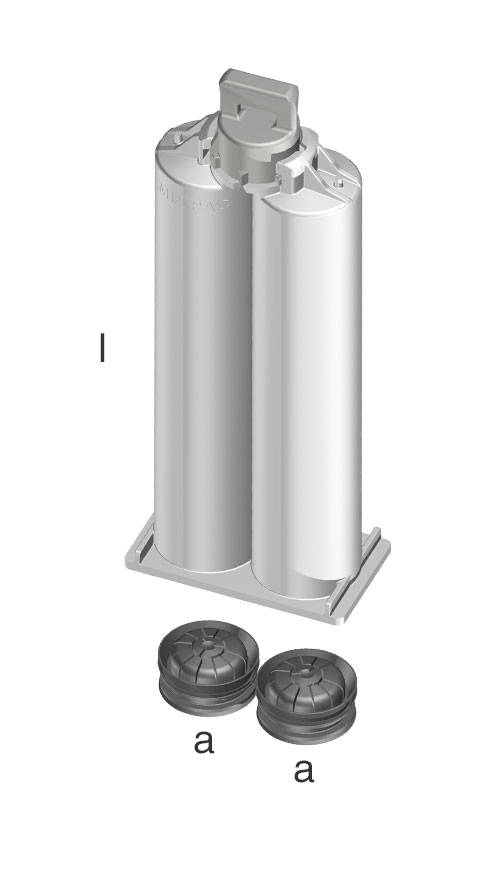

MIXPAC B-System: 50mL 1:1

mm inch
l 107mm 4.21inch
a 21.4mm 0.84inch
c 43.4mm 1.71inch

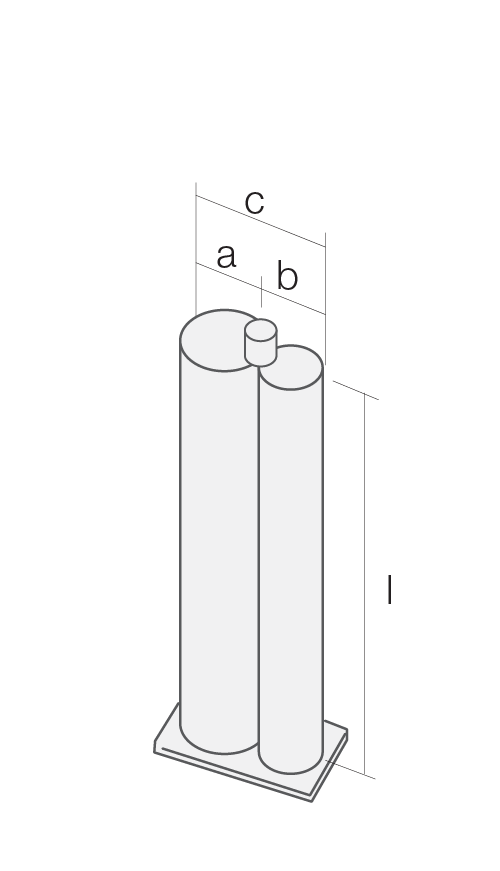

Compatible: 50mL 1:1

mm inch
l 99.7mm 3.93inch
a 21mm 0.83inch
c 46mm 1.81inch
