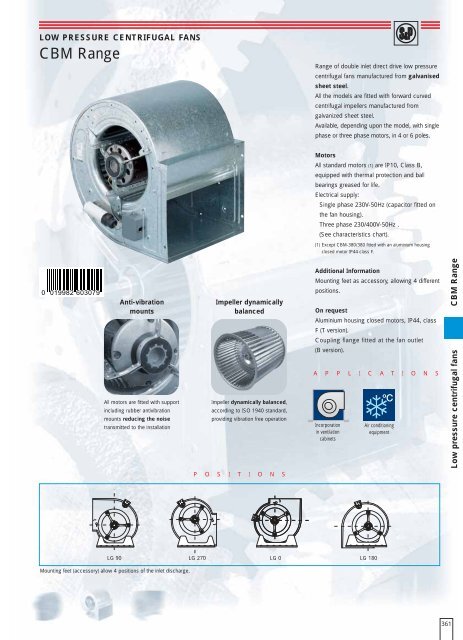

LOW PRESSURE CENTRIFUGAL FANS <strong>CBM</strong> <strong>Range</strong> <strong>Range</strong> of double inlet direct drive low pressure centrifugal fans manufactured from galvanised sheet steel. All the models are fitted with forward curved centrifugal impellers manufactured from galvanized sheet steel. Available, depending upon the model, with single phase or three phase motors, in 4 or 6 poles. Motors All standard motors (1) are IP10, Class B, equipped with thermal protection and ball bearings greased for life. Electrical supply: Single phase 230V-50Hz (capacitor fitted on the fan housing). Three phase 230/400V-50Hz . (See characteristics chart). (1) Except <strong>CBM</strong>-380/380 fitted with an aluminium housing closed motor IP44 class F. 0 019982 603079 Anti-vibration mounts All motors are fitted with support including rubber antivibration mounts reducing the noise transmitted to the installation Impeller dynamically balanced Impeller dynamically balanced, according to ISO 1940 standard, providing vibration free operation Additional Information Mounting feet as accessory, allowing 4 different positions. On request Aluminium housing closed motors, IP44, class F (T version). Coupling flange fitted at the fan outlet (B version). A P P L I C A T I O N S Incorporation in ventilation cabinets Air conditioning equipment Low pressure centrifugal fans <strong>CBM</strong> <strong>Range</strong> P O S I T I O N S LG 90 LG 270 LG 0 LG 180 Mounting feet (accessory) allow 4 positions of the inlet discharge. 361

• Page 2 and 3: Technical characteristics Before in
• Page 4 and 5: Mounting accessories Outlet flange
• Page 6 and 7: Performance curves - Q = Air volume

×
