2003 Citroën C5 Wheel fitment guide Find out what wheels and tires fit 2003 Citroën C5 Please select the 2003 Citroën C5 vehicle modifications below and check tables to get wheel size, tire size, bolt pattern (PCD), rim offset and other wheel fitment parameters. If necessary, you can filter them by sales distribution region.

Citroën C5 I (DC/DE) [2000 .. 2004]

Generation Filter by region: Europe EUDM Russia+ RUS

Liftback

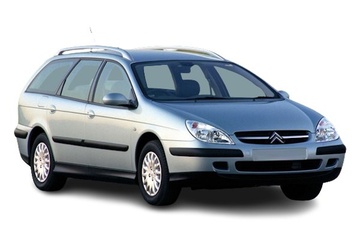

Estate, 5d

Previous Next

2003 Citroën C5 I (DC/DE) [2000 .. 2004] - Modifications

Diesel:

2.0HDi I4 107hp 2.0HDi I4 89hp 2.2HDi I4 131hp

Petrol:

1.8i I4 114hp 2.0HPi I4 138hp 2.0i I4 134hp 3.0i V6 204hp

Citroën C5 I (DC/DE) [2000 .. 2004] 1.8i

114 hp EUDM

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe
• Power: 114 hp | 85 kW | 116 PS
• Engine: , Petrol

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 195/65R15 95H	6Jx15 ET18	16 - 20	107 4.21	8.9 19.6	2.1 30	OE
205/65R15 94H	6.5Jx15 ET26	24 - 28	121 4.76	9.6 21.1	2.1 30
205/55R16 91H	6.5Jx16 ET26	121 4.76	9.1 20.0	2.3 33
215/55R16 93H	6.5Jx16 ET26	24 - 28	121 4.76	9.7 21.4	2.3 33

Citroën C5 I (DC/DE) [2000 .. 2004] 2.0HDi

107 hp EUDM RUS

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe, Russia+
• Power: 107 hp | 80 kW | 109 PS
• Engine: 2.0 L, , Diesel

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 195/65R15 95H	6Jx15 ET18	16 - 20	107 4.21	8.9 19.6	2.1 30	OE
205/65R15 94H	6.5Jx15 ET26	121 4.76	9.6 21.1	2.1 30
205/55R16 91H	6.5Jx16 ET26	121 4.76	9.1 20.0	2.3 33
215/55R16 93H	6.5Jx16 ET26	24 - 28	121 4.76	9.7 21.4	2.3 33

Citroën C5 I (DC/DE) [2000 .. 2004] 2.0HDi

89 hp EUDM

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe
• Power: 89 hp | 66 kW | 90 PS
• Engine: , Diesel

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 95H	16 - 20	107 4.21	8.9 19.6	2.1 30	OE
94H	121 4.76	9.6 21.1	2.1 30
91H	121 4.76	9.1 20.0	2.3 33
93H	24 - 28	121 4.76	9.7 21.4	2.3 33

Citroën C5 I (DC/DE) [2000 .. 2004] 2.0HPi

138 hp EUDM

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe
• Power: 138 hp | 103 kW | 140 PS
• Engine: , Petrol

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 95H	16 - 20	107 4.21	8.9 19.6	2.1 30	OE
91H	121 4.76	9.1 20.0	2.3 33
93H	24 - 28	121 4.76	9.7 21.4	2.3 33
92V	127 5.00	9.8 21.6	2.3 33

Citroën C5 I (DC/DE) [2000 .. 2004] 2.0i

134 hp EUDM RUS

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe, Russia+
• Power: 134 hp | 100 kW | 136 PS
• Engine: 2.0 L, , Petrol

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 95H	16 - 20	107 4.21	8.9 19.6	2.1 30	OE
91H	121 4.76	9.1 20.0	2.3 33
93H	24 - 28	121 4.76	9.7 21.4	2.3 33
92V	23 - 27	127 5.00	9.8 21.6	2.3 33

Citroën C5 I (DC/DE) [2000 .. 2004] 2.2HDi

131 hp EUDM RUS

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe, Russia+
• Power: 131 hp | 98 kW | 133 PS
• Engine: 2.2 L, , Diesel

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 98H	24 - 28	121 4.76	10.6 23.4	2.3 33	OE
93H	24 - 28	121 4.76	9.7 21.4	2.3 33
95H	127 5.00	10.3 22.7	2.3 33
96V	128 5.04	10.8 23.9	2.5 36

Citroën C5 I (DC/DE) [2000 .. 2004] 3.0i

204 hp EUDM RUS

• Generation: I (DC/DE) [2000 .. 2004] [EUDM]
• Production: [2000 .. 2004]
• Sales regions: Europe, Russia+
• Power: 204 hp | 152 kW | 207 PS
• Engine: 3.0 L, , Petrol

• Center Bore / Hub Bore:
• Bolt Pattern (PCD): ()
• Wheel Fasteners: Lug bolts
• Thread Size:
• Wheel Tightening Torque:

Tire	Rim	Offset Range mm	Backspacing mm inches	Tire Weight kg lb	bar psi
OE 93H	24 - 28	121 4.76	9.7 21.4	2.3 33	OE
92V	127 5.00	9.8 21.6	2.3 33
94V	130 5.12	9.7 21.5	2.5 36
95W	132 5.20	10.2 22.5	2.5 36

See Citroën C5 wheel fitment information for other model years:

2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008 2007 2006 2005 2004 2003 2002 2001 2000 Page update: 18/02/2021 13:25 Have a question about 2003 Citroën C5 wheel specs? Found a bug? Share your knowledge! Wheel Size Calculator The most comprehensive tire comparison tool suitable for cars, SUVs Tire Glossary Tire terms you can see on this page Center Bore

The size of the hole in the center of a wheel is known as the center bore or centerbore.

Icons Meaning

- Recommended for winter - Run-flat tires - Link comes to the calculator page for comparison - Steel wheels OE - Original Equipment - Tire Pressure - Front axle - Rear axle

Offset

Offset is the distance in millimetres from the centre line of the wheel to the wheel’s mounting face. Given that the mounting face can be either in front of or behind the centreline, the offset can be either neutral, positive or negative.

PCD

The Pitch Circle Diameter (PCD) is the diameter of the circle which passes through the centre of all the studs, wheel bolts or wheel rim holes

Power

hp - Mechanical horsepower kW - Kilowatts PS - Metric horsepower

Backspacing

Wheel backspace is the distance from a wheel's mounting surface to the back edge of the wheel.

Pressure

Tire pressure is a vehicle's recommended cold tire inflation pressure. It is measured in bars or PSI (pounds per square inch).

Regions

A sales region is a global automotive region in which a vehicle was officially sold or is still being sold.

Rim

Ex.: 7J x 15 Rim width (inches) x rim diameter (inches)

Thread Size

ISO standard Ex.: M12 x 1.25 Nominal diameter (mm) x pitch (mm)

UN-series Ex.: 9/16" - 18 UNF Thread size (in) - thread pitch UNF - Unified National Fine Thread

Tire

Example: 215/55 R16 91 T

215 is the tire width in mm 55 is the ratio of profile height to width or simply 'profile'. With the same width, the larger this indicator, the higher the tire will be and vice versa 16 - diameter of the wheel (disk) in inches. (It is the diameter, not the radius!). This is the inner size of the tire or the outer size of the rim 91 - load index. This is the level of maximum permissible load on one wheel T - tire speed index

Weight Wheel Fasteners

The method of attaching a wheel to a hub: wheel nuts or wheel bolts

Wheel Tightening Torque

The torque value specified by the manufacturer for wheel bolts or wheel nuts, which is to be set when tightening on the torque tool (torque setting). A rotational force given in Newton metres (Nm) or foot-pounds (ft-lbs), wheel torque measures lug nut / bolts tightness

Ply Rating Ply rating denotes tire strength and load capacity, based on its layer count. Load Range Ply Rating Max. Load Pressure Original equipment (OE)

The tires included with a new vehicle when it is purchased. OE tires are specifically chosen by the vehicle manufacturer to make the most of the vehicle's performance characteristics.

Load Index / Speed Rating Load Index represents the maximum load a tire can carry, while Speed Rating indicates the maximum safe speed. Load Index Speed Rating Capacity Max Speed

Share your knowledge!

Report an error in the selected text Add your details and comments Other Go! × Thank you! Your information has been sent successfully. We will check it as soon as possible and update our database if necessary.

News

The Wheel Fitment Widget for Your Website

This widget connects your visitors to the world's largest fitment database — 199 makes, 53K+ modifications, 15 regions. Fully customizable to match your brand

Wheel-size.com to launch Wheel Fitment API Demo Portal

Check out how you can use our fitment data on your websites and apps. See the latest updates and learn more about the Wheel Fitment API!

Wheel-Size.com to launch Wheel Size App for iOS and Android platform

Our Wheel Size app is now available in App Store and Play Store! Wheel Fitment for any car, your search history, latest news about professional tire tests — all in one app for: iOS and Android

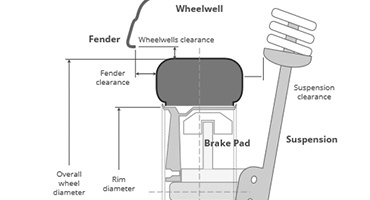

Best Wheel Calculator in the web
