| CN100 Antique Violin (more images) |  |
The CN100 is a Concert series solid body electric guitar model introduced by Ibanez for 1978. It was made in Japan by FujiGen.
The CN100 features a carved maple top with cream binding on an offset double-cutaway mahogany body bolted to a laminated maple neck with a 22-fret ebonized rosewood fingerboard with binding and pearloid dot position markers. Components include a pair of Ibanez Super 80 humbucking pickups with chrome covers mounted in black pickup rings with individual volume and tone controls, a Tune-o-matic style Gibraltar fixed bridge and slotted tailpiece with scalloped "cloud" ornament, Smooth Tuner II machine heads and rubberized Sure Grip knobs. The output is mounted on the side of the guitar.
The CN200 is a similar model with multibinding, block fretboard inlays and gold hardware.
The CN100 was discontinued in 1979 along with the entire short-lived Concert series.
Specifications[]
Related content: Concert series |
Specifications for CN100
| Model name: CN100 | | Year(s) offered: 1978–1979 | | Sold in: Worldwide | | Made in: Japan | | Finish(es): Antique Violin (AV) / Black (BK) / Brown Sunburst (BS) / Cherry Wine (CW) / Walnut (WN) | |
| Body | | Body type:Solid body | | Body material:Mahogany w/ carved maple top and cream binding | | Neck joint:Bolt-on | | Bridge:Gibraltar fixed | | Tailpiece:Gibraltar (slotted) w/ "cloud" ornament | | Knob style:Sure Grip (black) | | Hardware color:Chrome | | | Neck | | Neck type:Concert | | Neck material:3-piece rock maple | | Scale length:648mm/ 25½" | | Fingerboard material:Ebonized rosewood w/ binding | | Fingerboard inlays:Pearloid dot | | Frets:22 / large | | Nut:Bone | | Machine heads:Smooth Tuner II | | Factory tuning:1E,2B,3G,4D,5A,6E (E Std.) | | | Electronics | | Pickup configuration:HH | | Bridge pickup:Ibanez Super 80 (H) chrome cover | | Neck pickup:Ibanez Super 80 (H) chrome cover | | Controls:Master volume / master tone / 3-way toggle pickup selector | | Output jack:¼" mono (side mounted) | |
About this table
Images[]
Additional finishes/ details

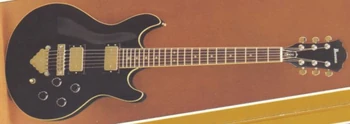

Black

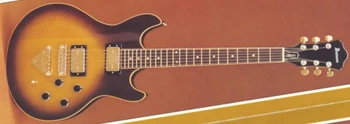

Brown Sunburst

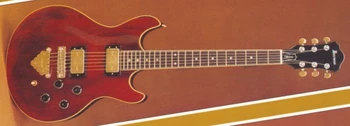

Chery Wine
Pickup switching
Control layout

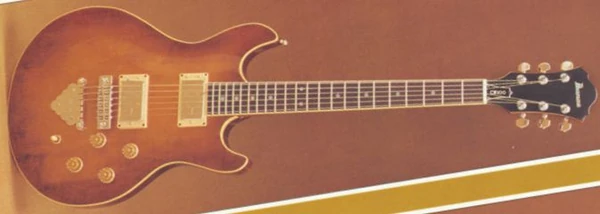

| Ibanez CN100AV ( Photo courtesy of Uchidaya ) | |
Sources[]
- 1978 electric guitar catalog (page 15)
- 1978 George Benson & Concert series guitar brochure (page 3)
- 1979 USA price list January (page 4)
- Concert series, Ibanez Vintage (Jim Donahue's site), archived June 2003
