Careers Cone Bottom Tanks - Flat Top Cone Bottom OverviewCone Bottom Tanks - Dome TopCone Bottom Tanks - Flat TopCone Bottom Stands Products > Liquid Storage & Containment > Cone Bottom > Cone Bottom Tanks - Flat Top Cone Bottom Tanks – Flat Top

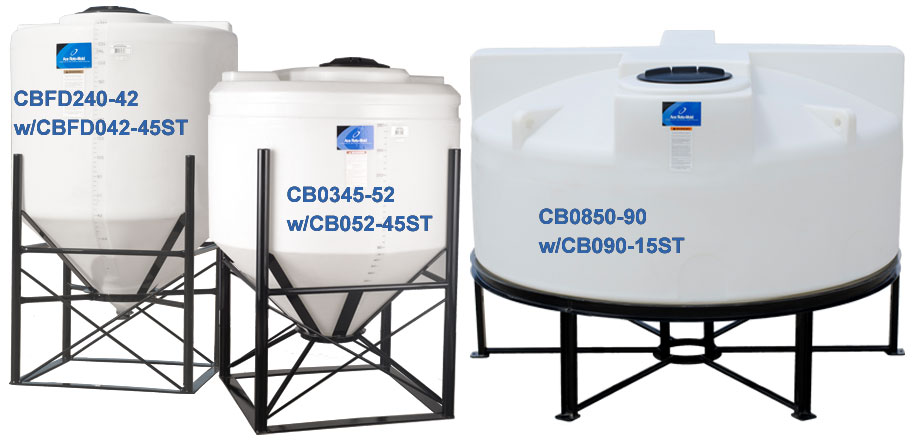

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount.  Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.

Part No.	Capacity	Weight	Dimensions	Overall Height	Lid	Fitting	Specific Gravity
CB0055-23†	55 Gallon – 15 deg	26	23 x 39	52″	8″	1 1/2″	2.0
CB0100-23	100 Gallon – 15 deg	36	23 x 65	78″	8″	1 1/2″	2.0
CB0145-36	145 Gallon – 15 deg	52	36 x 43	56″	8″	2″	2.0
CB0150-36	150 Gallon – 45 deg	63	36 x 51	63″	12″	2″	2.0
CB0200-36	200 Gallon – 15 deg	58	36 x 55	68″	8″	2″	2.0
CB0200-42	200 Gallon – 45 deg	77	42 x 55	67″	12″	2″	2.0
CBFD240-42	240 Gal Full Drain – 45 deg	77	42 x 59	69″	12″	2″	2.0
CB0250-36	250 Gallon – 15 deg	76	36 x 67	80″	8″	2″	2.0
CB0295-52	295 Gallon – 45 deg	97	52 x 51	64″	12″	2″	1.7
CB0325-36	325 Gallon – 15 deg	92	36 x 84	97″	8″	2″	2.0
CB0345-52	345 Gallon – 45 deg	102	52 x 58	70″	12″	2″	2.0
CB0350-42	350 Gallon – 45 deg	120	42 x 81	93″	12″	2″	2.0
CB0500-52	500 Gallon – 45 deg	132	52 x 81	92″	12″	2″	2.0
CB0750-52	750 Gallon – 45 deg	171	52 x 105	118″	12″	2″	1.7
CB0850-90	850 Gallon – 15 deg	212	91 x 56	67″	16″	2″	1.7
CB1150-90	1150 Gallon – 15 deg	242	91 x 67	78″	16″	2″	1.7
CB1550-90	1550 Gallon – 30 deg	286	91 x 88	97″	16″	2″	1.7
CB2450-90	2450 Gallon – 15 deg	437	91 x 114	125″	16″	2″	1.7
CB2550-90	2550 Gallon – 30 deg	502	91 x 126	134″	16″	2″	1.7
Part No.	Capacity	Weight	Dimensions	Overall Height	Lid	Fitting	Specific Gravity
