Lammy Man L distributor numbers are as follows 0231168015 and 043905205L. It is in a 1600cc twinport engine.Ive looked on old volks home but it isnt listed. It has a single vac advance. Any ideas?????? :confused:

#1 · Mar 14, 2009 distributor numbers are as follows 0231168015 and 043905205L. It is in a 1600cc twinport engine.Ive looked on old volks home but it isnt listed. It has a single vac advance. Any ideas?????? :confused:

Sort by Oldest first Oldest first Newest first Most reactions #2 · Mar 14, 2009 Found this on the samba http://www.thesamba.com/vw/forum/viewtopic.php?t=115367 Only thing i could find on that distributor, Hope it helps, Cheers Malc. #3 · Mar 14, 2009 http://www.volkszone.co.uk/VZi/showthread.php?p=4686055 Found it.

#4 · Mar 14, 2009 distributor identification thanks guys back to my original question, what do I set the timing at???

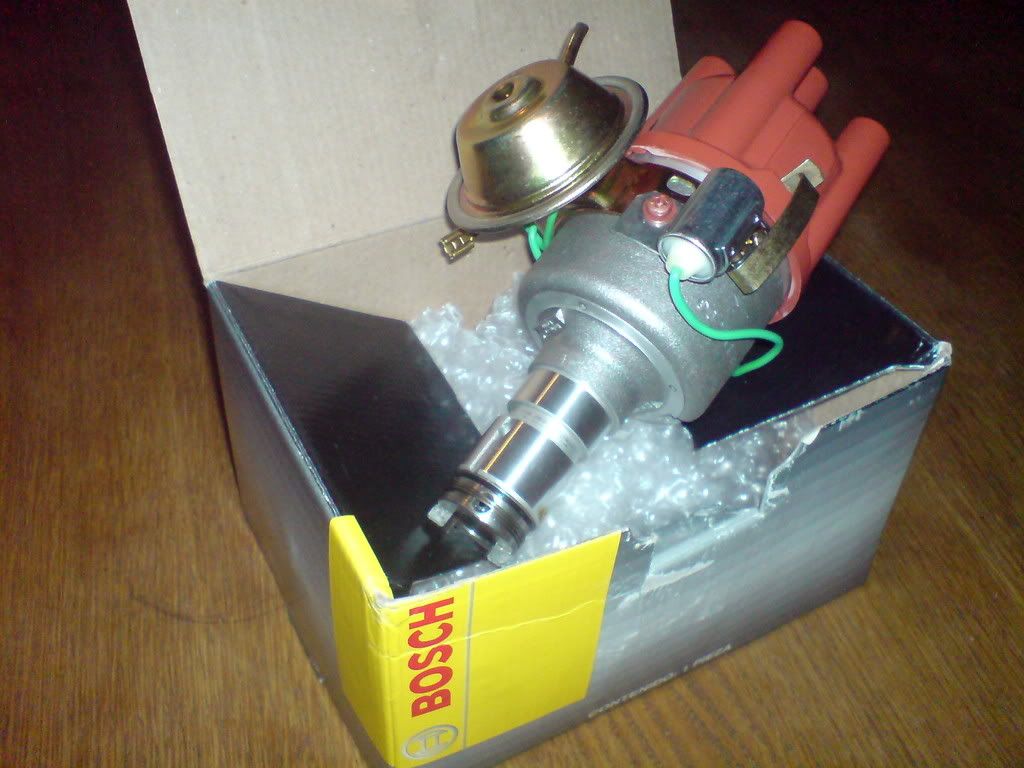

#5 · Mar 14, 2009 7.5deg btdc same as the one below Distributor: VW 043-905-205, Bosch 0231 170 034 Can Use: VW 113-905-205AL, Bosch 0231 146 101, VW 043 905 205 ZB (Mexico) (See Note Below) Points: 01 011 Condensor: 02 074 Rotor: 04 033 Dust Cover: 039-905-241, Bosch 1230 500 139 > 1230 500 147 Cap: 03 010 Distributor Cap Clip: 034-905-265, Bosch 1231 251 033 Parts Kit (Shims, Washers & Hardware): 059-998-211, Bosch 1237 010 007 Coil: 00 015 (Blue Coil: 00 012) Vacuum Can: 07 059 Ignition Wires: 09 001 Spark Plug: W8AC Timing Set At:: 7.5deg BTDC @ 800-950rpm w/strobe and w/single vacuum hose disconnected and plugged Advance/Retard Range: Vacuum: 8-12deg Adv; Centrifugal: 7-12deg @ 1600rpm, 20-25deg @ 3800rpm NOTE: Volkswagen (with Bosch's help) now makes this distributor in Mexico and is available brand new and ready to install. Please click this link #6 · Mar 14, 2009 Your original question was to identify it. #7 · Mar 14, 2009 The distributor is a single vacuum advance Bosch one made in Mexico. That distributor would be ideal for the 1600 twinport engine as well as other type 1 engines. Those distributors are currently available from VW Heritage. The first clue of country of origin is the first 3 numbers of the VAG part number - 043 = Mexico. #8 · Mar 14, 2009 Sorry, didn't recognise the part no. - That's the dissy I have on my bus and set to 7.5 btdc. :rolleyes:

#9 · Mar 14, 2009 distributor thanks for all your help guys I will check the timing tomorrow and go from there!! thanks again Dave
