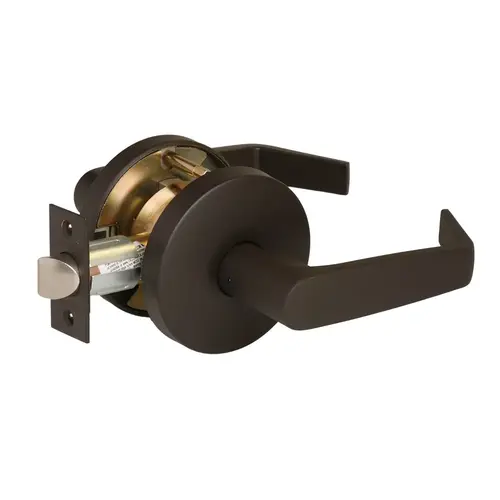

Falcon W101S-DAN-613-30-208Click To Copy W Series Passage Lock, Oil Rubbed Dark Bronze

Item #: W101S-DAN-613-30-208 by Falcon

See reviewsSee reviewsSee reviews summary

$93.02

/eachSAVE UP TO 9.30 Buying in bulk Special Order*Usually ships in 1-2 weeksQTY– + ADD TO CART+ Add to WishlistBuy in Bulk & Save - See HowWatch Now Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

B2B Net Terms Safe Payment Ask Question Features

Projection

2.5000

Finish

Oil Rubbed Dark Bronze

Grade

ANSI/BHMA Grade 2

Lever Length

5.0000

Backset

2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner

Function

101-Passage

Door Thickness

1 3/8" - 1 3/4"

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Bore Size

2.1250

Finish Description

Oil Rubbed Dark Bronze

Latch Number

30-208

Strike Number

30-148

Lever Style

DAN-Dane

Rose/Escutcheon Trim

Round Rose

ADA Approved

False

Product Type

Cylindrical Lock

Series

W Series

Application

Retail; Multi Family; Mix Use; Government; Industrial

Warranty

10 year limited

Color Code

613/US10B

Handle Type

Lever

Rose Diameter

3-3/8 Inch

Latch Throw

1/2 Inch

ANSI Function

F75

Latch Type

Spring Latch

Strike Type

ANSI Curved Lip

ADA Compliant

YES

Finish Family

Dark Bronze

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2; UL Listed

Function Description

Latch retracted by knobs/levers at all times

Front Size

1" x 2-1/4"

Function Family

Passage/Hall/Closet

Strike Lip

1-5/16 Inch

Product Projection

2-1/2 Inch

Trim Material

Solid Pressure Cast Zinc (Lever)

Features

Heavy Duty Torsion Springs to Prevent Lever Sag; does Not Require Field Disassembly for Re Handing Allowing for Easy Installation and Maintenance

Manufacturer Parent

Allegion

Lever Length-Inches

5 Inch

Latch Corner

Radius

Knob/Lever Size

4-5/8 Inch

Latch Bolt Material

Stainless Steel

Lever Style Family

Straight Return Lever

Sub-Series

CL_Cylindrical_Locks_Falcon_123

Strike Size

1-1/4" x 4-7/8"

Product Overview W SeriesGrade 2, medium-duty cylindrical lever and knob locks

Designed to offer more functions and finish options than other grade 2 locks, W Series has what you need at the right price. With seven popular lever styles along with two knob styles and your choice of rose diameters (large and small), Falcon W Series can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections as well as Schlage C keyway, which we now masterkey across the complete Falcon product line. The Falcon W Series offers quality product at a value price, and is backed by one of the best names in the business - Allegion.

Features:

• All lever designs meet ADA requirements

• Stainless steel latch bolt

• UL listed latch standard

• Wrought brass or bronze roses over steel through-bolted rose inserts

• Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers

• Non-handed levers for easy field installation

• Solid, pressure-cast zinc levers

Product specifications: ANSI/BHMA:

• Certified ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:

• Listed for 3-hour fire door, A label.

Functions:

• 11 commercial functions available.

Rose size:

• Standard rose diameter 3 3/8". Small rose diameter 2 9/16".

Finishes:

• Levers: Available in BHMA 605, 606, 613, 619, 622, 625, 626 and 643e.
• Knobs: Available in BHMA 605, 606, 613, 625, and 626.

Door thickness:

• 1 3/8" to 1 3/4" standard.

Backset:

• Standard rose - 2 3/4" backset; Small rose - 2 3/8" backset.

Mechanism:

• Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:

• Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Handing:

• Locks are non-handed.

Cylinder:

• Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways:

• "G" keyway standard on conventional cylinders. "A" keyway standard on SFIC cylinders.

Trim:

• Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:

• 1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. Standard rose: 2 3/8" backset with 1" x 2 1/4" latch face or 2 3/4" backset with 1 1/8" x 2 1/4" latch face. Small rose: 2 3/4" backset with 1 1/8" x 2 1/4" latch face.

Strikes:

• 4 7/8" x 1 1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.

Screws:

• Furnished with combination screws for use in wood or metal doors and frames.

Architectural specifications

Key-in-lever cylindrical locksets shall be Falcon W Series or equal and meet the following requirements:

• All locks shall meet ANSI/BHMA A156.2, Series 4000, Grade 2 test requirements for key-in-lever locksets

• Locksets shall be UL Listed 3-hour, A Label

• Lever trim shall have individual, heavy-duty springs for lever return and to prevent lever sag; trim shall be through-bolted

• All lever designs shall be solid (no inserts) and meet the federal ADA and state disability requirements

• Locksets shall adjust to fit door thickness from 1 3/8" to 1 3/4"

• All locksets shall be non-handed and not require field disassembly for re-handing

• Preparation for door must be non-handed
• (Acceptable manufacturer: Falcon lock)
