FLEX-BX100-ULT5

8th Gen Intel® Whiskey Lake-U PoE PD Embedded System

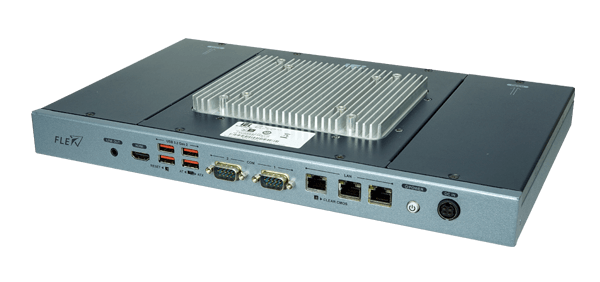

FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System - front
FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System - back
  • FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System with 8th gen Intel® Whiskey Lake-U processors
  • FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System - front
  • FLEX-BX100-ULT5 Fanless Rugged Box PC, Embedded System - back
» 8th Gen Intel® Whiskey Lake-U processors » Low power consumption and fanless design » Support IEEE 802.3 bt PoE PD (By optional PoE BT module: GPOE-PD-BT01) » Support NVMe SSD and USB 3.2 GEN2 (10Gbps)
  • Overview
  • Features
  • Specifications
  • Resources
Sales Inquiry Download

8th Gen Quad-core High-speed Processing and Transmission

IEI's FLEX-BX100 industrial box PC features an 8th Gen Intel® Core™ i5- 8365UE processor with blazing-fast performance, four USB 3.2 Gen 2 ports and ultra-thin design, which can meet the demand of high-speed data processing and transmission, and can also suit into various environment with no space limit.

photo description

IEEE 802.3 bt Standard PoE PD box PC

The FLEX-BX-100 can be optionally equipped with an IEEE802.3af/at/bt-compliant GPOE-PD-BT01-R10 card for connecting to an IEEE802.3bt switch to operate as a PoE Powered Device (PD).

photo description
photo description

IEEE802.3at Load-sharing

Customers who are unable to upgrade their PoE Switch [PSE] to IEEE802.3bt standard can upgrade the FLEX-BX-100 box PC by simply installing IEI's GPOE-PD-AT01 module, and power the device with two IEEE802.3at standard PSE ports.

photo description
photo description

Silent Fanless System & Fanless Design

photo description
photo description

Application

Triple GbE ports, creating a networked industrial control system environment

photo description

Suitable for Semi-outdoor Environment

Wide Temperature (-20°C ~60°C)

photo description photo description

Easy-access HDD and PoE PD module

photo description

Specifications

PDF

XLS

Datasheet

Add to E-catalog

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:8th Generation Intel® Core™ i5-8365UE8th Generation Intel® Celeron® 4305UE
  • Chipset: Intel® Whiskey Lake-U
  • System Memory:2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)
  • Power:Input - DC Jack: 12 V DCConsumption: 12 [email protected] A (Intel® Core™ i5-8365UE with 4 GB memory)Power Device (PD): follows IEEE 802.3bt (71W)
I/O Interface
I/O Ports 1 x HDMI™2 x PoE GbE LAN* (RJ-45)1 x GbE LAN (RJ-45)1 x RS-232/422/485 (DB-9, COM1) 1 x RS-232 (DB-9, COM2)4 x USB 3.2 Gen 2 (10Gb/s) Type-A1 x Line-out
Expansion Slots
Expansion Slots M.2 2230 A-Key(PCIe x1, USB 2.0; support Wi-Fi, BT)M.2 2280 M-Key(PCIe x4; support NVMe SSD)
System
Cooling method / System Fan Fanless
Drive Bays 2.5” HDD/SSD SATA 3(6.0Gb/s) bay
Indicator&Buttons
Buttons 1 x Power button with LED indicator1 x Reset button 1 x AT/ATX mode switch 1 x Clear CMOS button
Color
Color PANTONE 296 C
Dimensions
Dimensions 356.5x 222 x 44(mm)
Weight
Weight 2.8/5.5kg
Environment
Operating Temperature -10°C ~ 60°C (with air flow)
Humidity 10% ~ 95% (non-condensing)
Reliability Shock - 10G acceleration part to part (11ms)Vibration 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak
Safety/EMC CE/FCC

Ordering Information

FLEX-BX100-ULT5-C/4G-R10 Fanless embedded system with IntelR 14nm 8th Whiskey Lake CeleronR 4305UE (2M Cache, 2.0 GHz) TDP 15W on-board Processor (ULT), 4GB DDR4 RAM x1, 12VDC input, R10

Package Contents

  • 1x FLEX-BX100-ULT5 PC
  • 1x Power adapter
  • 1x Power cord
  • 4x Screws (M3*4) for HDD installation
