G6S-2F-TR-DC5 参数 Datasheet PDF下载 G6S-2F-TR-DC5图片预览
型号： G6S-2F-TR-DC5
PDF下载： 下载PDF文件 查看货源
内容描述： 低信号继电器 [Low Signal Relay]
分类和应用： 信号继电器
文件页数/大小： 12 页 / 765 K
品牌： OMRON [ OMRON ELECTRONICS LLC ]

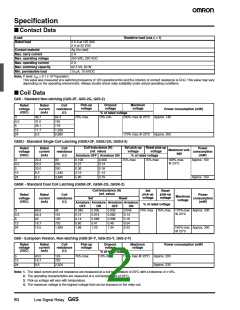

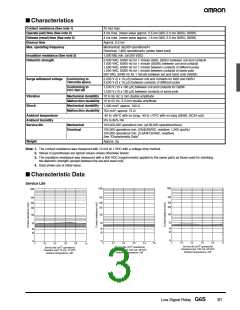

浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第2页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第3页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第4页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第5页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第6页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第7页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第8页浏览型号G6S-2F-TR-DC5的Datasheet PDF文件第9页
GLow6SigSnal Relay Suface Mount DPDT Relay • High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); 1,500 VAC between contacts of different polarity. • Meets FCC Part 68 and Telcordia 2.5 kV surge withstand. • European version certified for EN60950/EN41003 Supple- mentary Insulation at 250 V at Pollution Degree 2. • Low power consumption of 140 mW (Non-latching) • Available in through-hole and SMT terminals. • Tape and reel or tube packaging. • RoHS Compliant. Ordering Information ■ Standard Version . Model Contact form DPDT Non-latching Terminal Gull-wing Single coil latching Dual coil latching Standard G6S-2F European Version* G6S-2F-Y G6S-2G-Y G6S-2-Y G6SU-2F G6SU-2G G6SU-2 G6SK-2F G6SK-2G G6SK-2 Inside “L” G6S-2G G6S-2 PCB through-hole * Certifiedfor EN60950/EN41003 Supplementary Insulation at 250 V (pollution degree 2) Notes: 1. When ordering, add the rated coil voltage to the model number. Example: G6S-2F DC12 Rated coil voltage 2. When ordering tape packing (surface mount models), add"-TR" to the model number. Example: G6S-2F-TR DC12 Tape packing "-TR" is not part of the relay model number. Therefore,it is not marked on the relay case. 3. Dual coil latching models are available with a High-sensitivity coil. (140 mW; 200 mW for DC24) When ordering High-sensitivity dual coil latching models, add "-H” to the model number. Example: G6SK-2G-H-TR DC5 High-sensitivity coil Model Number Legend G6S - - - DC 1 2 3 4 5 6 5. Packaging None: Tube packaging 3. TerminalShape None: Through-hole 1. RelayFunction None: Non-latching TR: Tape and reel packaging U: K: Single coil latching Dual coil latching F: Gull-wing surface mount Inside “L” surface mount (Surface mount models) G: 2. ContactForm 4. ApprovedStandards 6. RatedCoil Voltage 3, 4.5, 5, 12, 24 VDC 2: DPDT None: UL/CSA Y: EN60950/EN41003 (Standard coil models - 5, 12, 24 VDC ) Low Signal RelayG6S 79
