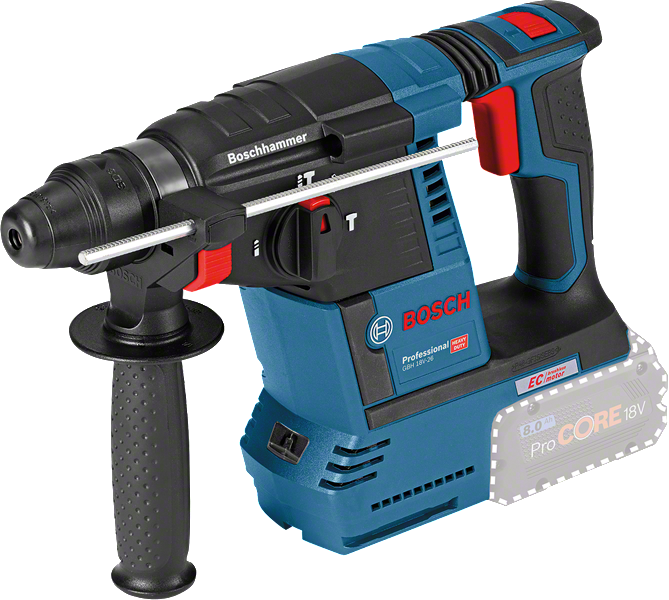

GBH 18V-26 Cordless Rotary Hammer With SDS Plus

GBH 18V-26 Professional

Cordless Rotary Hammer with SDS plus

Order number 0.611.909.000

• Delivers 2.6 J of impact energy for fast drilling and high chisel removal performance
• KickBack Control and Electronic Precision Control for better tool handling and increased user protection
• Optional GDE 18V-16 Professional dust extraction unit integrates with the hammer for a self-contained HEPA dust solution

View more Select a variant Please select in cardboard box with auxiliary handle Buy now Your Selected Variant Your Selected Variant in cardboard box with auxiliary handle 0 611 909 000 Buy now

GBH 18V-26 Professional

Your Selection

in cardboard box with auxiliary handle

Order number: 0 611 909 000

Buy now

Included in this variant

• Auxiliary handle Order number: 2 602 025 141
• Cardboard box
• Machine cloth
• Depth stop 210 mm Order number: 1 613 001 010

Your selection Professional 18V System. Discover more!

Technical data

The most important data

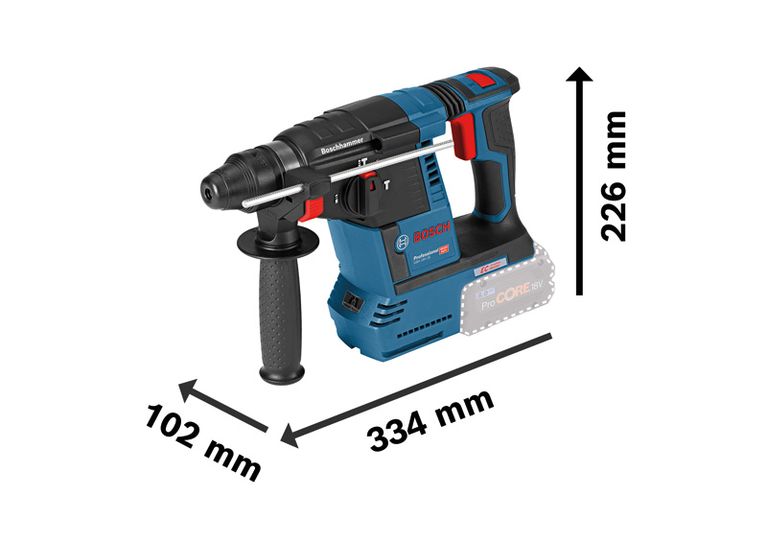

Impact energy* 2.6 J Impact rate at rated speed* 0 – 4,350 bpm Rated speed* 0 – 980 rpm Battery voltage* 18.0 V Weight excl. battery* 2.9 kg Tool holder SDS plus Packaging dimensions (width x length x height)** 251 x 398 x 112 mm Impact energy nominal 2.6 J

Drilling range

Drilling dia. in concrete with hammer drill bits 4 – 26 mm Opt. app. range in concrete with hammer drill bits 8 – 16 mm

Total vibration values (Hammer drilling in concrete)

Vibration emission value ah 15.2 m/s² Uncertainty K 1.5 m/s²

Total vibration values (Chiselling in concrete)

Vibration emission value ah 9.9 m/s² Uncertainty K 1.5 m/s² Show more

* You can find more information about the deviations in the following link: Technical features of products

** May have small deviations because of variations during production process. You can find more information about the deviations in the following link: Technical features of products

GBH 18V-26 Professional: Further information

Product Highlights

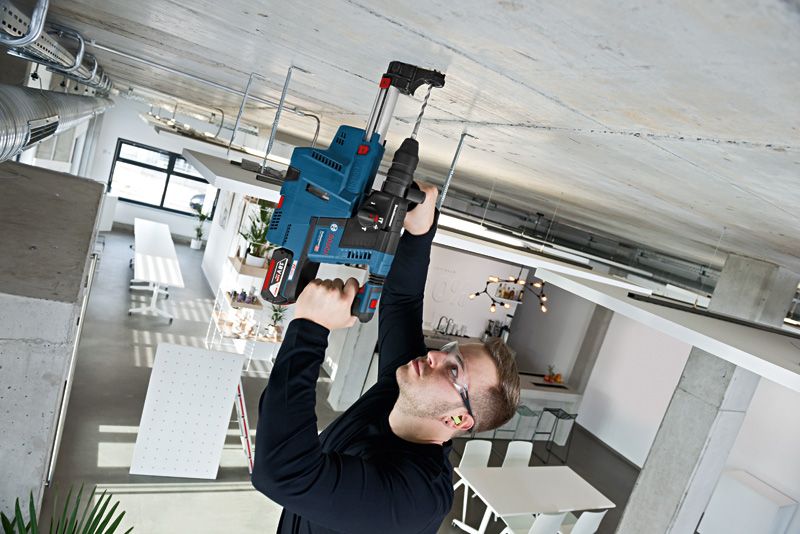

This is the all-round performer in the Bosch SDS plus cordless rotary hammer category, making it perfect for daily use. An optional GDE 18V-16 Professional dust extraction unit integrates with the hammer, providing a self-contained HEPA dust solution for maximum mobility. The rotary hammer also features KickBack Control and Electronic Precision Control (EPC) for better tool handling and increased user protection. Its powerful motor delivers 2.6 J of impact energy, providing fast material removal rates.

Equipment & Application

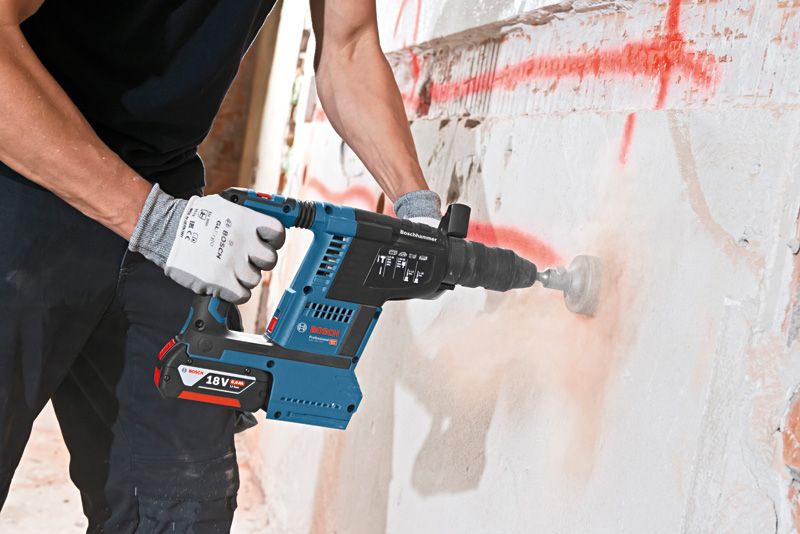

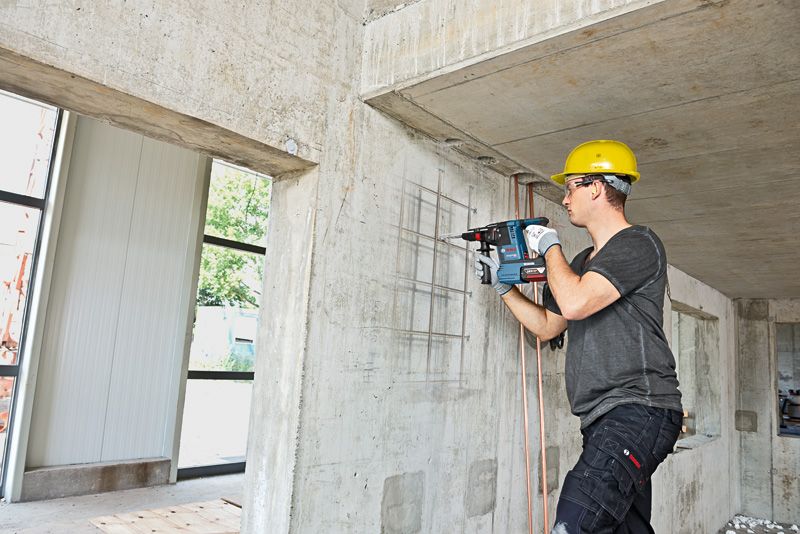

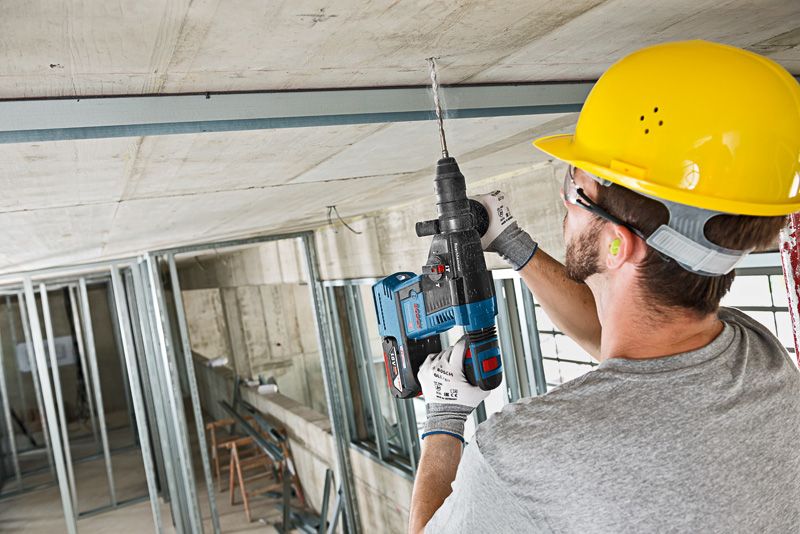

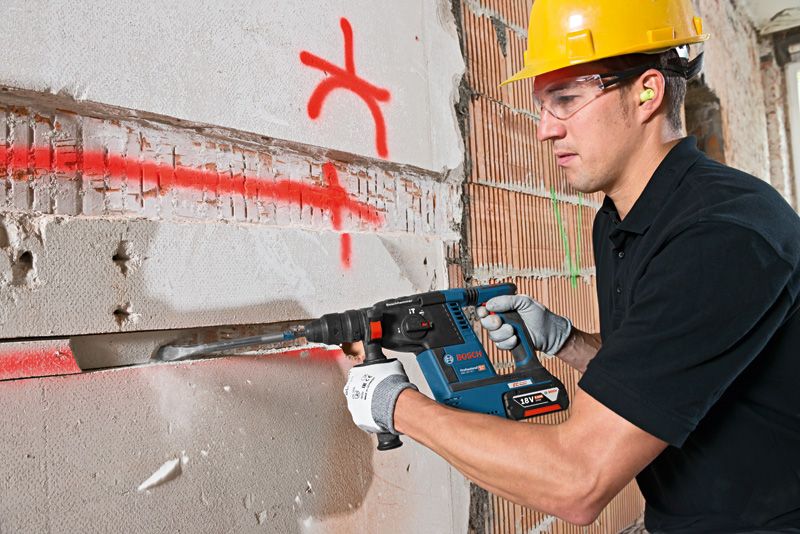

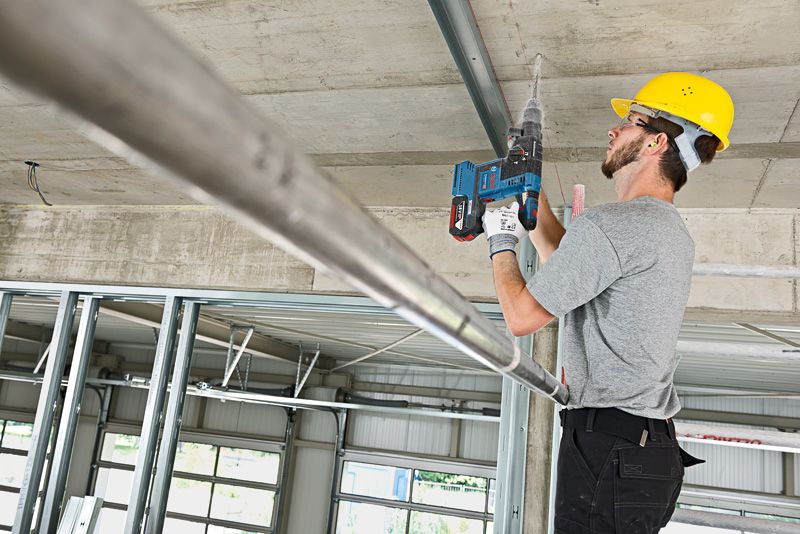

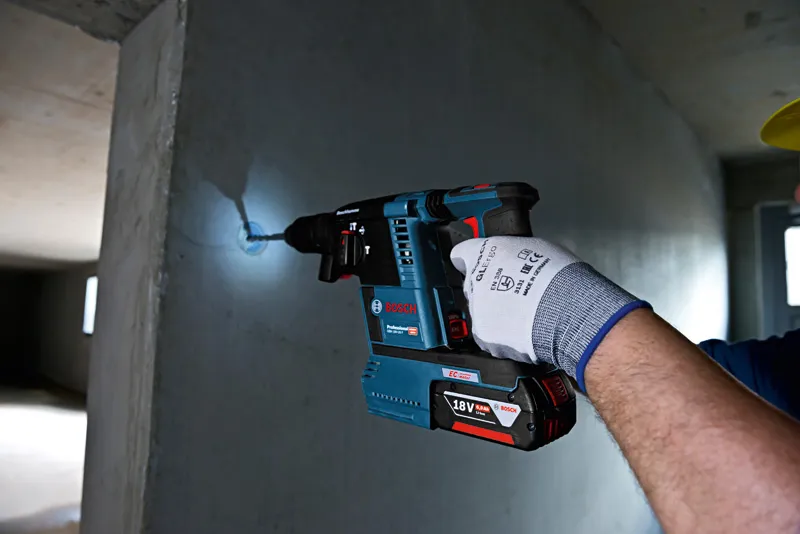

This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments as well as all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.

Additional Information

This rotary hammer also includes various additional features such as Constant Speed, a Brushless Motor, Electronic Motor Protection (EMP), as well as an LED light, Rotation Control Clutch, Variable Speed, Vario Lock, and Vibration Control.
