Adapter sleeve

H2309 - SNRH2309H2309H2309

This kit contains the following reference(s)

  • KM9
  • MB9

Log in

To add this product to your basket

Documentation

  • Technical datasheet

Product information

PRODUCT DEFINITION
BrandSNR

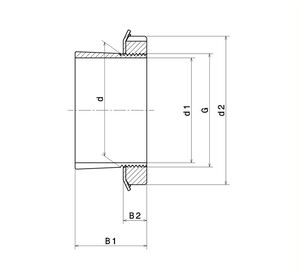

d1 - Sleeve bore diameter40 mm
d - Internal diameter45 mm
d2 - Outer diameter of locknut65 mm
B1 - Sleeve length50 mm
B2 - Distance between the bearing face and nut rear face11 mm
G - Thread designationM45X1.5
Mass0,28 kg
undefined
TECHNICAL CHARACTERISTICS
Associated bearing22309, 2309
BoreConique 1:12
