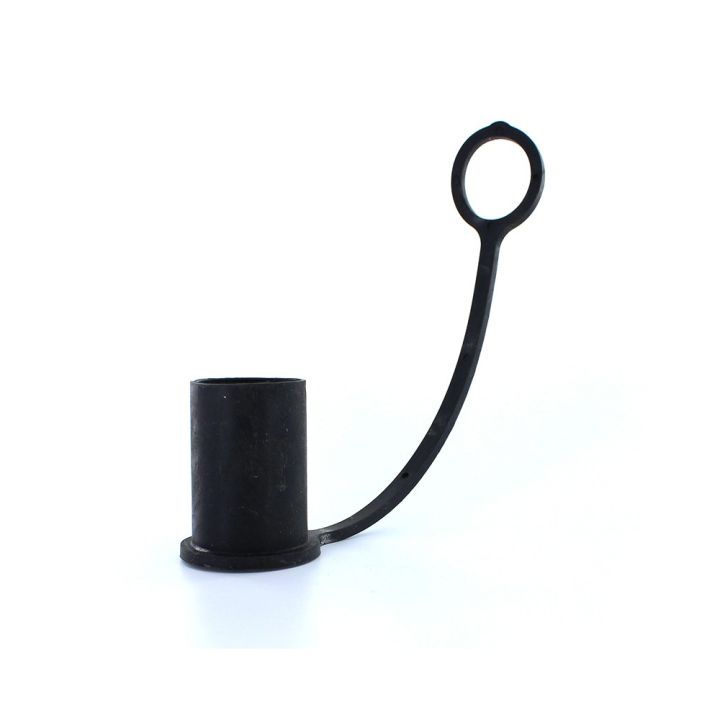

H3-66M Home Quick Couplings Medium Pressure 60-Series H3-66M 60 Serie Dust Cap, Rubber Login to see prices and stocks

Become a client

Add to Quote Ordered before 3pm, shipped today

• Fast order processing
• All products in stock
• 24/7 Support
• Questions? Call +31(0)10 - 479 15 11

Customers rate us 8.4/10 on Kiyoh Skip to the end of the images gallery Skip to the beginning of the images gallery

• More Information
• Details
• Downloads

More information about H3-66M

Partnumber H3-66M Weight (KG) 0.027700 Brand Parker Manufacturer Parker Hannifin Crossreference Parker H3-66M Working Temperature -40 °C to +110 °C Series 60 Series Material Santoprene® ISO ISO 7241 B Customs Tariff Number 40169997 Box Qty 25 Country of Manufacture United States Sales Unit Piece

Details of the H3-66M

60 Series Couplers (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Nipples.Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B.

These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.

Steam version couplers are brass with double interface O-rings and stainless steel locking balls. Seal material is Ethylene Propylene and the 3/8" size has a grip-ring sleeve for easy operation when wearing gloves.

Technical Characteristics:

• Sizes: 1/8” – 2-1/2”
• Materials: Steel, Brass, 302 Stainless Steel, 316 Stainless Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
• Coupler options include: Sleeve Lock, Valve Actuator, Steam compatibility

Markets:

• Industrial
• Construction
• Chemical Processing
• Commercial Cleaning
• Agriculture

Features/Benefits:

• Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
• Multi-purpose coupling, widely used in varied applications
• Steel couplers have a hardened sleeve for strength and durability
• Metal valve stop prevents flow checking to provide steady performance
• Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8" has a grip-ring sleeve for easy operation when wearing gloves
• Brass couplers have double O-rings for redundant sealing and stainless steel locking balls for corrosion resistance
• 316 Stainless steel couplers have Fluorocarbon seals for chemical compatibility
• Optional coupler sleeve lock helps to prevent accidental disconnection

Applications:

• Industrial hydraulic lines
• Food and chemical processing
• Water and coolant lines
• High pressure fluid transfer
• High temperature fluid transfer
• Mobile equipment
• Cleaning equipment
• Dry cleaning
• Steam systems

Downloads of the H3-66M

Datasheet 60 Serie (Size: 1.1 MB) Safety Guide: Quick Couplings and Related Accessories Port End Assembly Guide Fluid Compatibility Chart Catalog 3800 Quick Coupling Products
