Adapter sleeve

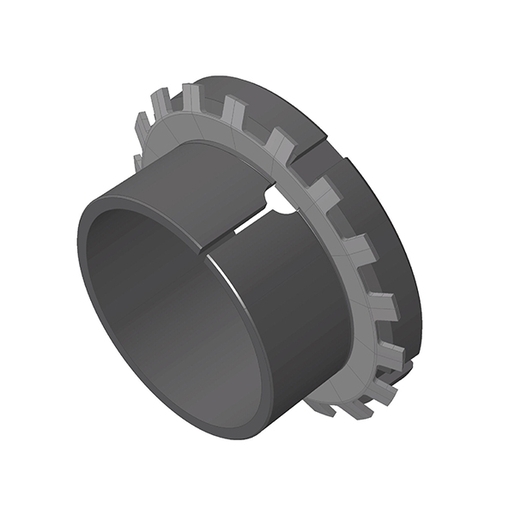

H312 - SNRH312H312H312

This kit contains the following reference(s)

  • KM12
  • MB12

Log in

To add this product to your basket

Documentation

  • Technical datasheet

Product information

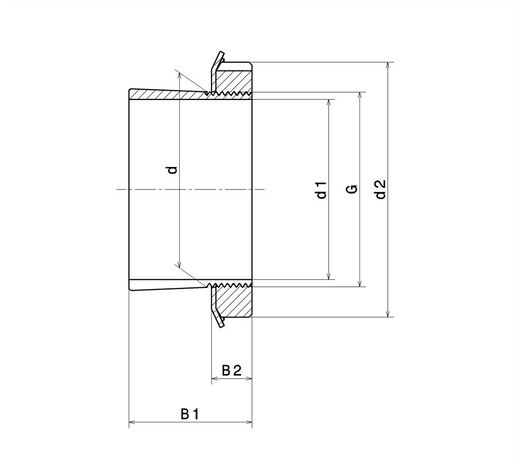

PRODUCT DEFINITION
BrandSNR
d1 - Sleeve bore diameter55 mm
d - Internal diameter60 mm
d2 - Outer diameter of locknut80 mm
B1 - Sleeve length47 mm
B2 - Distance between the bearing face and nut rear face13 mm
G - Thread designationM60X2
Mass0,404 kg
undefined
TECHNICAL CHARACTERISTICS
Associated bearing21312, 22212, 1312, 2212
BoreConique 1:12
