Give Product Feedback Email Print Home|Products|Panel Fabrication|ABW, AOW Series|AOW-422-R null

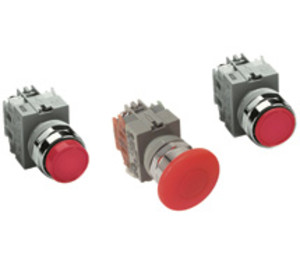

* product series image displayed AOW-422-R | IDEC | Panel Fabrication

PUSH BUTTON MAINTAINED RED MUSHRM 2NC/2NO

Brand:IDEC

MPN:AOW-422-R

SKU:AOW-422-R

List Price:

$154.00

Today's Price:

$80.08

product specifications

Color

Red

Contact Blocks

2NC-2NO

Diameter

22 mm

Function

Mushroom

Illumination

Non-Illuminated

product series specifications

Contact Rating: 10A, 600 VAC/VDC max.; 5mA, 3 VAC/VDC minimum

Contact Resistance: 50 mΩ maximum (inital value)

Contact Material: Silver

Electrical Life: 500,000 minimum operations

Protection Rating: NEMA 1, 2, 3R, 4, 4X, 12, 13

Insulation: 600V

Applicable Wire Size: Minimum: 1 x 22 AWG Maximum: 2 x 14 AWG or 1 x 12 AWG

Mechanical Life: 500,000 minimum operations

Operating Temperature: -13° to 122°F (-25° to 50°C)

Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)

Approvals: UL File #E68961; CSA File #LR48366, CE, RoHs

Warranty: 1 year

product series features

Flush, extended, or mushroom style available
Snap-fit blocks with N.O. and N.C. contacts
Self-cleaning silver contacts
Rugged, oil-tight construction

more information & related documents

Series Description

The ABW Series and AOW Series push button switches are for manual control of fans, pumps, compressors, or control circuits. This variety of push button switch options has proven its reliability in fan control, pump control, and compressor control applications for HVAC applications and building automation systems, BAS. If a project requires assembly of multiple panels configured in the same way, consider using Kele's Custom Panel Shop. Experienced panel technicians will assemble the panels according to specifications and drawings. Then, panels are shipped to a desired location. The information is saved so additional panels can be easily ordered on demand. Stop spending time on panel fabrication and let the experts do it.

Kele Description

PUSH BUTTON MAINTAINED RED MUSHRM 2NC/2NO

Manufacturer

IDEC

Related Documents

ABW, AOW Series Datasheet PDF - ABW, AOW Series Installation Manual

ABW, AOW Series Installation Manual Give Product Feedback
