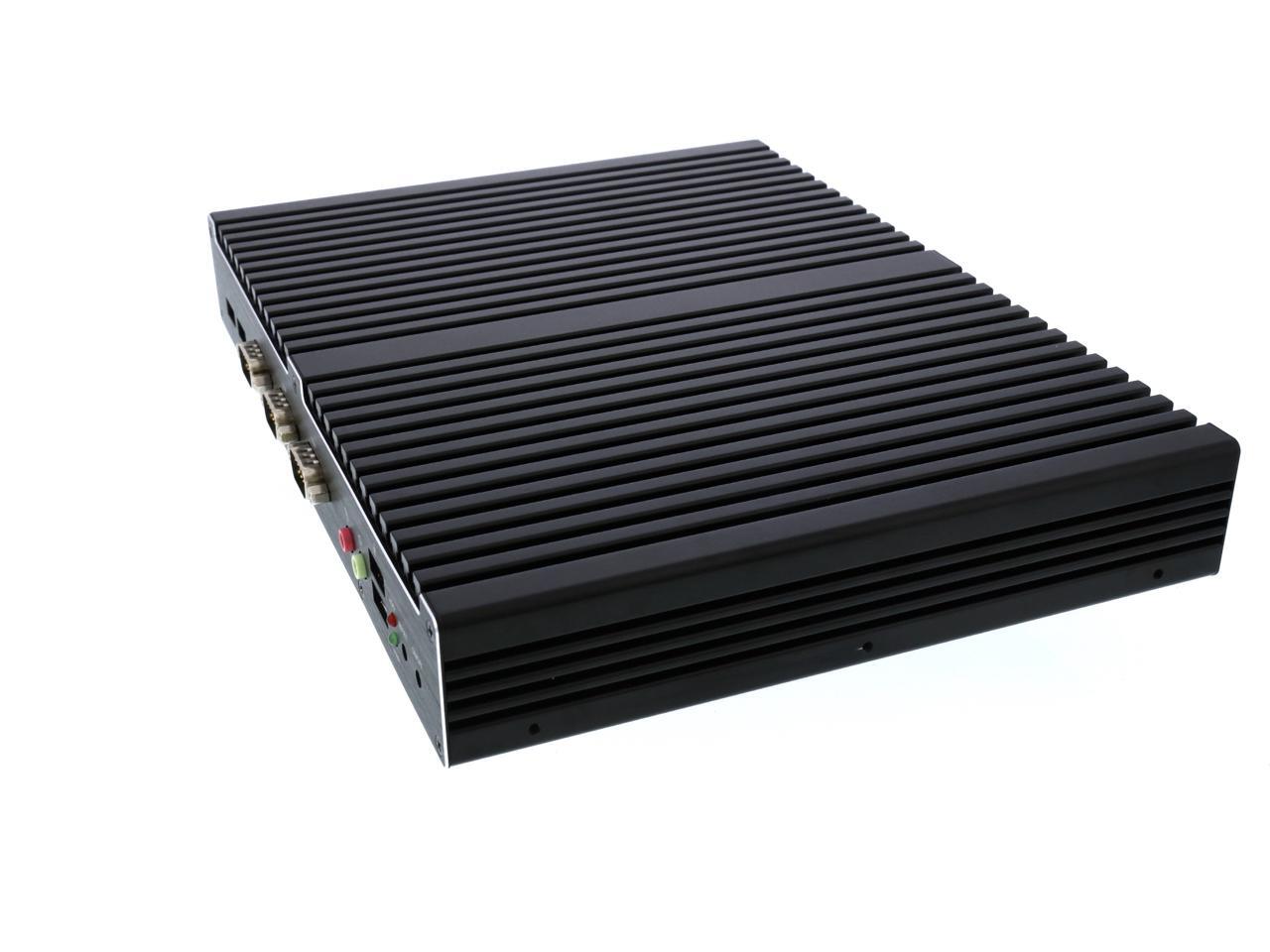

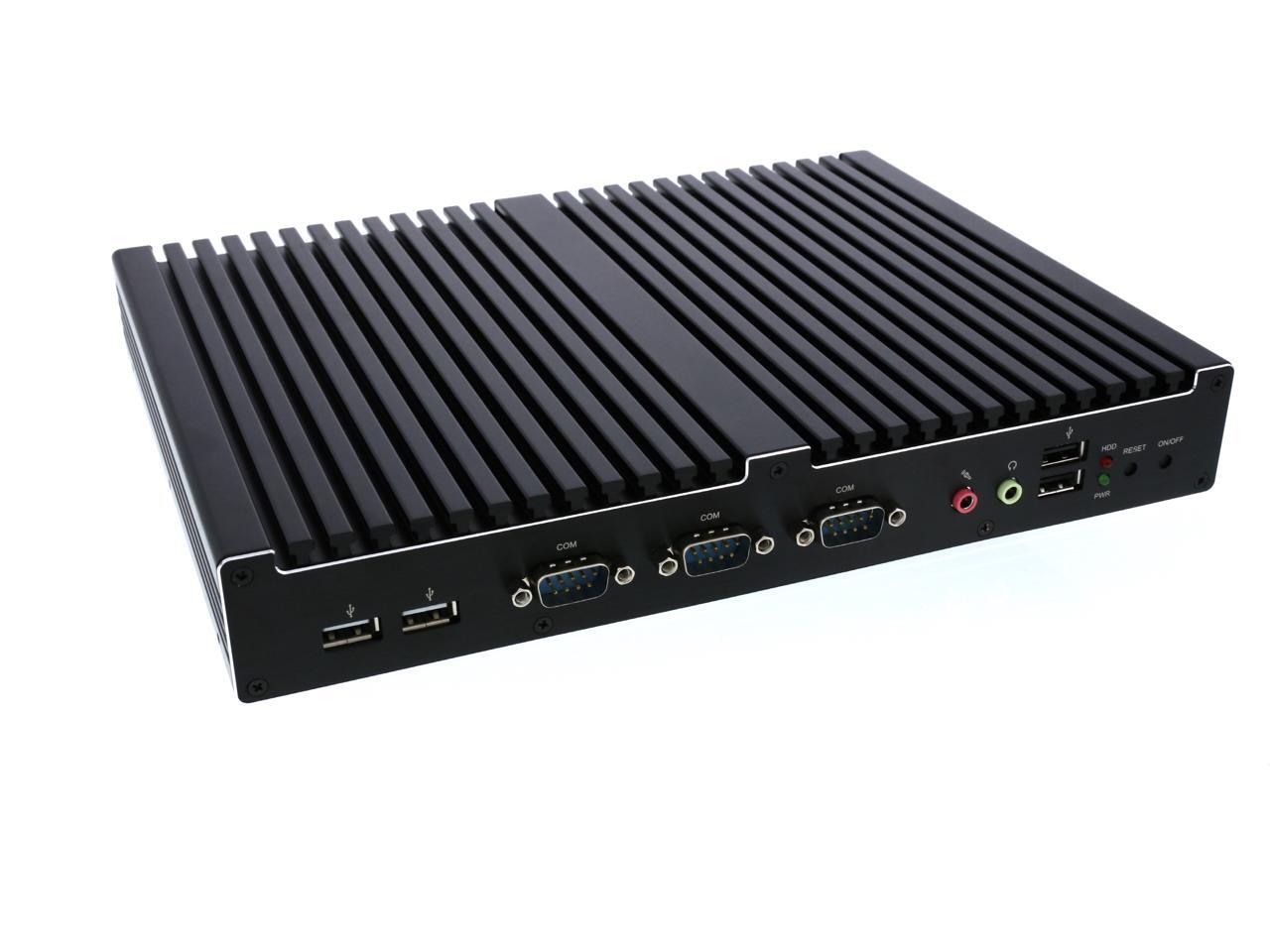

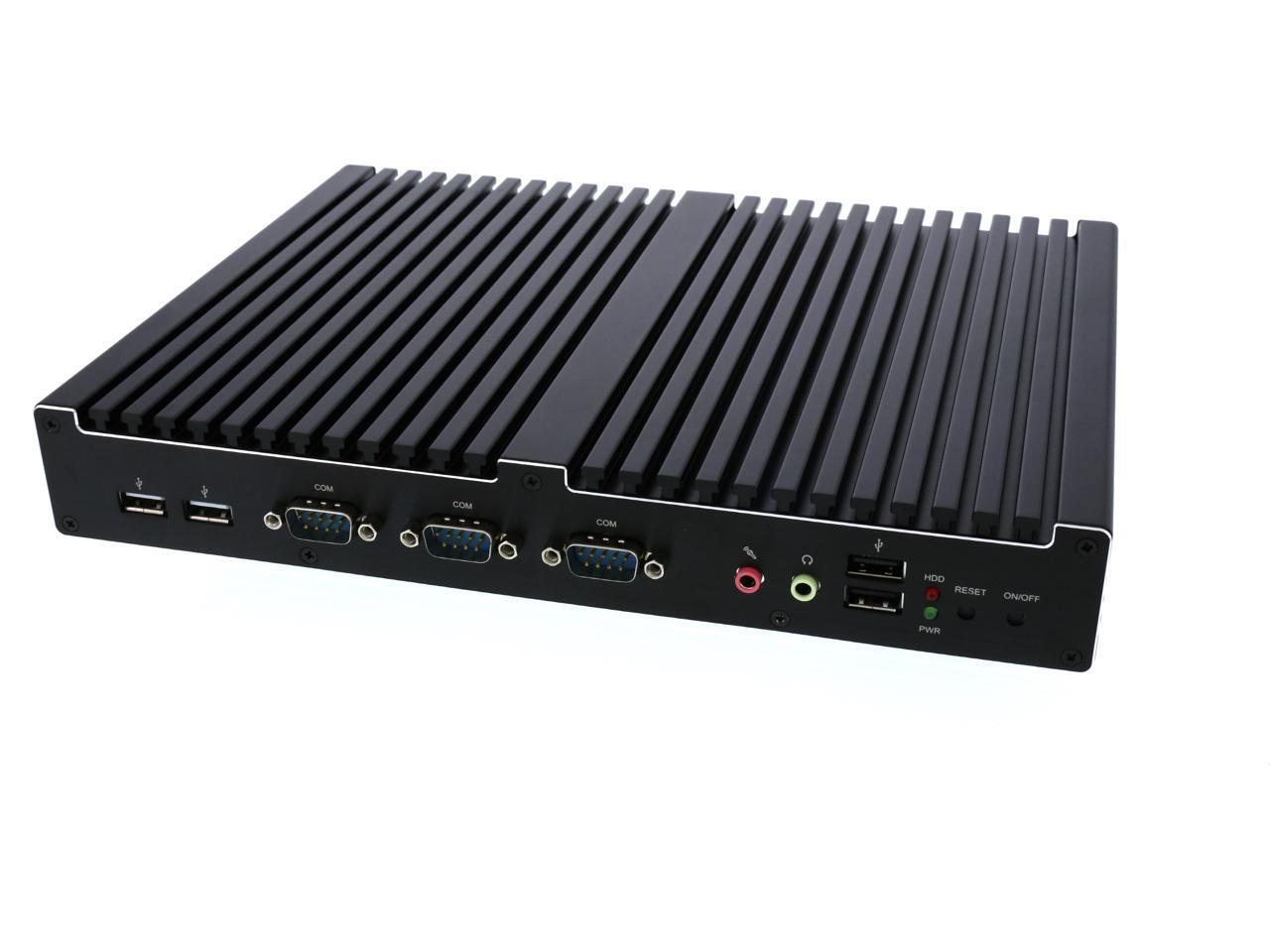

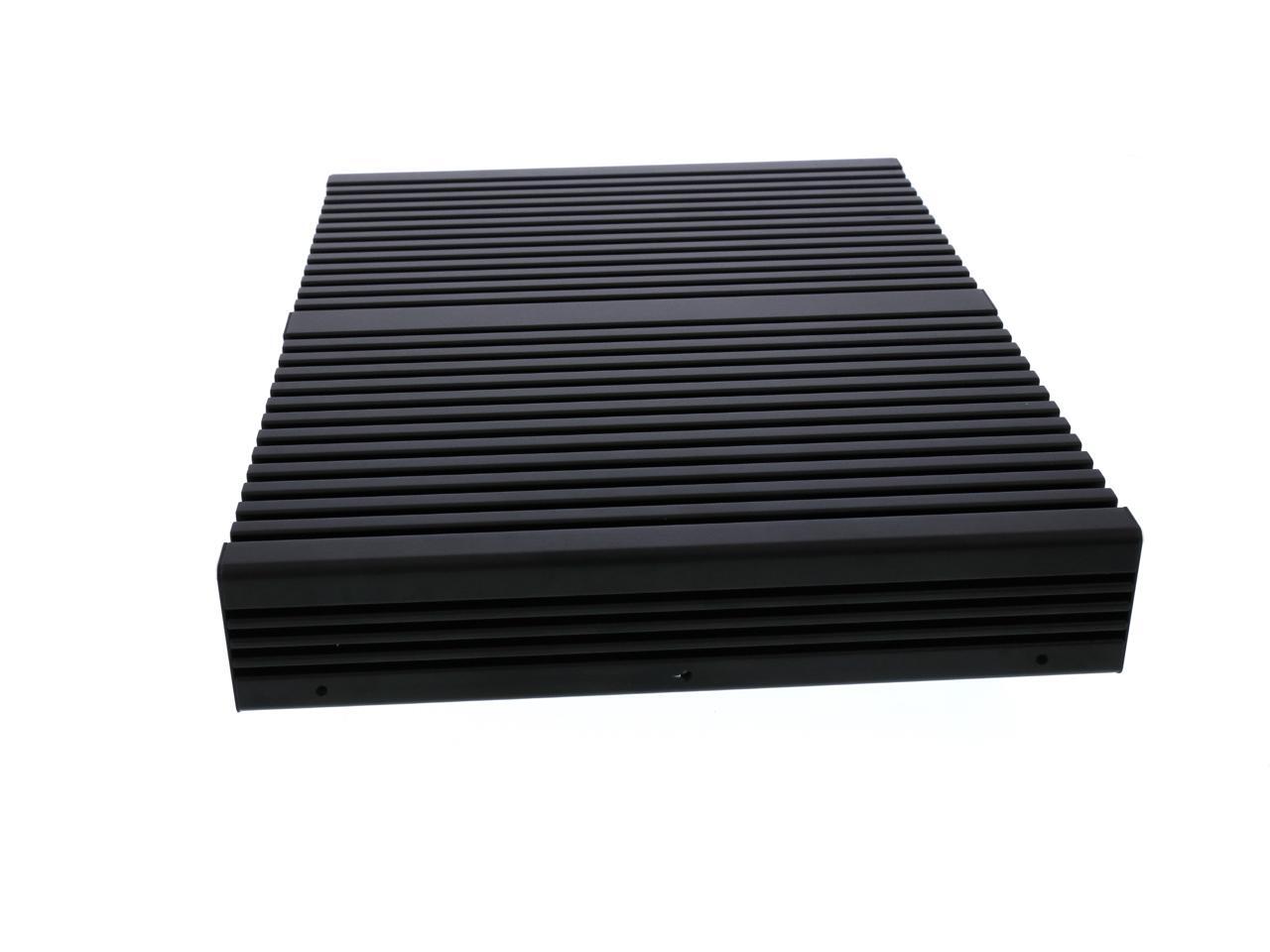

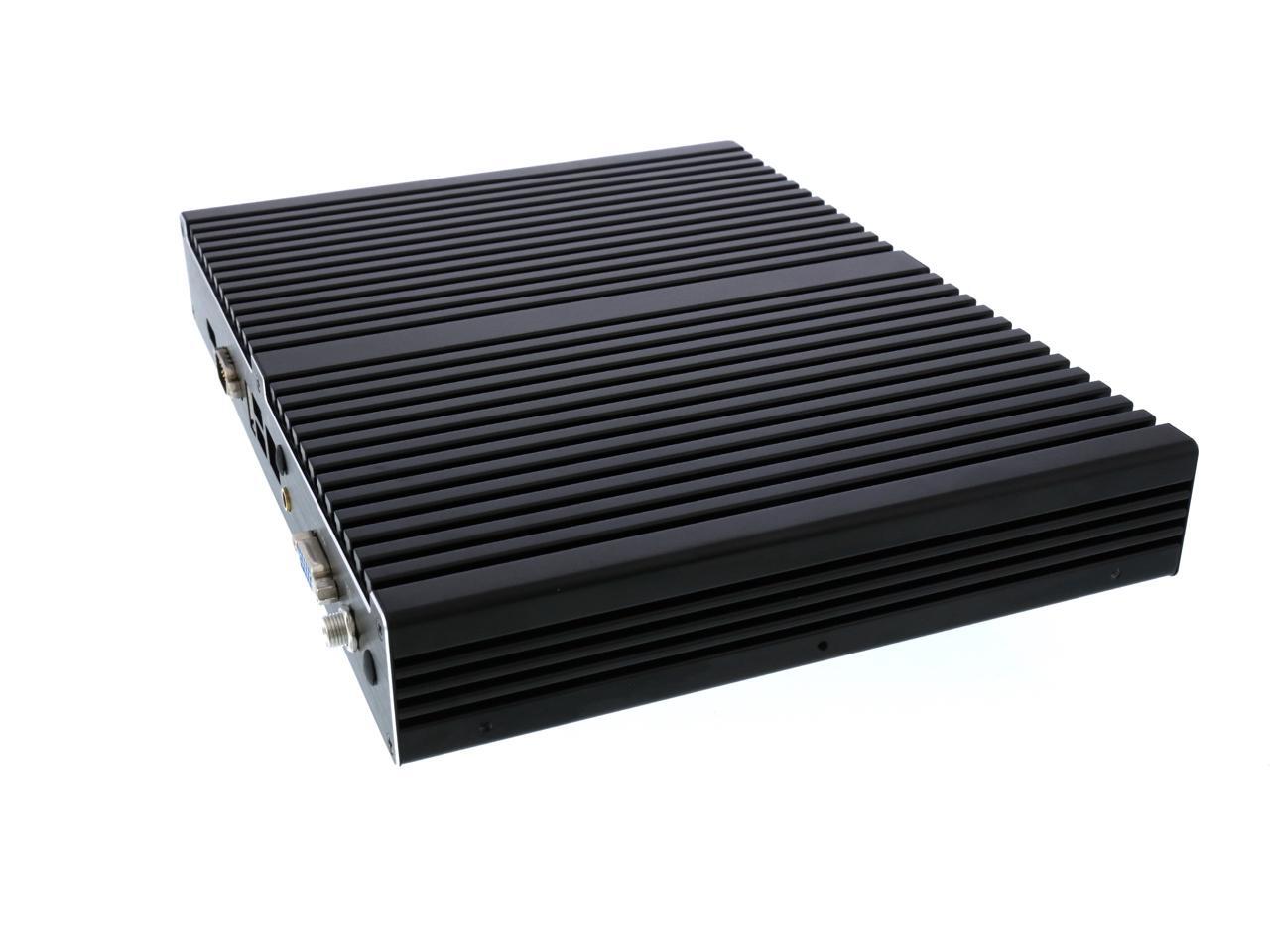

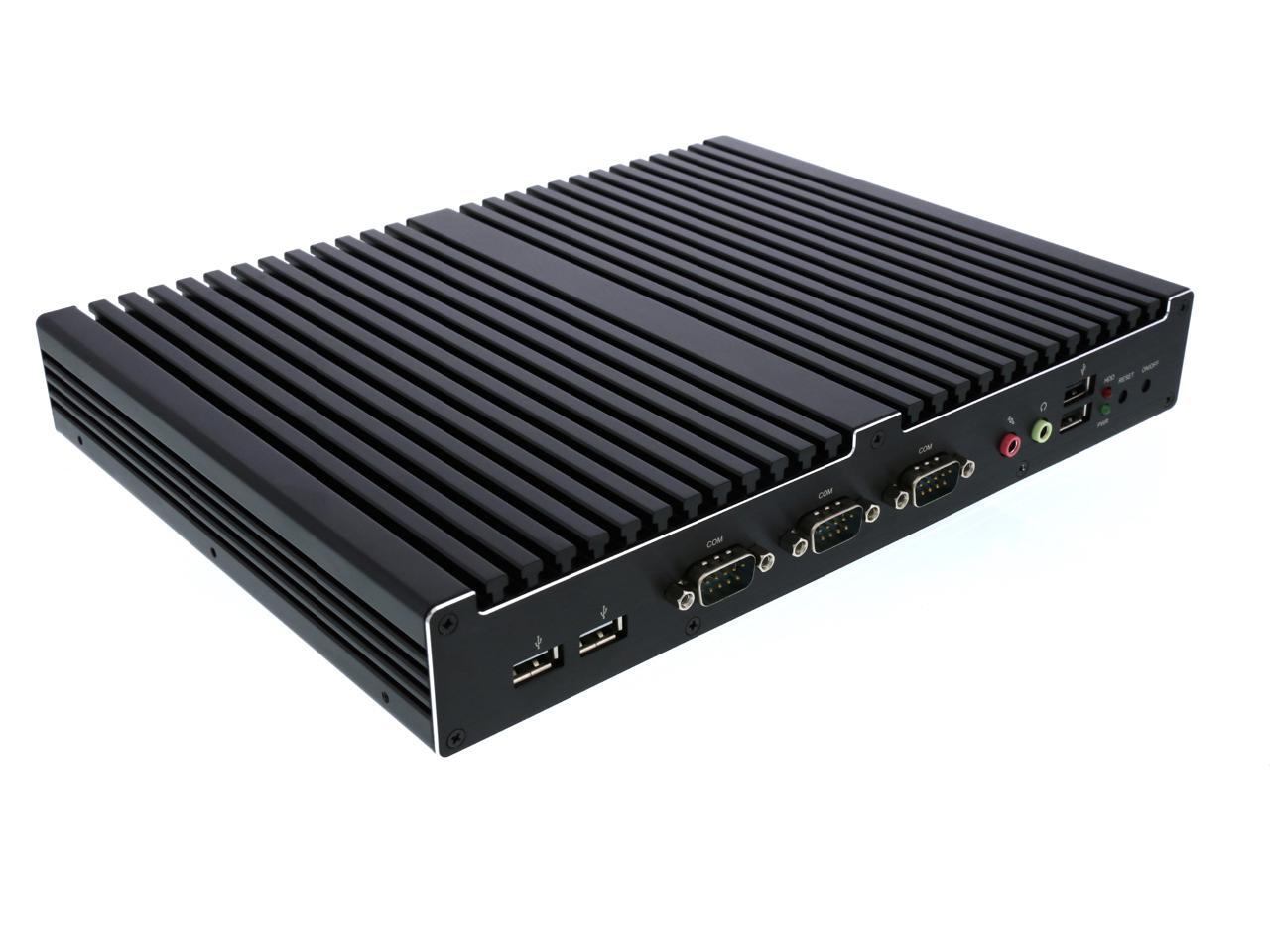

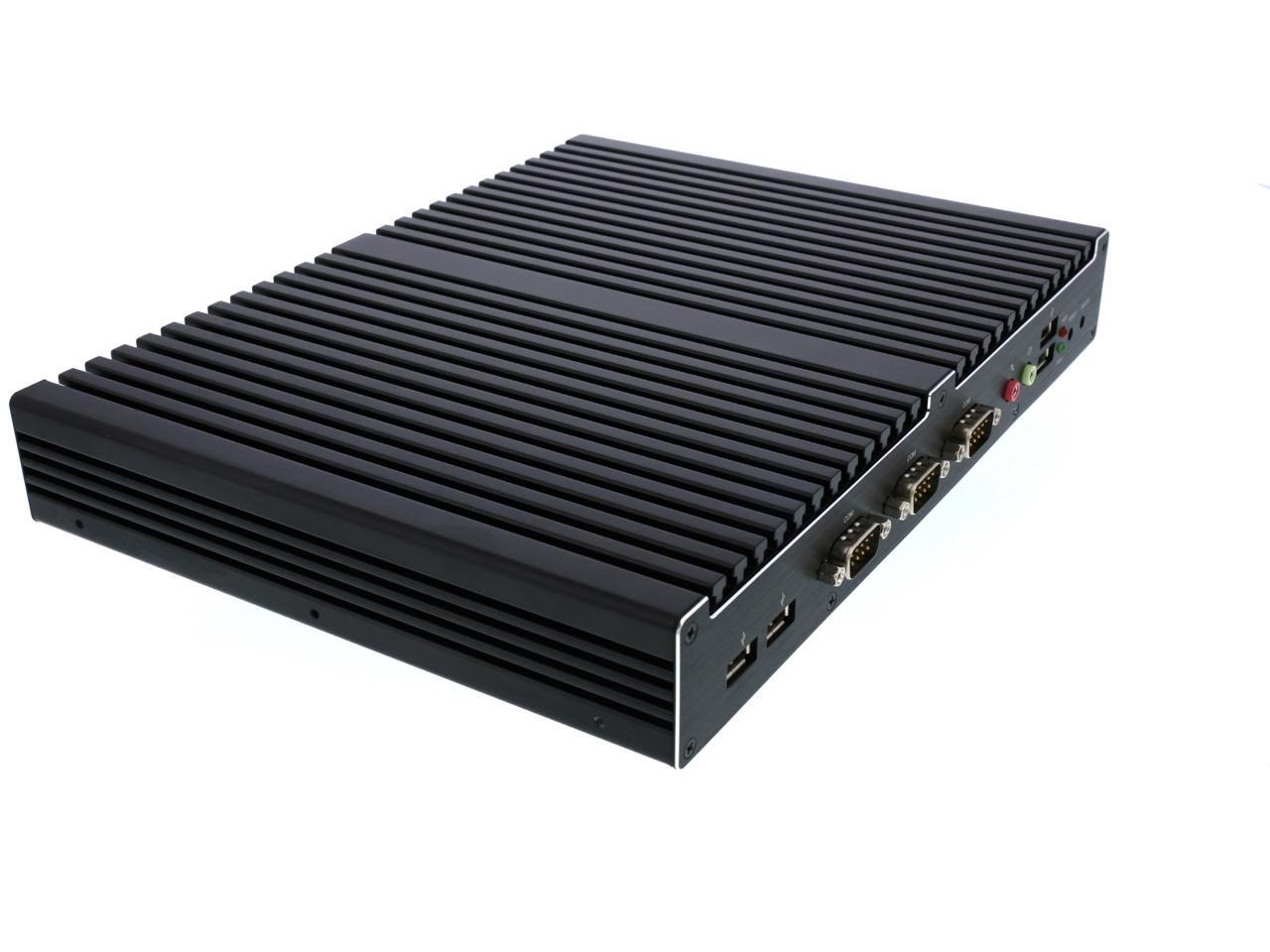

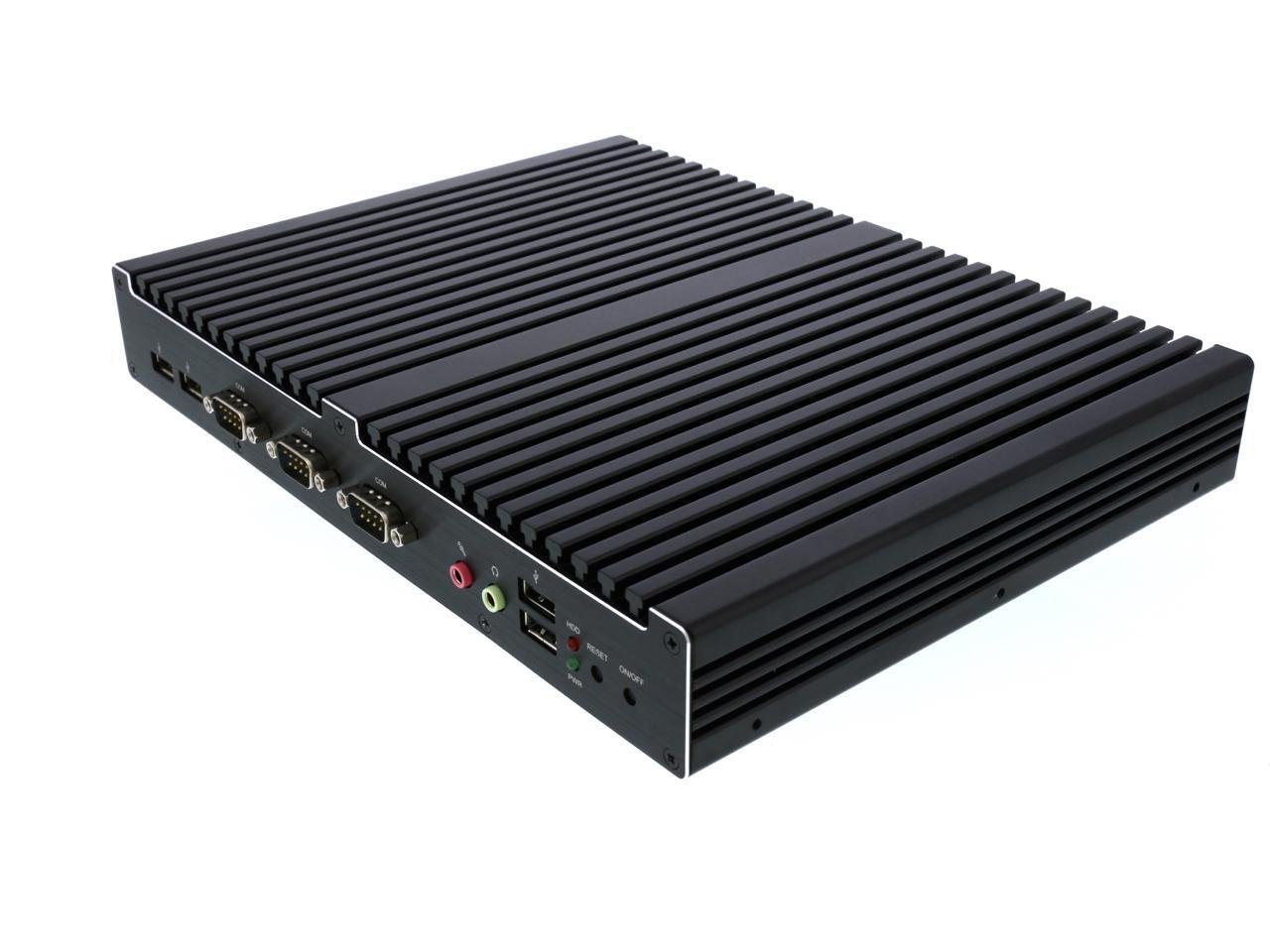

Main image of JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) Barebone100%

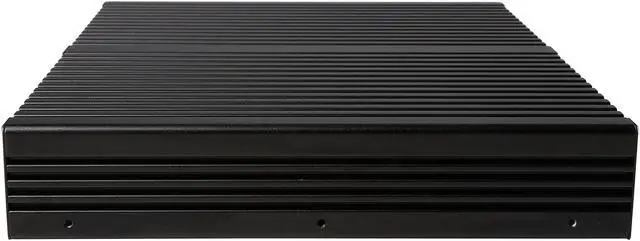

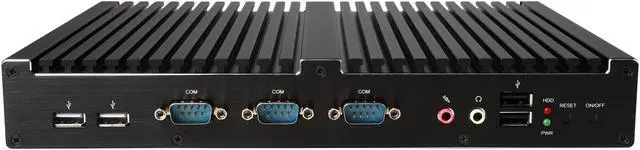

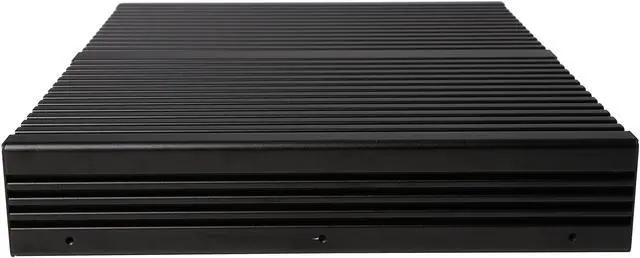

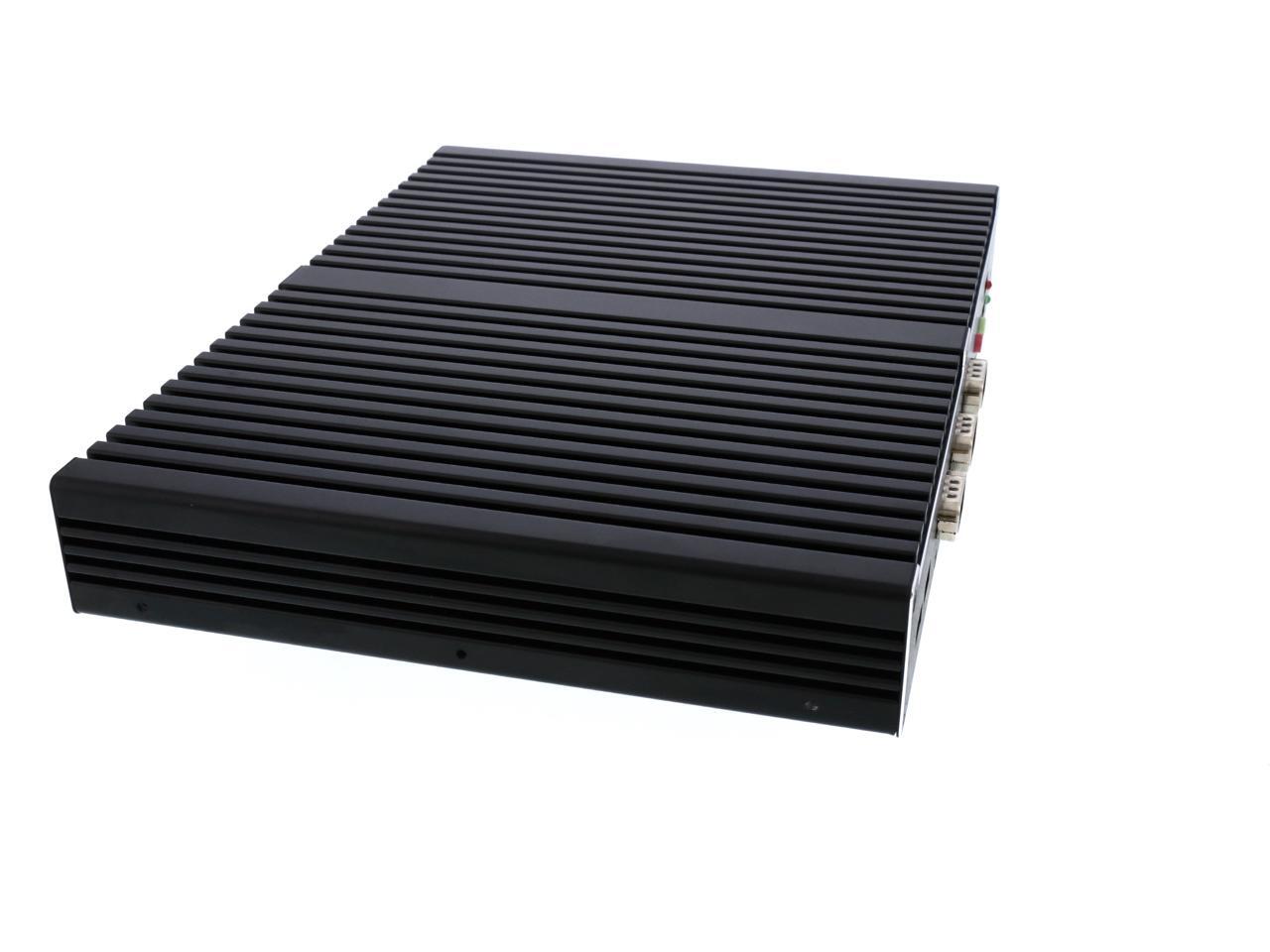

Alt view image 2 of 6 - JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) BareboneAlt view image 3 of 6 - JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) BareboneAlt view image 4 of 6 - JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) BareboneAlt view image 5 of 6 - JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) BareboneAlt view image 6 of 6 - JetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) Barebone360°image360°CloseProduct Images / Videos360°LOADING...Shop All JETWAY ProductsJetWay HBJC511F9K-1047-B Intel HM65 (AKA Cougar Point) 1 * HDMI (up to 1920 x 1080) Barebone Be the first to review this product...
  • Intel Celeron 1047UE Dual Core Mobile Processor 1.4 GHz @ 17W (FCBGA1023)
  • Intel HM65 (AKA Cougar Point)
  • 2 x 204Pin SO-DIMM DDR3 1600
  • Intel HD2500 Graphics
SpecsReviews

Learn more about the JETWAY HBJC511F9K-1047-B

General
Brand JetWay
Model HBJC511F9K-1047-B
Color Black
CPU Supported
CPU Type Intel Celeron 1047UE Dual Core Mobile Processor 1.4 GHz @ 17W (FCBGA1023)
Chipset
North Bridge Intel HM65 (AKA Cougar Point)
Memory Supported
Memory installed No Memory
Memory slot 2 x 204Pin SO-DIMM
Memory Type Supported DDR3 1600
Max Memory Supported 16GB
Dual Channel Memory Supported Yes
Expansion Slots
Other 1 * mSATA / Mini PCIE Combo Slot (Full-size)
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA3 6Gb/s Connector1 x SATA2 3Gb/s Connectors
Graphics
Onboard Video Intel HD2500 Graphics
Audio
Onboard Audio Realtek ALC662
Communications
First LAN Intel i211AT
Max LAN Speed 10/100/1000Mbps
Extension Bays
2.5" Internal bays 1

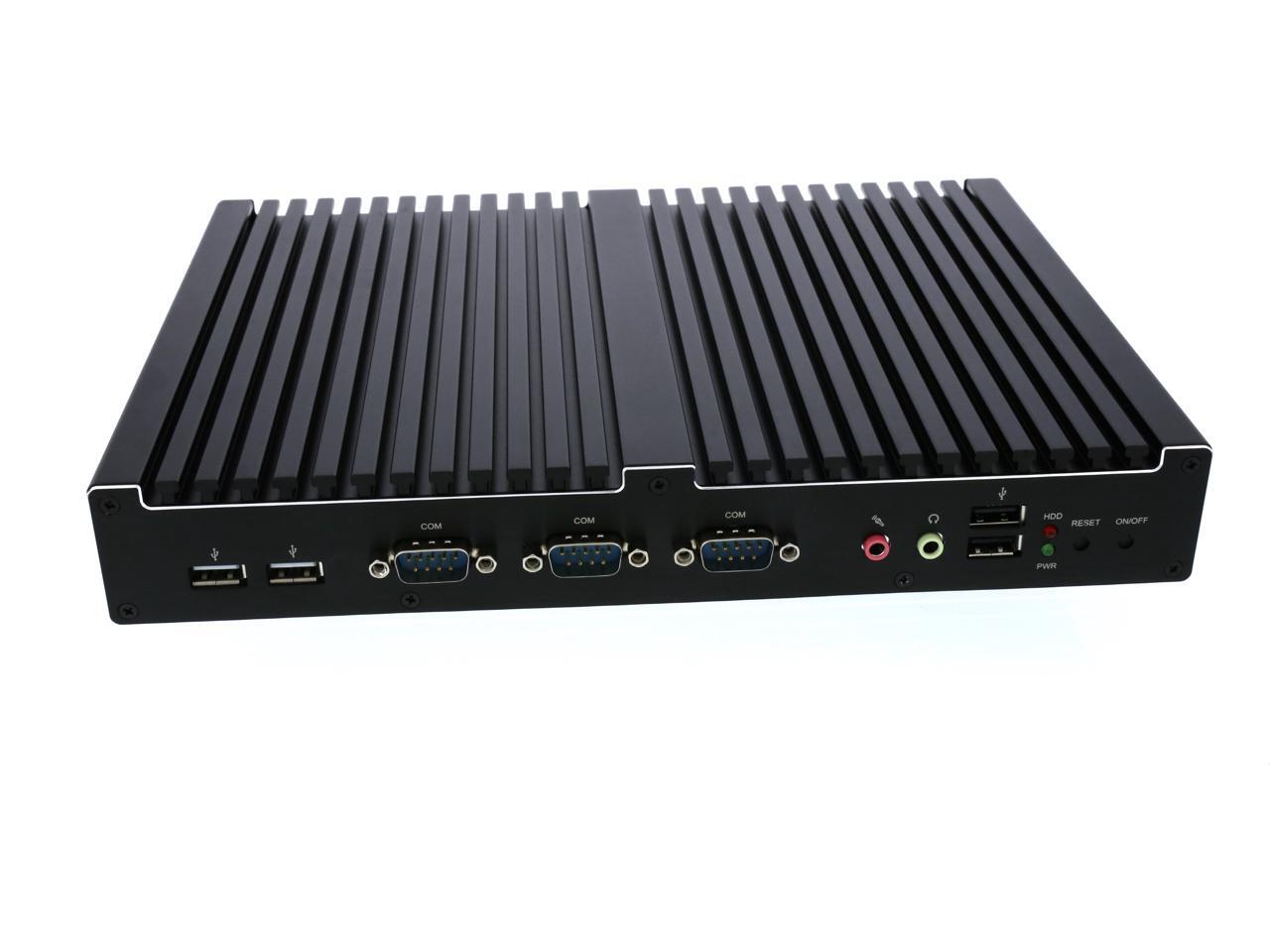

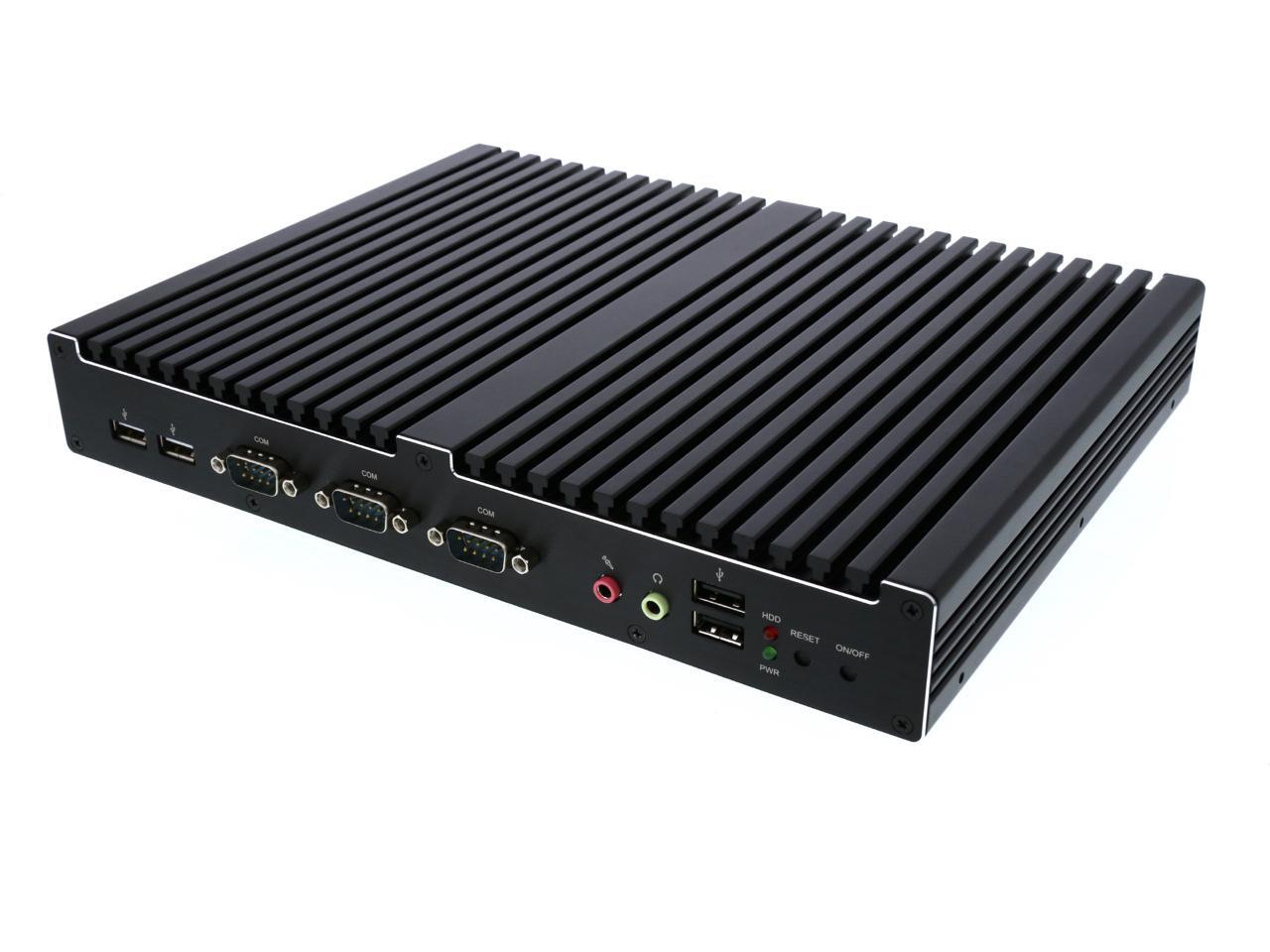

Front Panel Ports
Front USB 4 * USB 2.0 ports
Front Audio Ports 1 * Line-out jack1 * MIC-in jack
Other Front Ports 1 * Power Button1 * Reset Button1 * Power LED1 * HDD LED3 * COM ports

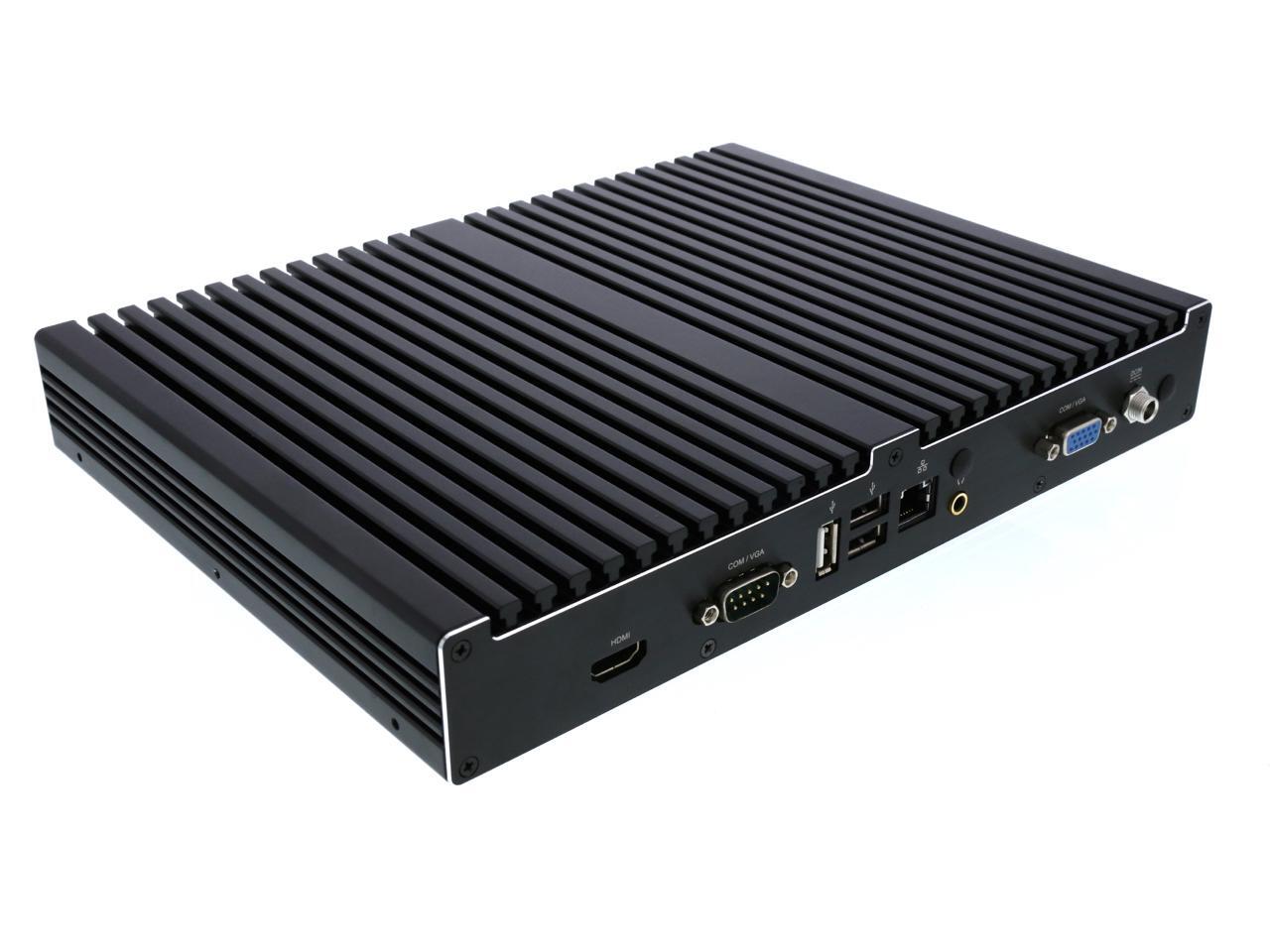

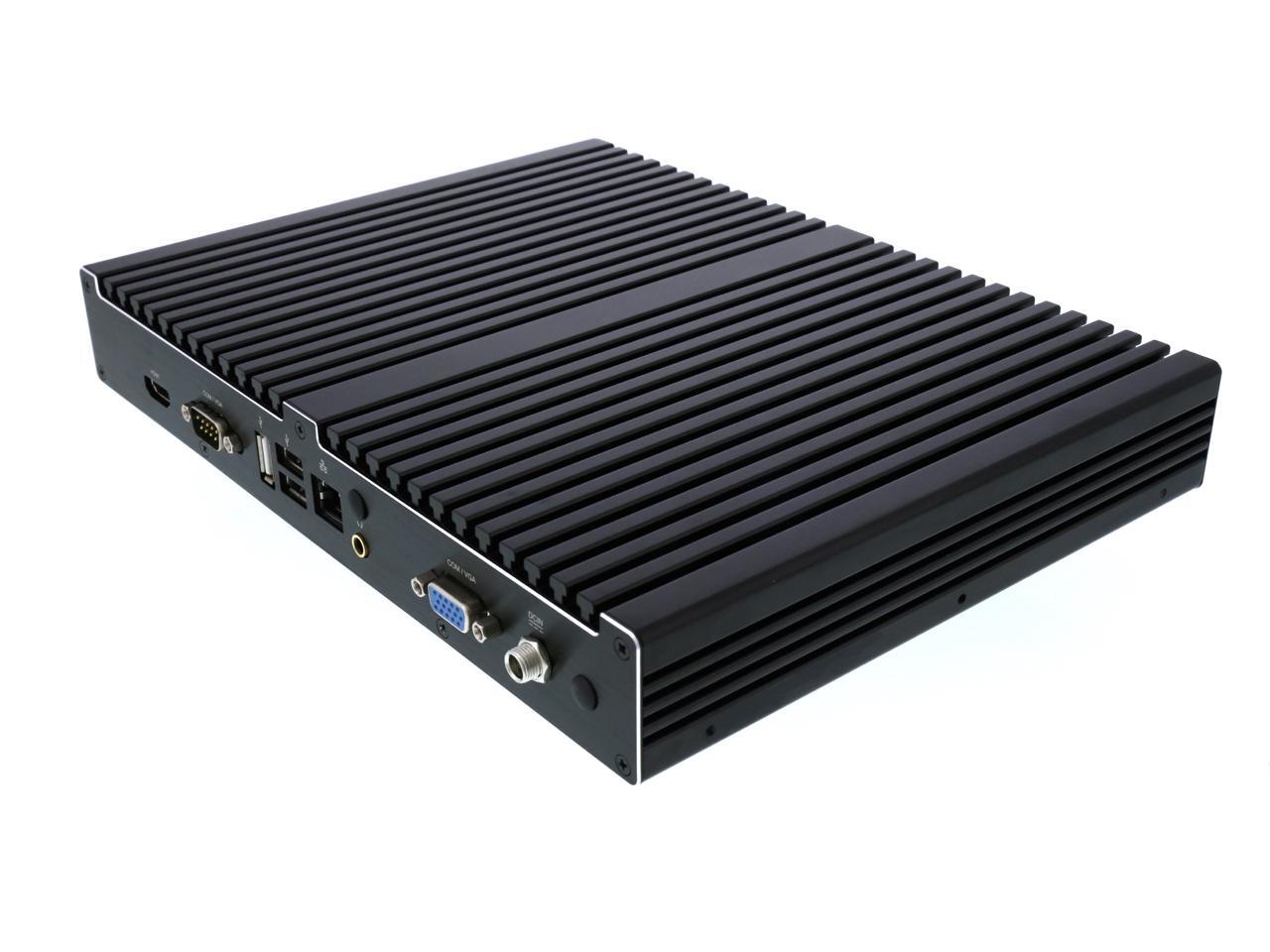

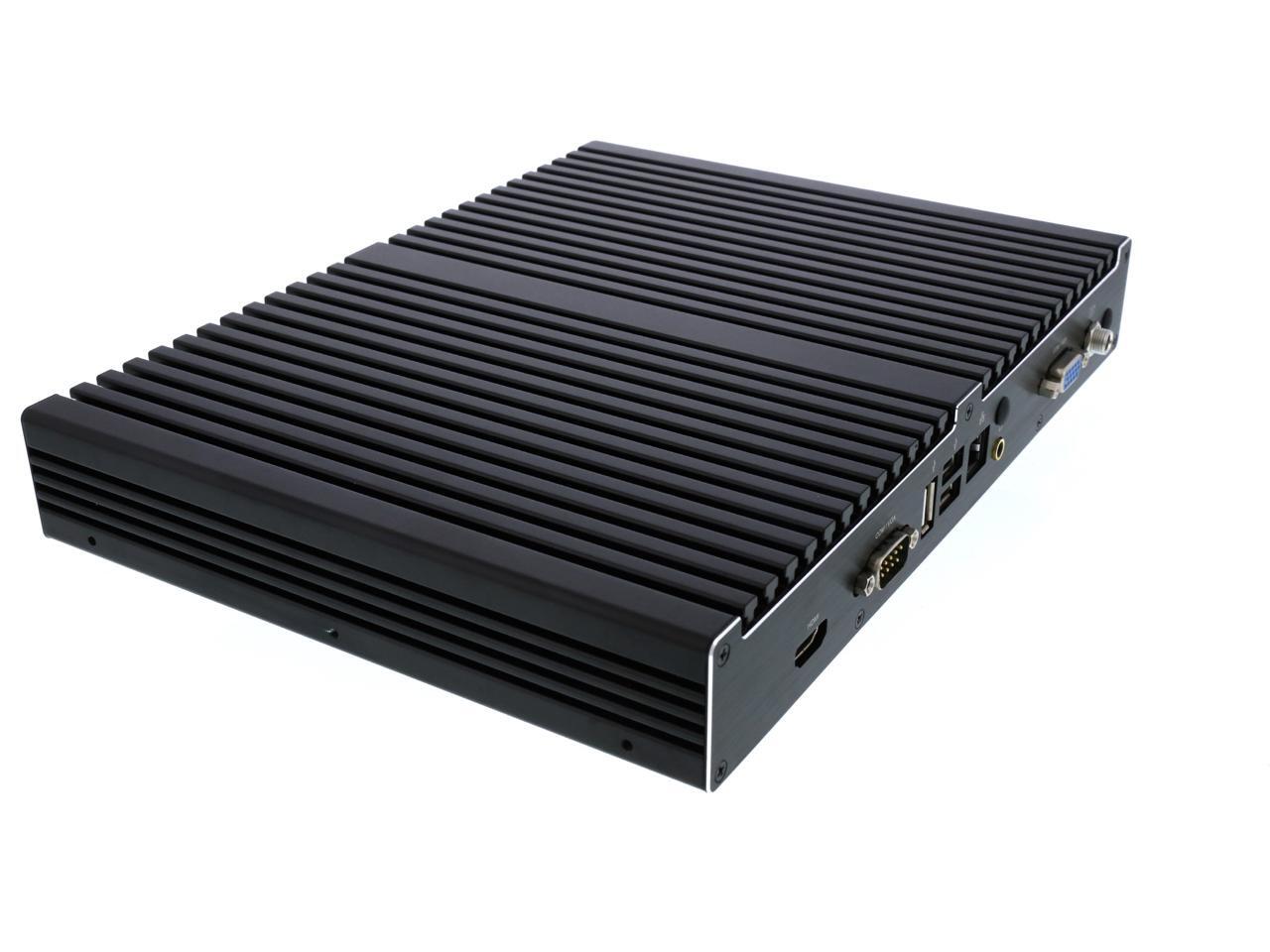

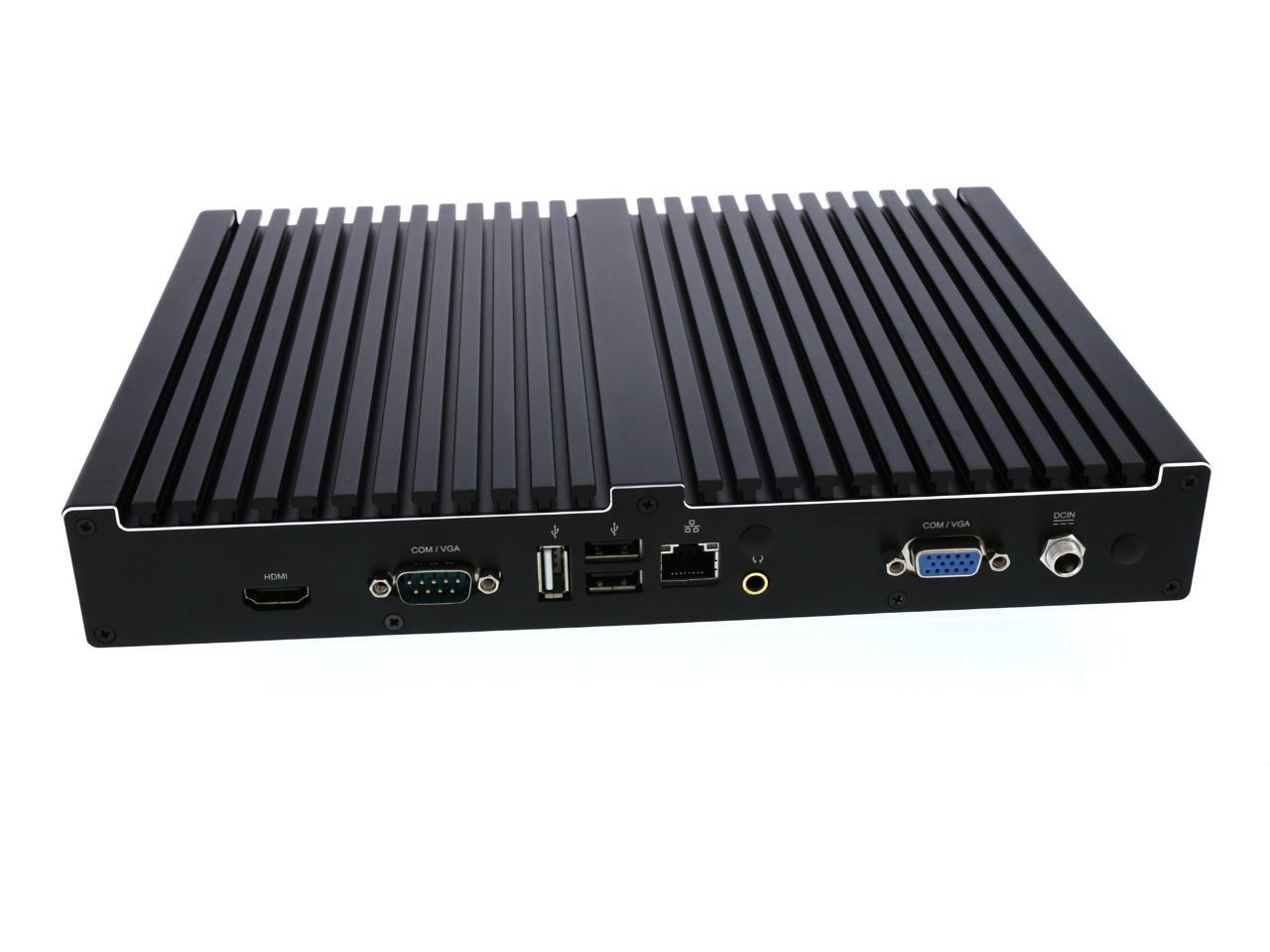

Back Panel Ports
VGA 1
HDMI 1 * HDMI (up to 1920 x 1080)
Rear USB 3 * USB 2.0 ports
RJ45 1
Other Rear Ports 1 * +9 ~ +24V DC-in jack1 * RS232/422/485 jumperless COM port1 * Line-out jack
Physical SPEC
Dimensions 1.5" x 10.39" x 7.85"
Features
Features 3rd Generation Intel Mobile Celeron ULV ProcessorEmbedded Long-life Series, Lifecycle through Q1'2018Thin Mini-ITX Form Factor Barebone, Only 38mm HeightOnboard +9V~+24V Wide Range Power DC-inECO-design for EuP/ErP
Packaging

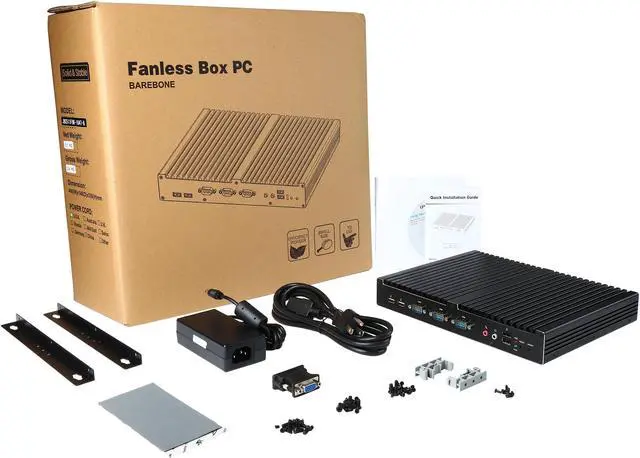

Package Contents Standard Accessory:12V 60W AC-DC Adapter x1Power Cord x1Wall Mount KitDVI-to-VGA adapter x1DIN RAIL x2DVD Disk x1Manual x1
Additional Information
First Listed on Newegg June 24, 2015
