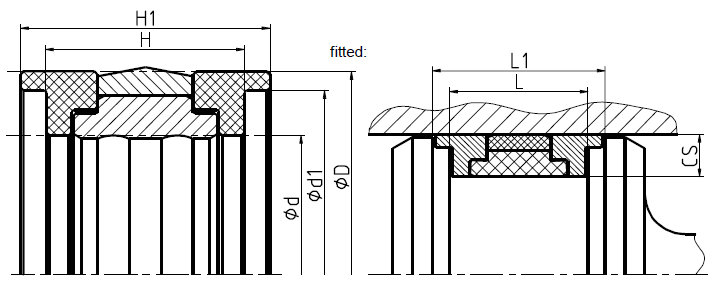

K09-H

Hydraulic, double-acting

Profile-ring activated compact Piston Seal with integrated guiding elements. Designed for high pressure ranges. Excellent static sealing capacity. Mainly used in mining and tunnelling industries.

 Temperature Range  Max Speed  Max Pressure Sealing Element Energizer Back-up Ring
 -20 °C … to +100 °C 0.3 m/s 1500 bar (21 700 psi) H-ECOPUR ECORUBBER 1 ECOTAL/ECOMID
 -30 °C … to +100 °C 0.3 m/s 1500 bar (21 700 psi) G-ECOPUR ECORUBBER 1 ECOTAL/ECOMID
