Give Product Feedback Email Print Home|Products|Temperature Sensors & Transmitters|ST-W Series|ST-W3-XNB ST-W3-XNB | Kele | Temperature Sensors & Transmitters

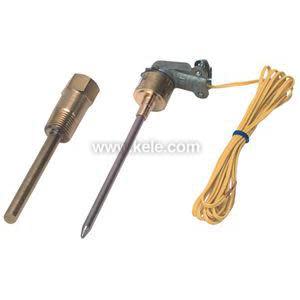

Immersion Temperature Sensor, 10K Type III Thermistor, Sensor with Standard Brass Well, 1/2 in MNPT Brass Close Nipple

Brand:Kele

MPN:ST-W3-XNB

SKU:ST-W3-XNB

List Price:

$132.00

Today's Price:

$68.64

Log in for customized pricing catalog pageLead time of 3 days. Chat with Kele experts now ADD TO CART

product specifications

Type

Thermistor

Probe Length

4.87 in

Sensor Element

10K Type 3 Thermistor

Accessory

TCC-111,TCC-12,UR

Feature

Brass Close Nipple,Brass Well

Application

Hydronic HVAC

Output Signal

Resistance

product series specifications

Accuracy: ±0.36°F (0.2°C)

Thermistor: ±0.36°F (0.2°C)

RTD:

Type 63: ±0.72°F (0.40°C)

Type 71: +/-0.0774°F (0.043°C)

Type 81, 85: ±0.27°F (0.15°C)

Type 91: ±0.54°F (0.30°C)

Sensor Type:

Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ

RTD:

Type 63: 1000Ω Nickel

Type 71, 81: 100Ω Pt 385 Curve

Type 85: 1000Ω Pt 385 Curve

Type 91: 1000Ω Pt 375 Curve

Temperature Range: -40° to 221°F (-40° to 105°C)

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Temperature Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: Max 0.04% after 1k hours @ 500 °F

Heat Dissipation: 2.7 mW/°C (power needed to raise the temperature by 1°C)

Enclosure Rating: Depends on model

Mounting: Directly to pipe in supplied brass well, no adapters needed for standard boxes, customer-supplied 1/2" Thredolet® required in pipe

Wiring Terminations: 8' (2.4m) of 24 AWG pigtails with pre-stripped ends, type 71 & 81 have 18" leads

Weight:0.65 lb (0.3 Kg) w/o well

Approvals: CE

Warranty: Lifetime

product series features

• Lifetime warranty
• ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
• ±1 degrees F (0.53 degrees C) RTD accuracy
• Wide selection of thermistor and RTD curves
• Brass thermowell for quick temperature response
• Adaptable with many options
• Easy to mount and remove from thermowell
• Waterproof stainless steel probe

more information & related documents

Series Description

The Precon Model ST-W Immersion Sensor from PreCon provides precise remote temperature sensing for Building Automation Systems, BAS, and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is sealed with a temperature conductive compound in a 4-7/8 in (12.4 cm) stainless steel tube and brass fitting. A brass thermowell is the standard well provided with each sensor. A Greenfield connector is factory installed for flexible connection. The probe assembly on these immersion sensors are removable for replacement without the draining system.

Kele Description

TEMP SENSOR, IMMERS, 10K TYPE III, 4.875" PROBE, NO ENCL

Manufacturer

Kele
