Kramer VM-8HN 1:8 Plus 2 HDMI 4K Ultra-HD Distribution Amplifier - (EU Power Supply)

ITEM #: KR-VM-8HN-EU MFG #: VM-8HN-EU

Close Video

Watch the Video!

•
•

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute. (800) 522-2025Email

Items similar to the KR-VM-8HN-EU

• KanexPro SP-HD1X44K 1x4 HDMI Splitter with 4K Cinema Resolutions & EDID Selector

  KAN-SP-HD1X44K

  Our Price: $104.95
• Ocean Matrix OMX-HDMI-1X2-4K2 4K UHD 1x2 HDMI 2.0 Splitter/Distribution Amplifier with EDID

  OMX-HDMI-1X2-4K2

  Our Price: $85.95
• Kramer VM-2H2 1:2 4K HDR HDMI Distribution Amplifier

  KR-VM-2H2

  Our Price: $332.00
• Ocean Matrix OMX-HDMI-1X4-4K2 4K UHD 1x4 HDMI 2.0 Splitter/Distribution Amplifier with EDID

  OMX-HDMI-1X4-4K2

  Our Price: $132.49

Overview Required Accessories Recommended Accessories Reviews Attachments Required Accessories Recommended Accessories People Also Bought Similar Products

VM-8HN-EU - Overview

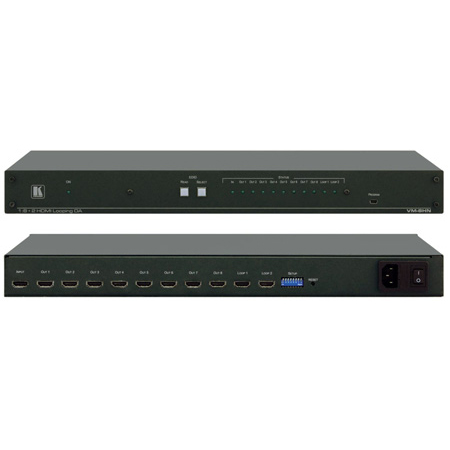

The VM-8HN is a looping 4K ultra-HD distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to eight identical outputs and two loops.

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - Deep Color, x.v.Color, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD.
  • 3D Pass-Through.
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
  • Default EDID - For fast and efficient connection of the unit.
  • Video Wall Support - With selectable output delay.
  • Automatic 5V Turn Off - For remotely powering off attached devices.
  • Active Output LED Indicators.
  • 2 Looping Outputs - Allow monitoring and cascading to additional DAs.
  • Worldwide Power Supply - 100-240V AC.
  • Size - Standard 19" (1U). Rack "ears" included.

• Specifications:

  • INPUT: 1 HDMI connector.
  • OUTPUTS: 10 HDMI connectors (8 output, 2 loop).
  • MAX. DATA RATE: 8.91Gbps (2.97Gbps per data channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • CONTROLS: EDID SELECT and READ buttons for selecting and storing EDID information.
  • INDICATOR LEDs: OUTPUTS 1 to 8, LOOP 1 and 2 and ACTIVE input LED.
  • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
  • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
  • HUMIDITY: 10% to 90%, RHL non-condensing.
  • POWER CONSUMPTION: 100-240V AC, 50/60Hz 28VA.
  • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
  • WEIGHT: 3.5kg (7.7lbs) approx.
  • INCLUDED ACCESSORIES: Power cord.

• GTIN:

  7291063070991
