Mainboard Asrock H110M-DVS R2.0 - An Phát Computer

Hình ảnhsản phẩm Thông sốkỹ thuật

Unique Feature	ASRock Super Alloy- Matte Black PCB- High Density Glass Fabric PCBASRock Full Spike ProtectionASRock Live Update & APP Shop
CPU	- Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)- Supports CPU up to 91W- Digi Power design- 5 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology
Chipset	- Intel® H110
Memory	- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 64Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 5.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment
Audio, Video and Networking
Graphics	- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530- Pixel Shader 5.0, DirectX 12- Max. shared memory 1024MB*- Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Accelerated Media Codecs: HEVC, VP8, VP9- Supports HDCP with DVI-D Port- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port *The size of maximum shared memory may vary from different operating systems.**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection (ASRock Full Spike Protection)- ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111GR / RTL8111C- Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports LAN Cable Detection- Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*- 2 x PCI Express 2.0 x1 Slots *Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x Print Port Header- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)- 2 x Chassis Fan Connectors (4-pin)*- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))** *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**USB_11_12 is shared with USB_9_10.
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone *ACPI wake-up function is supported on the rear USB ports only.
Other Features / Miscellaneous
Software and BIOS	Software- ASRock Disk Health Report- ASRock USB Key- ASRock APP Charger- ASRock XFast LAN- ASRock XFast RAM- ASRock Fast Boot (Fast Boot, Restart to UEFI)*UEFI- ASRock EZ Mode- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Crashless BIOS- ASRock OMG (Online Management Guard)- ASRock UEFI Tech Service- ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables
Hardware Monitor	- CPU/Chassis temperature sensing- CPU/Chassis Fan Tachometer- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO
Form Factor	- Micro ATX Form Factor: 8.9-in x 7.2-in, 22.6 cm x 18.3 cm- Solid Capacitor design
OS	- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications	- FCC, CE, WHQL

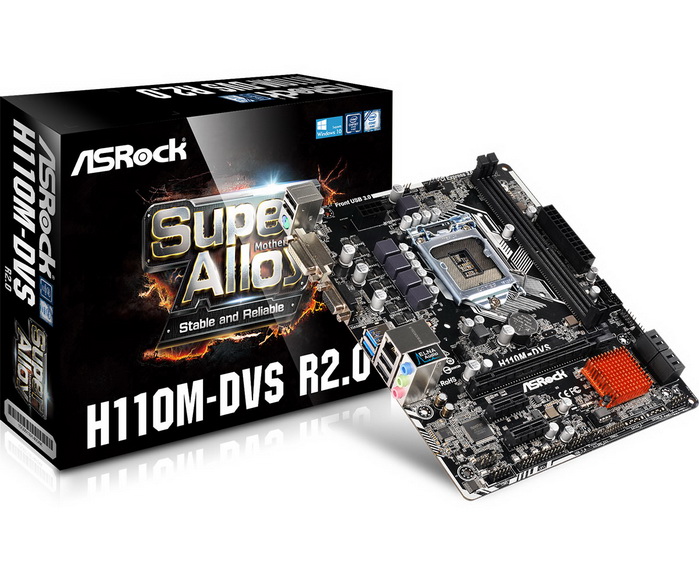

Mainboard Asrock H110M-DVS R2.0

Mã SP: MAAR0020

19.912

So sánh

0 đánh giá

Tình trạng: Liên hệ

ASRock Super Alloy Supports 6th Generation Intel® Core™ Processors (Socket 1151) Digi Power, 5 Power Phase design Supports Dual Channel DDR4 2133 1 PCIe 3.0 x16, 2 PCIe 2.0 x1 Graphics Output Options: DVI-D, D-Sub 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps 4 SATA3 4 USB 3.0 (2 Front, 2 Rear) Supports Full Spike Protection, ASRock Live Update & APP Shop

Giá khuyến mại:	Liên hệ [Giá đã có VAT]
🎁Deal nhân đôi - Rinh quà gấp bội: Từ 1/12 đến 25/12/2025 nhận ngay quà tặng với đơn hàng từ 2 triệu Xem chi tiết
🎁DEAL SỐC KHÔNG PHANH – CHỐT NHANH KẺO HẾT: Giảm giá sản phẩm Laptop Asus lên tới 50% tại Showroom Lý Thường Kiệt Xem chi tiết

* Bảo hành: 36 tháng

ĐĂNG KÝ NHẬN THÔNG TIN

🎁 ĐĂNG KÝ NHẬN THÔNG TIN

Có 0 người đã đăng ký nhận thông tin. Xem Danh sách

người đã đăng ký nhận thông tin

X

Họ tên	Số điện thoại	Thời gian đăng ký

Mua hàng Online toàn quốc: (Hotline: 1900.0323 - Phím 1 hoặc 0913.367.005)

Hiện đang có tại showroom:

* Showroom miền Bắc: * Showroom miền Nam: Kho hàng: Liên hệ

Thông số kỹ thuật

Unique Feature	ASRock Super Alloy- Matte Black PCB- High Density Glass Fabric PCBASRock Full Spike ProtectionASRock Live Update & APP Shop
CPU	- Supports 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)- Supports CPU up to 91W- Digi Power design- 5 Power Phase design- Supports Intel® Turbo Boost 2.0 Technology
Chipset	- Intel® H110
Memory	- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 2133 non-ECC, un-buffered memory- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 32GB*- Supports Intel® Extreme Memory Profile (XMP) 2.0 *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 64Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 5.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.0V, VCCIO Voltage Multi-adjustment
Audio, Video and Networking
Graphics	- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 510/530- Pixel Shader 5.0, DirectX 12- Max. shared memory 1024MB*- Dual graphics output: Support DVI-D and D-Sub ports by independent display controllers- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz- Supports Accelerated Media Codecs: HEVC, VP8, VP9- Supports HDCP with DVI-D Port- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port *The size of maximum shared memory may vary from different operating systems.**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*- Supports Surge Protection (ASRock Full Spike Protection)- ELNA Audio Caps *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s- Realtek RTL8111GR / RTL8111C- Supports Lightning/ESD Protection (ASRock Full Spike Protection)- Supports LAN Cable Detection- Supports PXE
Expansion / Connectivity
Slots	- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*- 2 x PCI Express 2.0 x1 Slots *Supports NVMe SSD as boot disks
Storage	- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector	- 1 x Print Port Header- 1 x COM Port Header- 1 x TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)- 2 x Chassis Fan Connectors (4-pin)*- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))** *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**USB_11_12 is shared with USB_9_10.
Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port- 1 x D-Sub Port- 1 x DVI-D Port- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)- HD Audio Jacks: Line in / Front Speaker / Microphone *ACPI wake-up function is supported on the rear USB ports only.
Other Features / Miscellaneous
Software and BIOS	Software- ASRock Disk Health Report- ASRock USB Key- ASRock APP Charger- ASRock XFast LAN- ASRock XFast RAM- ASRock Fast Boot (Fast Boot, Restart to UEFI)*UEFI- ASRock EZ Mode- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Crashless BIOS- ASRock OMG (Online Management Guard)- ASRock UEFI Tech Service- ASRock Easy Driver Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables
Hardware Monitor	- CPU/Chassis temperature sensing- CPU/Chassis Fan Tachometer- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU/Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCIO
Form Factor	- Micro ATX Form Factor: 8.9-in x 7.2-in, 22.6 cm x 18.3 cm- Solid Capacitor design
OS	- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* *To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications	- FCC, CE, WHQL
