Technology that secures access from the very basics

MIWA Electric Strike AS Series

ASR · AST · ASE / Available for B2B · B2C

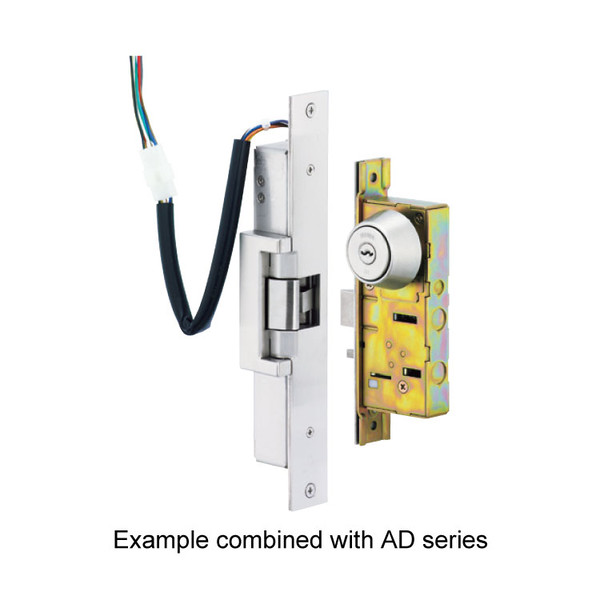

The MIWA Electric Strike AS Series is a frame-mounted electric strike used in combination with automatic locking door locks. When the door closes, the lock engages automatically, and access is controlled by electrically operating the strike when required.

It is widely applied in apartment common entrances, emergency exits, building access points, and managed areas. When integrated with access control systems, it delivers stable daily access management and reliable emergency response.

Depending on installation conditions and operational requirements, the AS Series is available in three types: ASR / AST / ASE. It supports supply for both consumer applications (B2C) and project-based installations (B2B).

Contact Us (Inquiry Form) Email Us ([email protected])

For a faster response, please share these 2 items

• Power: DC12V or DC24V
• Tyep: ASR / AST / ASE
• Door thickness : 33~42 / 42~50 / 50~58 / 58~66 mm

Power Supply & System Configuration

The AS Series is available with DC12V or DC24V power specifications and can be controlled through access control controllers or dedicated power supply units.

Lock release status and door open/close status can be monitored via dry contact outputs, enabling stable integration with a wide range of access control systems.

Model Features

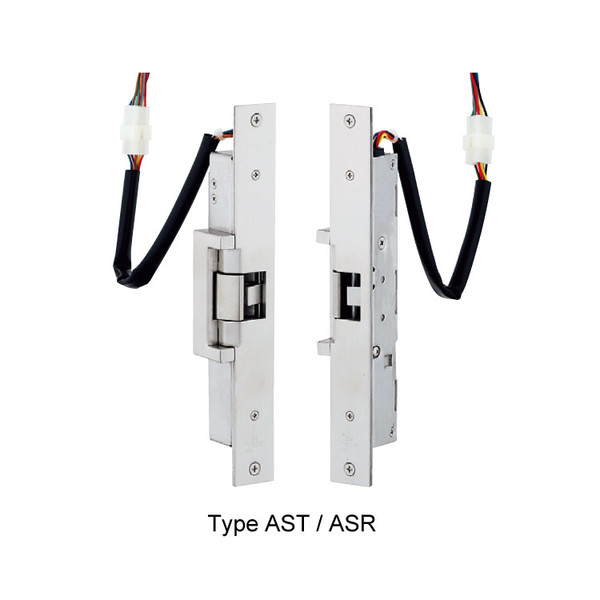

ASR Type

Unlocks when power is lost, making it suitable for emergency exits and environments where safety regulations require doors to open during power failure.

Selection guide: when doors must unlock automatically during power failure (egress/safety compliance)

AST Type

Unlocks while power is supplied, ideal for apartment entrances and controlled access areas.

Selection guide: typical choice for common entrances with access control integration

ASE Type

Momentary unlock with maintained release, suitable for spaces directly managed by authorized personnel.

Selection guide: when an authorized person wants momentary control and maintained release behavior

Specifications

• Frame cut-out / recess depth (frame preparation reference): 32 mm
• Applicable door thickness: 33–42 / 42–50 / 50–58 / 58–66 mm

Downloads (English)

Catalog Drawing

Contact Us (Inquiry Form) Email Us ([email protected]) MIWA Electric Strike, MIWA Electric Strike AS Series, MIWA AS Series, ASR AST ASE, electric strike, frame-mounted electric strike, door frame electric strike, electric lock strike, dry contact output, access control integration, DC12V electric strike, DC24V electric strike, emergency exit electric lock, apartment entrance access control, JK Corporation, JK Corp, Korea security hardware supplier
