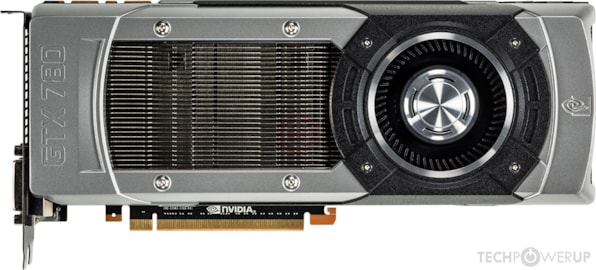

Report an Error NVIDIA GeForce GTX 780 Graphics Processor GK110 Cores 2304 TMUs 192 ROPs 48 Memory Size 3 GB Memory Type GDDR5 Bus Width 384 bit Front GPU Chip GPU Chip GPU I/O I/O Top Top Bottom Bottom PCB Front PCB Front PCB Back PCB Back

Recommended Gaming Resolutions:

  • 1366x768
  • 1600x900
  • 1920x1080
The GeForce GTX 780 was a high-end graphics card by NVIDIA, launched on May 23rd, 2013. Built on the 28 nm process, and based on the GK110 graphics processor, in its GK110-300-A1 variant, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_0, which can be problematic with newer DirectX 12 titles. The GK110 graphics processor is a large chip with a die area of 561 mm² and 7,080 million transistors. Unlike the fully unlocked GeForce GTX TITAN, which uses the same GPU but has all 2688 shaders enabled, NVIDIA has disabled some shading units on the GeForce GTX 780 to reach the product's target shader count. It features 2304 shading units, 192 texture mapping units, and 48 ROPs. NVIDIA has paired 3,072 MB GDDR5 memory with the GeForce GTX 780, which are connected using a 384-bit memory interface. The GPU is operating at a frequency of 863 MHz, which can be boosted up to 902 MHz, memory is running at 1502 MHz (6 Gbps effective). Being a dual-slot card, the NVIDIA GeForce GTX 780 draws power from 1x 6-pin + 1x 8-pin power connector, with power draw rated at 250 W maximum. Display outputs include: 2x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2. GeForce GTX 780 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card's dimensions are 267 mm x 111 mm x 38 mm, and it features a dual-slot cooling solution. Its price at launch was 649 US Dollars.

Graphics Processor

GPU Name GK110 GPU Variant GK110-300-A1 Architecture Kepler Foundry TSMC Process Size 28 nm Transistors 7,080 million Density 12.6M / mm² Die Size 561 mm² Chip Package BGA-2152

Graphics Card

Release Date May 23rd, 2013 Generation GeForce 700 Predecessor GeForce 600 Successor GeForce 900 Production End-of-life Driver Support Legacy Launch Price 649 USD Bus Interface PCIe 3.0 x16 Reviews 155 in our database

Relative Performance

GeForce RTX 5090 1231% GeForce RTX 4090 939% GeForce RTX 5080 811% GeForce RTX 4080 SUPER 724% GeForce RTX 4080 718% Radeon RX 7900 XTX 717% GeForce RTX 5070 Ti 707% Radeon RX 9070 XT 676% Radeon RX 7900 XT 618% GeForce RTX 3090 Ti 607% GeForce RTX 4070 Ti SUPER 606% Radeon RX 9070 605% GeForce RTX 4070 Ti 555% GeForce RTX 5070 549% GeForce RTX 3090 541% GeForce RTX 3080 Ti 534% GeForce RTX 4070 SUPER 517% Radeon RX 7900 GRE 509% Radeon RX 6950 XT 500% GeForce RTX 4070 494% Radeon RX 6900 XT 489% GeForce RTX 3080 481% Radeon RX 7800 XT 479% Radeon RX 6800 XT 463% GeForce RTX 5060 Ti 16 GB 429% GeForce RTX 5060 Ti 8 GB 427% Radeon RX 7700 XT 420% Radeon RX 9060 XT 16 GB 408% GeForce RTX 3070 Ti 407% Radeon RX 6800 393% Radeon RX 9060 XT 8 GB 385% GeForce RTX 3070 381% GeForce RTX 2080 Ti 377% GeForce RTX 4060 Ti 8 GB 376% GeForce RTX 5060 370% Radeon RX 6750 XT 361% GeForce RTX 3060 Ti 333% Radeon RX 6700 XT 327% GeForce RTX 2080 SUPER 304% Radeon RX 7600 XT 301% GeForce RTX 4060 301% Arc B580 300% GeForce RTX 5050 292% GeForce RTX 2080 290% Radeon RX 6650 XT 284% Radeon RX 7600 283% GeForce RTX 2070 SUPER 270% GeForce GTX 1080 Ti 267% Arc A770 266% GeForce RTX 3060 12 GB 257% Radeon RX 6600 XT 253% Radeon VII 252% Arc A750 247% Radeon RX 5700 XT 242% GeForce RTX 2070 238% Radeon RX 6600 228% Arc A580 221% GeForce RTX 2060 SUPER 221% Radeon RX Vega 64 211% GeForce RTX 2060 205% Radeon RX 5700 204% GeForce GTX 1080 200% GeForce GTX 1070 Ti 196% Radeon RX 5600 XT 194% Radeon RX Vega 56 184% GeForce GTX 1070 178% GeForce GTX 1660 SUPER 168% GeForce GTX 1660 Ti 168% GeForce GTX 980 Ti 159% GeForce RTX 3050 8 GB 159% Radeon R9 FURY X 157% GeForce GTX 1660 155% Radeon RX 590 146% Radeon R9 FURY 143% GeForce GTX 980 141% GeForce GTX 1650 SUPER 139% Radeon RX 6500 XT 138% Radeon RX 5500 XT 136% Radeon RX 580 135% GeForce GTX 1060 6 GB 132% Radeon R9 390X 130% GeForce GTX 690 129% Radeon RX 480 127% Radeon HD 7990 127% GeForce GTX 780 Ti 125% GeForce GTX 970 121% Radeon R9 290X 121% Radeon R9 390 119% Radeon RX 570 118% Radeon R9 290 112% Radeon RX 470 110% GeForce GTX 1650 104% Radeon RX 6400 102% Arc A380 100% GeForce GTX 780 100% Radeon HD 7970 GHz Edition 90% GeForce GTX 590 90% Radeon R9 280X 89% Radeon HD 6990 87% GeForce GTX 1050 Ti 83% GeForce GTX 680 81% Radeon R9 380 80% Radeon HD 7970 80% GeForce GTX 770 80% Radeon R9 285 79% GeForce GTX 960 77% GeForce GTX 670 75% Radeon HD 5970 68% GeForce GTX 1630 68% Radeon HD 7950 66% GeForce GTX 1050 66% GeForce GTX 760 66% GeForce GTX 580 66% GeForce GTX 660 Ti 65% Radeon R9 270X 65% Radeon HD 7870 GHz Edition 63% GeForce GTX 950 62% Radeon RX 560 59% GeForce GTX 570 58% GeForce GTX 660 58% Radeon RX 460 58% Radeon R7 370 58% Radeon HD 6970 56% GeForce GTX 480 53% Radeon HD 7850 52% GeForce GTX 295 51% Radeon HD 6950 49% GeForce GTX 750 Ti 49% Radeon HD 4870 X2 48% GeForce GTX 560 Ti 48% Radeon HD 5870 47% Radeon HD 6870 44% GeForce GTX 470 42% GeForce GTX 650 Ti 40% Radeon HD 5850 40% GeForce GTX 285 37% Radeon HD 6850 36% GeForce GTX 280 34% Radeon HD 7770 GHz Edition 34% GeForce GTX 275 34% GeForce GT 1030 33% GeForce GTX 460 33% Radeon HD 4890 32% Radeon HD 6790 31% Radeon HD 5830 30% GeForce GTX 650 28% GeForce GTX 550 Ti 28% Radeon HD 4870 27% GeForce GTX 260 27% Radeon HD 5770 27% Radeon HD 7750 26% Radeon HD 5750 23% GeForce GTS 450 22% GeForce GTS 250 22% Radeon HD 4850 21% Radeon HD 4770 20% Radeon HD 4830 19% Radeon HD 6670 18% GeForce 9800 GT 18% GeForce GT 640 17% Radeon HD 5670 16% GeForce 9600 GT 15% GeForce GT 240 13% GeForce GT 440 13% Radeon HD 4670 12% Radeon HD 5570 11% GeForce GT 430 11% GeForce GT 220 8% GeForce GT 520 7% Radeon HD 6450 6% Radeon HD 5450 5% Radeon HD 4550 4% GeForce 9400 GT 3% GeForce 210 3% Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.

Clock Speeds

Base Clock 863 MHz Boost Clock 902 MHz Memory Clock 1502 MHz 6 Gbps effective

Memory

Memory Size 3 GB Memory Type GDDR5 Memory Bus 384 bit Bandwidth 288.4 GB/s

Render Config

Shading Units 2304 TMUs 192 ROPs 48 SMX Count 12 L1 Cache 16 KB (per SMX) L2 Cache 1536 KB

Theoretical Performance

Pixel Rate 43.30 GPixel/s Texture Rate 173.2 GTexel/s FP32 (float) 4.156 TFLOPS FP64 (double) 173.2 GFLOPS (1:24)

Board Design

Slot Width Dual-slot Length 267 mm 10.5 inches Height 111 mm 4.4 inches Width 38 mm 1.5 inches Weight 1400 g TDP 250 W Suggested PSU 600 W Outputs 2x DVI1x HDMI 1.4a1x DisplayPort 1.2 Power Connectors 1x 6-pin + 1x 8-pin Board Number P2083 SKU 20, P2083 SKU 21

Graphics Features

DirectX 12 (11_0) OpenGL 4.6 OpenCL 3.0 Vulkan 1.2.175 CUDA 3.5 Shader Model 6.5 (5.1)

GK110 GPU Notes

NVENC: 1st Gen NVDEC: 1st Gen PureVideo HD: VP5 VDPAU: Feature Set D L1 Cache is configurable from 16 KB up to 48 KB per SMX GK110 has 5 GPCs each capable of 8 pixels per clock. This limits complete GPU to 40 pixels per clock and because of that it can't feed all 48 ROPs when they all require data at the same time. Additional ROPs however can be used for MSAA (because it doesn't require additional data from rasterizers, while giving more work to ROPs.) Latest Drivers: Windows XP / Server 2003 x64: Quadro Release R319 U2 (321.01) Windows Vista: GeForce Release 365.19 Quadro Release R346 U7 (348.40) / R352 BETA (352.86) Windows 7 / 8 / 8.1 / 10 / 11 (x32 / x64): GeForce Release 391.35 / 475.06 Quadro Release R390 U9 (392.37) / R470 U16 (474.82) Data Center Release 427.11 Tesla Release 441.22 Windows 10 / 11 x64: GeForce Release 475.06 Quadro Release R470 U16 (474.82) Data Center Release 474.82

Retail boards based on this design (59)

Name GPU Clock Boost Clock Memory Clock Other Changes
AFOX GTX 780 863 MHz 902 MHz 1502 MHz
ASL GTX 780 King Kong 967 MHz 1019 MHz 1502 MHz Triple-slot
ASUS GTX 780 863 MHz 902 MHz 1502 MHz
ASUS GTX 780 DirectCU II 863 MHz 902 MHz 1502 MHz 285 mm/11.2 inches
ASUS GTX 780 DirectCU II OC 889 MHz 941 MHz 1502 MHz 285 mm/11.2 inches
Colorful GTX 780 863 MHz 902 MHz 1502 MHz
Colorful GTX 780 OC 967 MHz 1020 MHz 1603 MHz
Colorful iGame GTX 780 1006 MHz 1058 MHz 1502 MHz
Colorful iGame GTX 780 Kudan 1124 MHz 1176 MHz 1603 MHz 305 mm/12 inches, Triple-slot
ELSA GTX 780 863 MHz 902 MHz 1502 MHz
EMTEK GTX 780 863 MHz 902 MHz 1502 MHz
EVGA GTX 780 863 MHz 902 MHz 1502 MHz
EVGA GTX 780 Dual CLASSIFIED Hydro Copper 993 MHz 1046 MHz 1502 MHz
EVGA GTX 780 Dual CLASSIFIED w/ ACX Cooler 993 MHz 1046 MHz 1502 MHz
EVGA GTX 780 Dual FTW w/ ACX Cooler 980 MHz 1033 MHz 1502 MHz
EVGA GTX 780 FTW w/ ACX Cooler 980 MHz 1033 MHz 1502 MHz
EVGA GTX 780 Hydro Copper 980 MHz 1033 MHz 1502 MHz
EVGA GTX 780 SC 941 MHz 993 MHz 1502 MHz
EVGA GTX 780 SC w/ ACX Cooler 967 MHz 1020 MHz 1502 MHz
EVGA GTX 780 w/ ACX Cooler 863 MHz 902 MHz 1502 MHz
EVGA GTX 780 w/ EVGA Cooler 863 MHz 902 MHz 1502 MHz
Gainward GTX 780 863 MHz 902 MHz 1502 MHz
Gainward GTX 780 Phantom 902 MHz 954 MHz 1502 MHz 274 mm/10.8 inches
Gainward GTX 780 Phantom GLH 980 MHz 1032 MHz 1552 MHz 274 mm/10.8 inches
Galaxy GTX 780 863 MHz 902 MHz 1502 MHz
Galaxy GTX 780 GC 967 MHz 1019 MHz 1502 MHz
Galaxy GTX 780 Hall of Fame 1006 MHz 1058 MHz 1502 MHz 290 mm/11.4 inches
GIGABYTE GTX 780 863 MHz 902 MHz 1502 MHz
GIGABYTE GTX 780 WindForce 3X 863 MHz 902 MHz 1502 MHz 292 mm/11.5 inches
GIGABYTE GTX 780 WindForce 3X OC 954 MHz 1006 MHz 1502 MHz 292 mm/11.5 inches
GIGABYTE GTX 780 WindForce 3X OC Rev. 2 954 MHz 1006 MHz 1502 MHz 292 mm/11.5 inches
GIGABYTE GTX 780 WindForce 3X Rev. 2 863 MHz 902 MHz 1502 MHz 292 mm/11.5 inches
Inno3D GTX 780 863 MHz 902 MHz 1502 MHz
Inno3D GTX 780 HerculeZ 2000 902 MHz 954 MHz 1502 MHz
Inno3D iChill GTX 780 Accelero Hybrid 1020 MHz 1061 MHz 1570 MHz
Inno3D iChill GTX 780 HerculeZ X3 Ultra 1006 MHz 1046 MHz 1553 MHz 288 mm/11.3 inches
KFA2 GTX 780 863 MHz 902 MHz 1502 MHz
KFA2 GTX 780 EX OC 967 MHz 1019 MHz 1502 MHz
KFA2 GTX 780 Hall of Fame 1006 MHz 1058 MHz 1502 MHz 290 mm/11.4 inches
Leadtek WinFast GTX 780 863 MHz 902 MHz 1502 MHz
Leadtek WinFast GTX 780 Hurricane III 876 MHz 928 MHz 1502 MHz 296 mm/11.7 inches
MSI GTX 780 863 MHz 902 MHz 1502 MHz
MSI GTX 780 Gaming 902 MHz 954 MHz 1502 MHz 266 mm/10.5 inches
MSI GTX 780 Gaming OC 954 MHz 1006 MHz 1502 MHz 266 mm/10.5 inches
MSI GTX 780 Lightning 980 MHz 1033 MHz 1502 MHz 295 mm/11.6 inches, Triple-slot
MSI GTX 780 Lightning LE 889 MHz 941 MHz 1502 MHz 295 mm/11.6 inches, Triple-slot
NVIDIA GeForce GTX 780 863 MHz 902 MHz 1502 MHz
Palit GTX 780 863 MHz 902 MHz 1502 MHz
Palit GTX 780 JetStream 902 MHz 954 MHz 1502 MHz
Palit GTX 780 Super JetStream 980 MHz 1032 MHz 1552 MHz
PNY XLR8 GTX 780 Enthusiast Edition 863 MHz 902 MHz 1502 MHz
PNY XLR8 GTX 780 OC 1006 MHz 1058 MHz 1553 MHz 296 mm/11.7 inches
Point of View GTX 780 863 MHz 902 MHz 1502 MHz
Point of View GTX 780 Trooper AMMO 902 MHz 941 MHz 1502 MHz
Point of View GTX 780 Trooper MAG 941 MHz 980 MHz 1525 MHz
XENON GTX 780 Super JetStream 980 MHz 1033 MHz 1550 MHz 280 mm/11 inches
ZOGIS GTX 780 Superclock 1006 MHz 1058 MHz 1553 MHz 296 mm/11.7 inches
ZOTAC GTX 780 863 MHz 902 MHz 1502 MHz
ZOTAC GTX 780 AMP! Edition 1006 MHz 1058 MHz 1552 MHz 292 mm/11.5 inches
