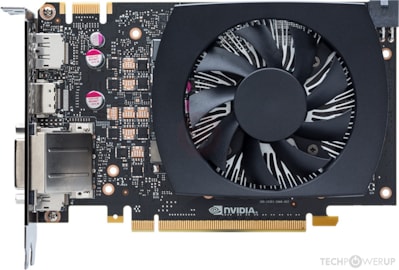

Report an Error NVIDIA GeForce GTX 950 Graphics Processor GM206 Cores 768 TMUs 48 ROPs 32 Memory Size 2 GB Memory Type GDDR5 Bus Width 128 bit Front GPU Chip GPU Chip GPU I/O I/O Top Top

Recommended Gaming Resolutions:

  • 1366x768
  • 1600x900
  • 1920x1080
The GeForce GTX 950 was a mid-range graphics card by NVIDIA, launched on August 20th, 2015. Built on the 28 nm process, and based on the GM206 graphics processor, in its GM206-250-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GTX 950. The GM206 graphics processor is an average sized chip with a die area of 228 mm² and 2,940 million transistors. Unlike the fully unlocked GeForce GTX 960, which uses the same GPU but has all 1024 shaders enabled, NVIDIA has disabled some shading units on the GeForce GTX 950 to reach the product's target shader count. It features 768 shading units, 48 texture mapping units, and 32 ROPs. NVIDIA has paired 2,048 MB GDDR5 memory with the GeForce GTX 950, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 1024 MHz, which can be boosted up to 1188 MHz, memory is running at 1653 MHz (6.6 Gbps effective). Being a dual-slot card, the NVIDIA GeForce GTX 950 draws power from 1x 6-pin power connector, with power draw rated at 90 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0, 3x DisplayPort 1.2. GeForce GTX 950 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 202 mm in length, and features a dual-slot cooling solution. Its price at launch was 159 US Dollars.

Graphics Processor

GPU Name GM206 GPU Variant GM206-250-A1 Architecture Maxwell 2.0 Foundry TSMC Process Size 28 nm Transistors 2,940 million Density 12.9M / mm² Die Size 228 mm² Chip Package BGA-1428

Graphics Card

Release Date Aug 20th, 2015 Generation GeForce 900 Predecessor GeForce 700 Successor GeForce 10 Production End-of-life Driver Support Active Launch Price 159 USD Bus Interface PCIe 3.0 x16 Reviews 76 in our database

Relative Performance

GeForce RTX 5090 1969% GeForce RTX 4090 1502% GeForce RTX 5080 1298% GeForce RTX 4080 SUPER 1159% GeForce RTX 4080 1149% Radeon RX 7900 XTX 1148% GeForce RTX 5070 Ti 1131% Radeon RX 9070 XT 1081% Radeon RX 7900 XT 989% GeForce RTX 3090 Ti 970% GeForce RTX 4070 Ti SUPER 970% Radeon RX 9070 969% GeForce RTX 4070 Ti 887% GeForce RTX 5070 879% GeForce RTX 3090 866% GeForce RTX 3080 Ti 854% GeForce RTX 4070 SUPER 827% Radeon RX 7900 GRE 814% Radeon RX 6950 XT 801% GeForce RTX 4070 790% Radeon RX 6900 XT 782% GeForce RTX 3080 769% Radeon RX 7800 XT 767% Radeon RX 6800 XT 740% GeForce RTX 5060 Ti 16 GB 687% GeForce RTX 5060 Ti 8 GB 683% Radeon RX 7700 XT 673% Radeon RX 9060 XT 16 GB 652% GeForce RTX 3070 Ti 651% Radeon RX 6800 629% Radeon RX 9060 XT 8 GB 616% GeForce RTX 3070 609% GeForce RTX 2080 Ti 604% GeForce RTX 4060 Ti 8 GB 601% GeForce RTX 5060 592% Radeon RX 6750 XT 577% GeForce RTX 3060 Ti 533% Radeon RX 6700 XT 524% GeForce RTX 2080 SUPER 487% Radeon RX 7600 XT 482% GeForce RTX 4060 481% Arc B580 480% GeForce RTX 5050 468% GeForce RTX 2080 464% Radeon RX 6650 XT 454% Radeon RX 7600 453% GeForce RTX 2070 SUPER 431% GeForce GTX 1080 Ti 427% Arc A770 426% GeForce RTX 3060 12 GB 411% Radeon RX 6600 XT 405% Radeon VII 404% Arc A750 396% Radeon RX 5700 XT 387% GeForce RTX 2070 381% Radeon RX 6600 364% Arc A580 354% GeForce RTX 2060 SUPER 353% Radeon RX Vega 64 338% GeForce RTX 2060 327% Radeon RX 5700 326% GeForce GTX 1080 320% GeForce GTX 1070 Ti 314% Radeon RX 5600 XT 311% Radeon RX Vega 56 295% GeForce GTX 1070 285% GeForce GTX 1660 SUPER 269% GeForce GTX 1660 Ti 269% GeForce GTX 980 Ti 255% GeForce RTX 3050 8 GB 254% Radeon R9 FURY X 251% GeForce GTX 1660 248% Radeon RX 590 234% Radeon R9 FURY 228% GeForce GTX 980 225% GeForce GTX 1650 SUPER 223% Radeon RX 6500 XT 220% Radeon RX 5500 XT 218% Radeon RX 580 217% GeForce GTX 1060 6 GB 211% Radeon R9 390X 208% GeForce GTX 690 206% Radeon RX 480 204% Radeon HD 7990 203% GeForce GTX 780 Ti 199% GeForce GTX 970 194% Radeon R9 290X 194% Radeon R9 390 190% Radeon RX 570 188% Radeon R9 290 179% Radeon RX 470 176% GeForce GTX 1650 166% Radeon RX 6400 162% Arc A380 160% GeForce GTX 780 160% Radeon HD 7970 GHz Edition 144% GeForce GTX 590 144% Radeon R9 280X 142% Radeon HD 6990 139% GeForce GTX 1050 Ti 132% GeForce GTX 680 129% Radeon R9 380 128% Radeon HD 7970 128% GeForce GTX 770 128% Radeon R9 285 127% GeForce GTX 960 123% GeForce GTX 670 120% Radeon HD 5970 108% GeForce GTX 1630 108% Radeon HD 7950 106% GeForce GTX 1050 106% GeForce GTX 760 105% GeForce GTX 580 105% GeForce GTX 660 Ti 105% Radeon R9 270X 103% Radeon HD 7870 GHz Edition 101% GeForce GTX 950 100% Radeon RX 560 94% GeForce GTX 570 93% GeForce GTX 660 92% Radeon RX 460 92% Radeon R7 370 92% Radeon HD 6970 89% GeForce GTX 480 85% Radeon HD 7850 83% GeForce GTX 295 82% Radeon HD 6950 79% GeForce GTX 750 Ti 79% Radeon HD 4870 X2 77% GeForce GTX 560 Ti 77% Radeon HD 5870 75% Radeon HD 6870 70% GeForce GTX 470 67% GeForce GTX 650 Ti 65% Radeon HD 5850 63% GeForce GTX 285 59% Radeon HD 6850 58% GeForce GTX 280 54% Radeon HD 7770 GHz Edition 54% GeForce GTX 275 54% GeForce GT 1030 54% GeForce GTX 460 53% Radeon HD 4890 51% Radeon HD 6790 50% Radeon HD 5830 47% GeForce GTX 650 45% GeForce GTX 550 Ti 44% Radeon HD 4870 44% GeForce GTX 260 43% Radeon HD 5770 43% Radeon HD 7750 42% Radeon HD 5750 37% GeForce GTS 450 36% GeForce GTS 250 35% Radeon HD 4850 34% Radeon HD 4770 32% Radeon HD 4830 30% Radeon HD 6670 29% GeForce 9800 GT 28% GeForce GT 640 27% Radeon HD 5670 25% GeForce 9600 GT 24% GeForce GT 240 21% GeForce GT 440 20% Radeon HD 4670 19% Radeon HD 5570 18% GeForce GT 430 18% GeForce GT 220 13% GeForce GT 520 11% Radeon HD 6450 10% Radeon HD 5450 9% Radeon HD 4550 7% GeForce 9400 GT 6% GeForce 210 4% Based on TPU review data: "Performance Summary" at 1920x1080, 4K for RTX 3080 and faster.

Clock Speeds

Base Clock 1024 MHz Boost Clock 1188 MHz Memory Clock 1653 MHz 6.6 Gbps effective

Memory

Memory Size 2 GB Memory Type GDDR5 Memory Bus 128 bit Bandwidth 105.8 GB/s

Render Config

Shading Units 768 TMUs 48 ROPs 32 SMM Count 6 L1 Cache 48 KB (per SMM) L2 Cache 1024 KB

Theoretical Performance

Pixel Rate 38.02 GPixel/s Texture Rate 57.02 GTexel/s FP32 (float) 1.825 TFLOPS FP64 (double) 57.02 GFLOPS (1:32)

Board Design

Slot Width Dual-slot Length 202 mm 8 inches TDP 90 W Suggested PSU 250 W Outputs 1x DVI1x HDMI 2.03x DisplayPort 1.2 Power Connectors 1x 6-pin

Graphics Features

DirectX 12 (12_1) OpenGL 4.6 OpenCL 3.0 Vulkan 1.4 CUDA 5.2 Shader Model 6.8

GM206 GPU Notes

NVENC: 5th Gen NVDEC: 2nd Gen PureVideo HD: VP7 VDPAU: Feature Set F Latest Drivers: Windows Vista: GeForce Release 365.19 Quadro Release R346 U7 (348.40) / R352 BETA (352.86) Windows 7 / 8 / 8.1 (x32 / x64): GeForce Release 391.35 / 474.89 Quadro Release R390 U9 (392.37) / R440 U4 (441.66) Data Center Release 427.11 Windows 10 / 11 (x32 / x64): GeForce Release 391.35 / Latest Quadro Release R390 U9 (392.37) / Latest Data Center Release: Latest

Retail boards based on this design (50)

Name GPU Clock Boost Clock Memory Clock Other Changes
ASUS ECHELON GTX 950 OC 1140 MHz 1329 MHz 1653 MHz 221 mm/8.7 inches, 2x DVI 1x HDMI 1x DisplayPort
ASUS GTX 950 1026 MHz 1190 MHz 1653 MHz 211 mm/8.3 inches, 1x DVI 1x HDMI 1x DisplayPort
ASUS GTX 950 1026 MHz 1190 MHz 1653 MHz 211 mm/8.3 inches, 1x DVI 1x HDMI 1x DisplayPort
ASUS GTX 950 Mini 1026 MHz 1190 MHz 1653 MHz 173 mm/6.8 inches, 1x DVI 1x HDMI 1x DisplayPort
ASUS GTX 950 OC 1076 MHz 1253 MHz 1653 MHz 211 mm/8.3 inches, 1x DVI 1x HDMI 1x DisplayPort
ASUS STRIX GTX 950 DirectCU II 1026 MHz 1190 MHz 1653 MHz 221 mm/8.7 inches, 2x DVI 1x HDMI 1x DisplayPort
ASUS STRIX GTX 950 DirectCU II OC 1140 MHz 1329 MHz 1653 MHz 221 mm/8.7 inches, 2x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 950 Flame Ares U 1140 MHz 1329 MHz 1653 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 950 Flame Ares U V2 1140 MHz 1329 MHz 1653 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 950 Flame Ares U V3 1140 MHz 1329 MHz 1653 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 950 Flame Ares U V5 1216 MHz 1418 MHz 1653 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful IGame GTX 950 Flame Warrior X 1178 MHz 1367 MHz 1750 MHz 2x DVI 1x HDMI 1x DisplayPort
Colorful iGame GTX 950 Ice Knight Mini 1102 MHz 1279 MHz 1653 MHz
EVGA GTX 950 ACX 2.0 1026 MHz 1190 MHz 1653 MHz 173 mm/6.8 inches, 2x DVI 1x HDMI 1x DisplayPort
EVGA GTX 950 ACX 2.0 1026 MHz 1190 MHz 1653 MHz 173 mm/6.8 inches, 1x DVI 1x HDMI 1x DisplayPort
EVGA GTX 950 FTW ACX 2.0 1203 MHz 1405 MHz 1653 MHz 257 mm/10.1 inches
EVGA GTX 950 SC ACX 2.0 1076 MHz 1253 MHz 1653 MHz 173 mm/6.8 inches, 2x DVI 1x HDMI 1x DisplayPort
EVGA GTX 950 SC ACX 2.0 1076 MHz 1253 MHz 1653 MHz 173 mm/6.8 inches, 1x DVI 1x HDMI 1x DisplayPort
EVGA GTX 950 SSC ACX 2.0 1190 MHz 1393 MHz 1653 MHz 257 mm/10.1 inches
EVGA GTX 950 SSC ACX 2.0 Best Buy Exclusive 1190 MHz 1393 MHz 1653 MHz 257 mm/10.1 inches
EVGA GTX 950 Superclocked ACX 2.0 1152 MHz 1342 MHz 1653 MHz 173 mm/6.8 inches
EVGA GTX 950 Superclocked+ ACX 2.0 1165 MHz 1355 MHz 1653 MHz 257 mm/10.1 inches
FORSA GTX 950 1024 MHz 1188 MHz 1653 MHz
Gainward GTX 950 1024 MHz 1188 MHz 1653 MHz 222 mm/8.7 inches, 2x DVI 1x HDMI 1x DisplayPort
Gainward GTX 950 Guan Yu 1165 MHz 1355 MHz 1674 MHz 2x DVI 1x HDMI 1x DisplayPort
GALAX GTX 950 Black Sniper OC 1140 MHz 1329 MHz 1653 MHz 244 mm/9.6 inches, 1x DVI 1x HDMI 1x DisplayPort
GALAX GTX 950 EX OC White 1203 MHz 1405 MHz 1683 MHz 254 mm/10 inches
GALAX GTX 950 OC 1114 MHz 1304 MHz 1653 MHz 194 mm/7.6 inches, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 950 1051 MHz 1228 MHz 1653 MHz 210 mm/8.3 inches, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 950 OC 1064 MHz 1241 MHz 1653 MHz 186 mm/7.3 inches, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 950 WindForce 2X 1051 MHz 1228 MHz 1653 MHz 208 mm/8.2 inches, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 950 WindForce 2X OC 1102 MHz 1279 MHz 1653 MHz 208 mm/8.2 inches, 2x DVI 1x HDMI 1x DisplayPort
GIGABYTE GTX 950 XTREME Gaming 1024 MHz 1188 MHz 1750 MHz 240 mm/9.4 inches
GIGABYTE GTX 950 XTREME Gaming 1203 MHz 1405 MHz 1750 MHz 240 mm/9.4 inches
Inno3D GTX 950 OC 1051 MHz 1228 MHz 1653 MHz 205 mm/8.1 inches, 1x DVI 1x HDMI 1x DisplayPort
Inno3D iChill GTX 950 1140 MHz 1329 MHz 1700 MHz 205 mm/8.1 inches, 1x DVI 1x HDMI 1x DisplayPort
Inno3D iChill GTX 950 Ultra 1178 MHz 1367 MHz 1700 MHz 205 mm/8.1 inches, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 950 Gaming 1102 MHz 1279 MHz 1653 MHz 270 mm/10.6 inches
MSI GTX 950 OC 1076 MHz 1253 MHz 1653 MHz 170 mm/6.7 inches, 2x DVI 1x HDMI 1x DisplayPort
MSI GTX 950 OC 1076 MHz 1253 MHz 1653 MHz 254 mm/10 inches
MSI GTX 950 OCV1 1076 MHz 1253 MHz 1653 MHz 170 mm/6.7 inches, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 950 OCV2 1076 MHz 1253 MHz 1653 MHz 170 mm/6.7 inches, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 950 OCV2 1076 MHz 1253 MHz 1653 MHz 220 mm/8.7 inches, 1x DVI 1x HDMI 1x DisplayPort
MSI GTX 950 OCV3 1076 MHz 1253 MHz 1653 MHz 220 mm/8.7 inches, 1x DVI 1x HDMI 1x DisplayPort
Palit GTX 950 StormX 1024 MHz 1188 MHz 1653 MHz 215 mm/8.5 inches, 2x DVI 1x HDMI 1x DisplayPort
Palit GTX 950 StormX Dual 1064 MHz 1241 MHz 1653 MHz 215 mm/8.5 inches, 2x DVI 1x HDMI 1x DisplayPort
PNY XLR8 GTX 950 OC Gaming 1152 MHz 1342 MHz 1800 MHz 212 mm/8.3 inches, 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 950 1089 MHz 1266 MHz 1653 MHz 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 950 AMP! Edition 1203 MHz 1405 MHz 1755 MHz 2x DVI 1x HDMI 1x DisplayPort
ZOTAC GTX 950 OC 1102 MHz 1279 MHz 1704 MHz 2x DVI 1x HDMI 1x DisplayPort
