5. Plastic tray for circular shallow floor box in concrete floor for 6 elements Simon 500 Cima

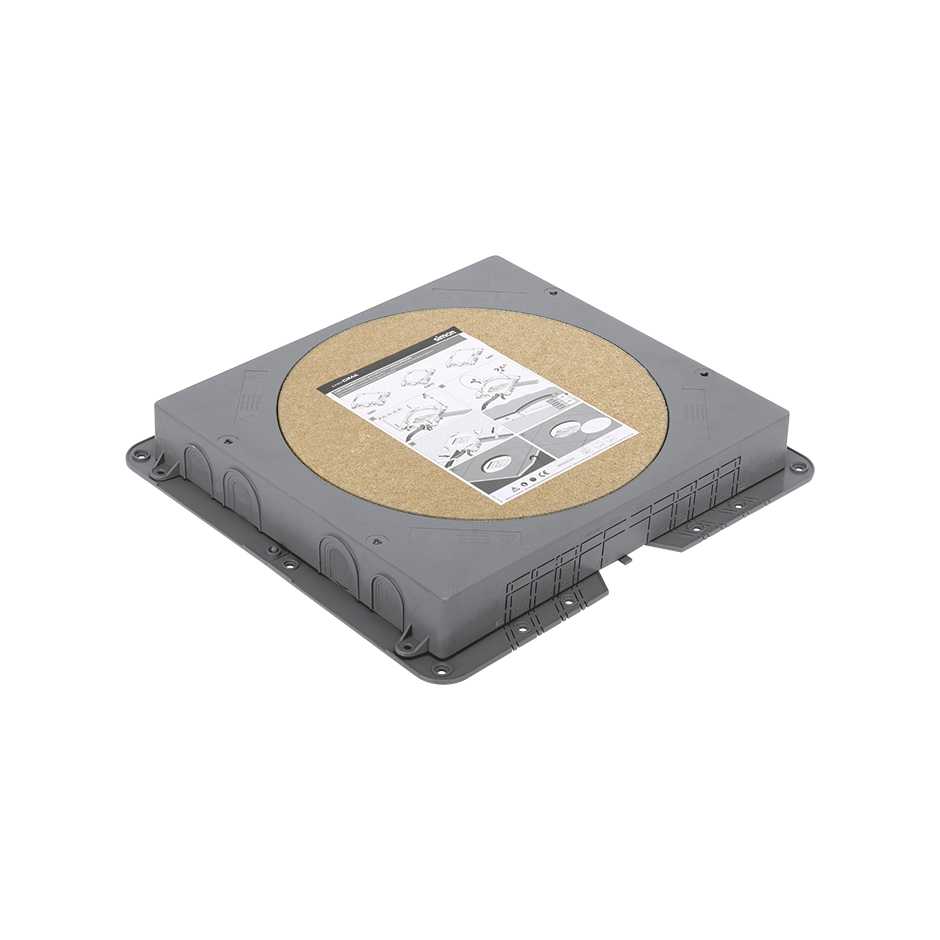

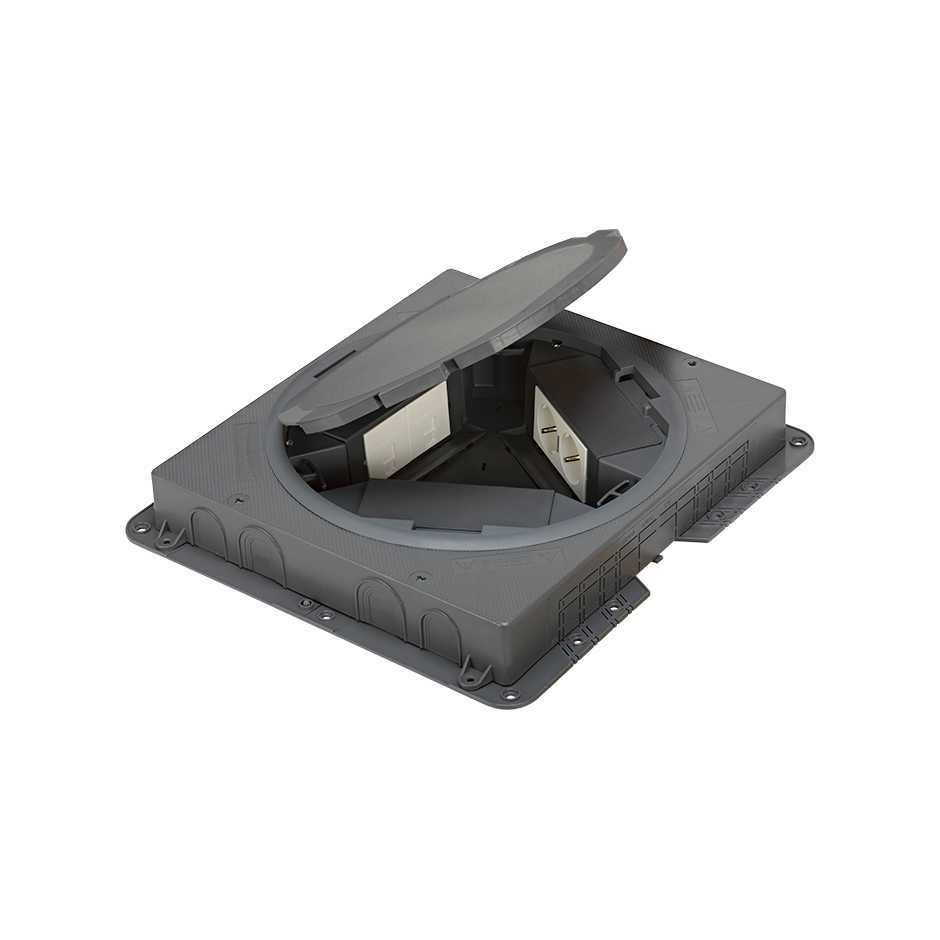

Plastic tray for circular shallow floor box for 6 elements Simon 500 Cima front view

This image represents the combined solution of different references

Plastic tray for circular shallow floor box 6 elements Simon 500 Cima packaging

2/2

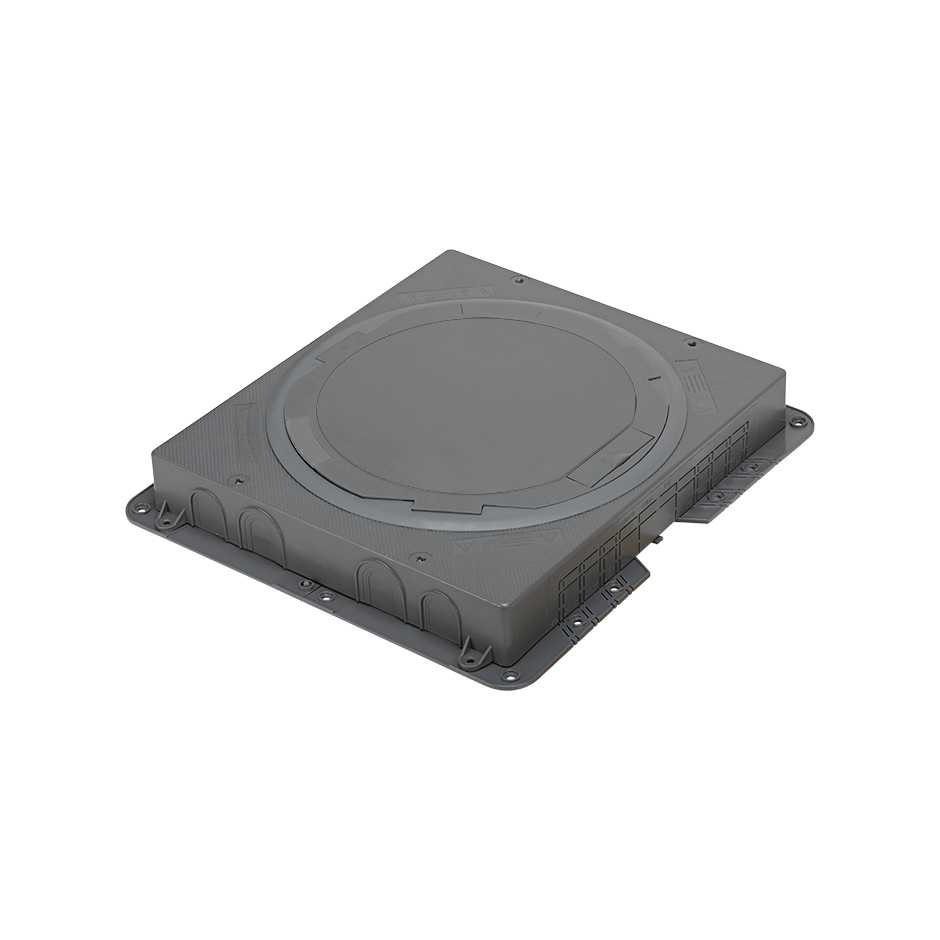

Plastic tray for circular shallow floor box for 6 elements Simon 500 Cima front view

This image represents the combined solution of different references

Plastic tray for circular shallow floor box 6 elements Simon 500 Cima packaging

Ref G301C Plastic tray for circular shallow floor box in concrete floor for 6 elements Simon 500 Cima Price/Unit Price on request Packaging quantity 1 Unit Technical specificationsG301C-en-datasheet.pdfInstallation manual

1. 990154.pdf [4MB]

Product declaration

1. UES0050.pdf [690KB]

Do you need advice? Outstanding Features SeriesSimon 500 Cima Series Compatibility

Simon 500 Cima

Ref SF300C/1 Reduced depth floor box with 3 double elements for installation in technical or pavement floor gray Simon Cima Ref KF300C/1 Shallow round floor box for 6 elements and 3 half elements in concrete or raised floor grey Simon K45 Product Information Downloads Support

Este producto de la gama Simon 500 Cima es la cubeta ideal para cajas de suelo circular de escasa profundidad, sobre todo si se instalan directamente en el pavimento.

La caja de suelo a la que complementa debe proporcionar energía eléctrica a un total de 6 elementos. Debido a su bonito y original color verde se aconseja instalar esta cubeta en suelos circulares de tonalidad similar o combinable.

Su instalación es muy sencilla y se aconseja que el revestimiento del suelo se coloque hasta la entrada de la tapa protectora para una perfecta integración en el ambiente de la estancia. La cubeta para suelos circulares de poca profundidad tiene unas medidas de 419 x 384 x 54 milímetros de profundidad, y está diseñada con materiales termoplásticos de alta calidad. Este tipo de material incrementa la seguridad del producto y es sin duda un valor añadido, ya que ayudan a la no propagación de las llamas si hubiera un incendio y a una reducción de la toxicidad del humo provocado por este.

Basic information

• Compatibility

  With Simon Series S mechanisms and Simon 25 / Simon K45 (via adapter)

• Remarks

  The floor lining must be installed up to the protective cover inlet

• Finish

  Grey

• Material

  Plastic

• Packaging contents

  Tray and protective cover with installation manual

Technical information

• Market available

  CE

• IK Classification

  8

• Available in

  4, 6 and 8 elements

• Dielectric strength

  No holes or contours, with 2000V at 50 Hz for 1 minute

• Heat resistance (ºC)

  +125ºC (according rule IEC 60695-10-2)

• Insulation resistance (V-MΩ)

  >5 MOhms at 500V

• IP Rating

  IP4X

• Max temp during construction work (ºC)

  +90 ºC

• Number of side entrances

  8

• Recess dimension (mm)

  419 x 384 mm

• Temperature range during installation (ºC)

  -5 to 60 ºC

• Version

  6 elements

• Channel entry dimensions (mm)

  50 x 28mm - 250 x 38 mm

• Depth of adjustment range (mm)

  55 mm - 90 mm

Installation and maintenance

• Installation direction

  Circular

• Installation type

  Specially designed for installation in concrete floors

• Number of channel entries

  2

• Screws required for fixing to the slab

  Minimum 2 (1 per side, diagonally). It is recommended to fix the bowl with 6 screws for complete fixation.

• Type of fastening

  Using screws

• Maintenance

  Clean with a soft, dry cloth. Do not use abrasive cloths or cleaning products that contain chlorine.

Regulation

• Regulations

  Directive 2014/35/UE LVD + EN 60670-23:2008

Logistics Information

• Product net weight

  1.65KGM

• Product gross weight

  1.65KGM

• Product EAN

  8426436050969

• Packaging quantity

  1

• Packaging height

  55MMT

• Packaging width

  385MMT

• Packaging length

  420MMT

• Packaging volume

  0.089HLT

• Packaging net weight

  1.65KGM

• Packaging gross weight

  0KGM

• Packaging EAN

  8426436050969

Installation manual 990154.pdf [4MB]https://cdn.pimber.ly/public/asset/raw/61e53326b02781001c06e002/1cede674/665851… Product declaration UES0050.pdf [690KB]https://cdn.pimber.ly/public/asset/raw/61e53326b02781001c06e002/4d5fd9f7/645214…
