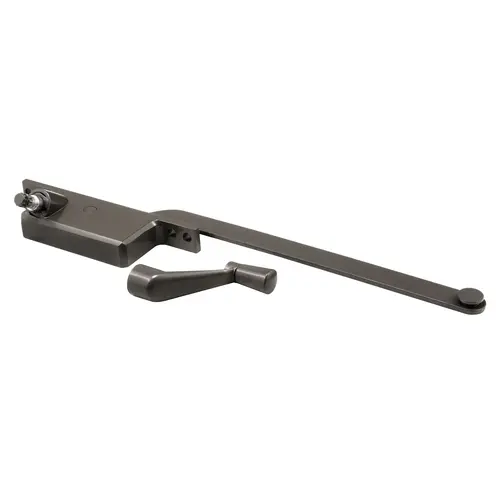

Prime-Line H 3517Click To Copy 9 in. Diecast Construction Bronze Painted Finish Left Hand Casement Operator with Square Body (Single Pack)

Item #: H 3517 by Prime-Line Products

UPC #: 049793035172

See reviewsSee reviewsSee reviews summaryIn Stock

$23.36

/eachSAVE UP TO 2.34 Buying in bulk QUICK SHIPPING*Usually ships in 1 business dayIn stock: 767 units availableQTY– + ADD TO CART+ Add to WishlistBuy in Bulk & Save - See HowWatch Now Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

B2B Net Terms Safe Payment Ask Question Features

• 3-7/8 in and 4-3/4 in mounting holes
• Casement track may also need to be replaced

Returnable

Yes

Defective Code

A

Color

Bronze

Number in Package

1 pk

Handle Type

Crank

Packaging Type

Carded

Length

9"

Orientation

Left

Diameter

3/8"

Product Type

Window Operator

Material

Steel

Each Weight

0.900 LB

Brand Compatibility

Steel Framed Windows

Velocity

X

Hazardous Material

No

Alternative UPC

078874173922

Height

13.15

ECCN

EAR99

Width

3.80

Country Origin Code

TW

Finish

Bronze

Nomenclature

H3517 SQ LH CASEMENT CRANK 9IN

Right Hand/Left Hand

Left

Handing

Left

Arm Length

9 In.

"W" Overall Width

3.8

"D" Overall Depth

1.4

"H" Overall Height

13.15

Shipping Weight

0.91

Product Overview CASEMENT CRANK SQ LH 9IN BRNZSpecifications:

Includes: Matching Crank Handle Mounting Screw

Suitable for: Older Steel Framed Windows

The H 3517 casement window operator is a bronze square body type. It has a 7 in steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 in crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in apart.
