RATCHET HINGE WITH FRICTIONHG-RCT12-C

1 / 1total results

• Catalogue
• CAD
• Features
• Spec Table
• Enquiries

Filter items 3D View

•
• RATCHET HINGE WITH FRICTION
• HG-RCT12-C

Ratchet mechanism holds at angles in 5 degree increments from closed to opened position.Lift up to the fully open position to release the ratchet mechanism.The friction (resistance) function works even when released for safe operation. Application —For angle adjustment of folding table, touch panel, keyboard, etc. Read more

Videos

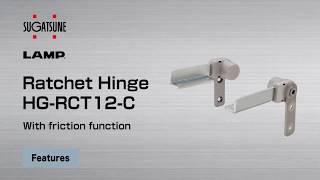

• HG-RCT12-C Ratchet Hinge With friction function Feature

Spec Table

Body

1 of 1 items

Show All

Image	Item Name	Item Code	Quotation
	HG-RCT12-C	170-036-333

Image	Item Name	Item Code	Quotation	RoHS	Allowable Moment N.m/1 Set	Holding Angles	Allowable Moment kgf.cm/1 Set	EAN	Weight (g)
	HG-RCT12-C	170-036-333			40	5° increments/18 locations/90°	408	4510932174039	350

Slide to See More

Sold as a set of 2 pcs (L/R).

CAD download

Body

1 of 1 items

Show All

Item Name
HG-RCT12-C

Item Name	2D		3D				PDF	RoHS	Item Code
HG-RCT12-C	DXF	DWG	STEP	X_T	IGES	SAT	3D PDF		170-036-333

Slide to See More

Catalogue

Online Catalogue

Note

— Use in pairs.— Ensure the cabinet has enough rigidity. Otherwise, the ratchet mechanism may not function.— When the mounting width of hinge is more than 400mm, the ratchet mechanisms may not work simultaneously on the left and right.

Category

• Industrial Component Hardware
• HINGES
• DETENT HINGES
• HG-RCT12-C

Your Recently Viewed Items

You have no recently viewed products.

No History

If you would like to keep track of items viewed, click on the "Keep History" button below.

Keep History

You have no recently viewed products.

No History

-All items, unless specified, are made to exact metric dimensions.

-Changes in dimensions, finishes, and packing etc. or suspension of production may occur without notice.

-Our liability is limited to the replacement of the merchandise.

×
