SKF - Free CAD Models - Adapter Sleeves For Metric Shafts

TraceParts Classification › Mechanical components › Bearings › Bearings (ball, roller, needle, etc.) › Bearings accessories › Bearings accessories, sleeves Dimensions : sleeve type H 1/5 Dimensions : sleeve type H...E 2/5 Dimensions : sleeve type OH...H (1) 3/5 Dimensions : sleeve type OH...H (2) 4/5 Dimensions : sleeve type OH...HE 5/5 5 By SKF Adapter sleeves for metric shafts

Manufacturer	SKF

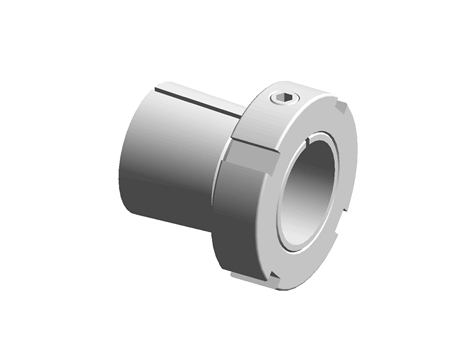

Description	Adapter sleeve for metric shafts, Bore Ø 100 mm, Width 105 mm
Part number	H 2322 E
Mass	2.75

CAD models Request for quotation Please select 3D XML 3MF Acis 6.3 Alibre Design AMF Animated GIF AutoCAD (DWG) - 2D AutoCAD (DWG) - 3D AutoCAD MEP BMP BricsCAD (DWG) - 2D BricsCAD (DWG) - 3D CATIA V4 CATIA V5 COLLADA Creo DesignSpark Mechanical DraftSight DXF - 2D DXF - 3D EMF FUSION 360 GIF GstarCAD HiCAD (>=2011) HOOPS IGES Inventor Inventor LT IRONCAD JPG JT KeyCreator KOMPAS-3D (>=V15) Mechanical Desktop NX (*.x_t) OBJ OFF Panda3D Parasolid 11.1 PDF PDF 3D PLY PNG PRC Pro/Engineer Neutral Revit Family File (RFA) SketchUp Solid Edge SOLIDWORKS SpaceClaim STEP AP203 STEP AP214 STEP AP242 STL T-FLEX TENADO CAD 3D Three.js TIF TopSolid (< v 7.0) TopSolid (v 7.8) TurboCAD Universal 3D VDA-FS VRML VTK VX CAD/CAM WMF ZW3D Please make sure this software has been installed. This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply. The link to this page has been copied in your clipboard.

Product selection

Index	Selector	Adapter sleeve part number<br /> (assemblage)	Bore Ø :<br />d1 (mm)	Outside Ø (small taper) :<br />d (mm)	Outside Ø (lock nut) :<br />d3 (mm)	Width :<br />B1 (mm)	Width lock nut :<br />B (mm)	Width lock nut including lock washer :<br />B4 (mm)	Width lock nut including locking clip :<br />B5	Thread :<br />G	Thread oil supply duct :<br />G2	Length thread for oil supply duct :<br />G3	Distance bore - oil supply duct :<br />A	Lock nut<br /> (appertaining)	Locking device<br /> (appertaining)	Hydraulic nut	Popular item
1	1	H 204	17	20	32	24	6	7	0	M 20x1	0	0	0	KM 4	MB 4	0	Yes
2	72	H 304	17	20	32	28	6	7	0	M 20x1	0	0	0	KM 4	MB 4	0
3	2	H 205	20	25	38	26	7	8	0	M 25x1.5	0	0	0	KM 5	MB 5	0	Yes
4	75	H 305	20	25	38	29	7	8	0	M 25x1.5	0	0	0	KM 5	MB 5	0	Yes
5	18	H 2305	20	25	38	35	7	8	0	M 25x1.5	0	0	0	KM 5	MB 5	0	Yes
6	76	H 305 E	20	25	38	29	10.5	0	0	M 25x1.5	0	0	0	KMFE 5	0	0
7	19	H 2306	25	30	45	38	7	8	0	M 30x1.5	0	0	0	KM 6	MB 6	0	Yes
8	3	H 206	25	30	45	27	7	8	0	M 30x1.5	0	0	0	KM 6	MB 6	0	Yes
9	77	H 306	25	30	45	31	7	8	0	M 30x1.5	0	0	0	KM 6	MB 6	0	Yes
10	78	H 306 E	25	30	45	31	10.5	0	0	M 30x1.5	0	0	0	KMFE 6	0	0
11	4	H 207	30	35	52	29	8	9	0	M 35x1.5	0	0	0	KM 7	MB 7	0	Yes
12	79	H 307	30	35	52	35	8	9	0	M 35x1.5	0	0	0	KM 7	MB 7	0	Yes
13	80	H 307 E	30	35	52	35	11.5	0	0	M 35x1.5	0	0	0	KMFE 7	0	0
14	20	H 2307	30	35	52	43	8	9	0	M 35x1.5	0	0	0	KM 7	MB 7	0	Yes
15	21	H 2308	35	40	58	46	9	10	0	M 40x1.5	0	0	0	KM 8	MB 8	0	Yes
16	5	H 208	35	40	58	31	9	10	0	M 40x1.5	0	0	0	KM 8	MB 8	0	Yes
17	82	H 308	35	40	58	36	9	10	0	M 40x1.5	0	0	0	KM 8	MB 8	0	Yes
18	83	H 308 E	35	40	58	36	13	0	0	M 40x1.5	0	0	0	KMFE 8	0	0	Yes
19	22	H 2308 E	35	40	58	46	13	0	0	M 40x1.5	0	0	0	KMFE 8	0	0
20	6	H 209	40	45	65	33	10	11	0	M 45x1.5	0	0	0	KM 9	MB 9	0	Yes
21	23	H 2309	40	45	65	50	10	11	0	M 45x1.5	0	0	0	KM 9	MB 9	0	Yes
22	85	H 309 E	40	45	65	39	13	0	0	M 45x1.5	0	0	0	KMFE 9	0	0	Yes
23	84	H 309	40	45	65	39	10	11	0	M 45x1.5	0	0	0	KM 9	MB 9	0	Yes
24	86	H 310	45	50	70	42	11	12	0	M 50x1.5	0	0	0	KM 10	MB 10	Yes
25	24	H 2310	45	50	70	55	11	12	0	M 50x1.5	0	0	0	KM 10	MB 10	Yes
26	7	H 210	45	50	70	35	11	12	0	M 50x1.5	0	0	0	KM 10	MB 10	Yes
27	87	H 310 E	45	50	70	42	14	0	0	M 50x1.5	0	0	0	KMFE 10	0	Yes
28	88	H 311	50	55	75	45	11	12.5	0	M 55x2	0	0	0	KM 11	MB 11	Yes
29	8	H 211	50	55	75	37	11	12.5	0	M 55x2	0	0	0	KM 11	MB 11	Yes
30	25	H 2311	50	55	75	59	11	12.5	0	M 55x2	0	0	0	KM 11	MB 11	Yes
31	89	H 311 E	50	55	75	45	14	0	0	M 55x2	0	0	0	KMFE 11	0	Yes
32	9	H 212	55	60	80	38	11	13	0	M 60x2	0	0	0	KM 12	MB 12	Yes
33	90	H 312	55	60	80	47	11	13	0	M 60x2	0	0	0	KM 12	MB 12	Yes
34	91	H 312 E	55	60	80	47	14	0	0	M 60x2	0	0	0	KMFE 12	0	Yes
35	26	H 2312	55	60	80	62	11	13	0	M 60x2	0	0	0	KM 12	MB 12	Yes
36	28	H 2313 E	60	65	85	65	15	0	0	M 65x2	0	0	0	KMFE 13	0
37	10	H 213	60	65	85	40	12	13.5	0	M 65x2	0	0	0	KM 13	MB 13	Yes
38	102	H 313	60	65	85	50	12	13.5	0	M 65x2	0	0	0	KM 13	MB 13	Yes
39	103	H 313 E	60	65	85	50	15	0	0	M 65x2	0	0	0	KMFE 13	0	Yes
40	27	H 2313	60	65	85	65	12	13.5	0	M 65x2	0	0	0	KM 13	MB 13	Yes
41	116	H 314	60	70	92	52	12	13.5	0	M 70x2	0	0	0	KM 14	MB 14	Yes
42	117	H 314 E	60	70	92	52	15	0	0	M 70x2	0	0	0	KMFE 14	0
43	29	H 2314	60	70	92	68	12	13.5	0	M 70x2	0	0	0	KM 14	MB 14	Yes
44	120	H 315 E	65	75	98	55	16	0	0	M 75x2	0	0	0	KMFE 15	0	Yes
45	30	H 2315	65	75	98	73	13	14.5	0	M 75x2	0	0	0	KM 15	MB 15	Yes
46	11	H 215	65	75	98	43	13	14.5	0	M 75x2	0	0	0	KM 15	MB 15	Yes
47	119	H 315	65	75	98	55	13	14.5	0	M 75x2	0	0	0	KM 15	MB 15	Yes
48	31	H 2316	70	80	105	78	15	17	0	M 80x2	0	0	0	KM 16	MB 16	Yes
49	121	H 316	70	80	105	59	15	17	0	M 80x2	0	0	0	KM 16	MB 16	Yes
50	12	H 216	70	80	105	46	15	17	0	M 80x2	0	0	0	KM 16	MB 16	Yes
51	122	H 316 E	70	80	105	59	18	0	0	M 80x2	0	0	0	KMFE 16	0	Yes
52	32	H 2317	75	85	110	82	16	18	0	M 85x2	0	0	0	KM 17	MB 17	Yes
53	124	H 317 E	75	85	110	63	19	0	0	M 85x2	0	0	0	KMFE 17	0	Yes
54	13	H 217	75	85	110	50	16	18	0	M 85x2	0	0	0	KM 17	MB 17	Yes
55	123	H 317	75	85	110	63	16	18	0	M 85x2	0	0	0	KM 17	MB 17	Yes
56	126	H 318 E	80	90	120	65	19	0	0	M 90x2	0	0	0	KMFE 18	0	Yes
57	34	H 2318 E/L73	80	90	120	73	19	0	0	M 90x2	0	0	0	KMFE 18	0	Yes
58	14	H 218	80	90	120	52	16	18	0	M 90x2	0	0	0	KM 18	MB 18	Yes
59	33	H 2318	80	90	120	86	16	18	0	M 90x2	0	0	0	KM 18	MB 18	Yes
60	125	H 318	80	90	120	65	16	18	0	M 90x2	0	0	0	KM 18	MB 18	Yes
61	127	H 319	85	95	125	68	17	19	0	M 95x2	0	0	0	KM 19	MB 19	Yes
62	35	H 2319	85	95	125	90	17	19	0	M 95x2	0	0	0	KM 19	MB 19	Yes
63	15	H 219	85	95	125	55	17	19	0	M 95x2	0	0	0	KM 19	MB 19	Yes
64	93	H 3120 E	90	100	130	76	21	0	0	M 100x2	0	0	0	KMFE 20	0
65	129	H 320	90	100	130	71	18	20	0	M 100x2	0	0	0	KM 20	MB 20	Yes
66	16	H 220	90	100	130	58	18	20	0	M 100x2	0	0	0	KM 20	MB 20	Yes
67	38	H 2320 E	90	100	130	97	21	0	0	M 100x2	0	0	0	KMFE 20	0
68	37	H 2320	90	100	130	97	18	20	0	M 100x2	0	0	0	KM 20	MB 20	Yes
69	92	H 3120	90	100	130	76	18	20	0	M 100x2	0	0	0	KM 20	MB 20	Yes
70	130	H 320 E	90	100	130	71	21	0	0	M 100x2	0	0	0	KMFE 20	0	Yes
71	131	H 322	100	110	145	77	19	21	0	M 110x2	0	0	0	KM 22	MB 22	Yes
72	94	H 3122	100	110	145	81	19	21	0	M 110x2	0	0	0	KM 22	MB 22	Yes
73	40	H 2322 E	100	110	145	105	21.5	0	0	M 110x2	0	0	0	KMFE 22	0
74	17	H 222	100	110	145	63	19	21	0	M 110x2	0	0	0	KM 22	MB 22	Yes
75	132	H 322 E	100	110	145	77	21.5	0	0	M 110x2	0	0	0	KMFE 22	0	Yes
76	39	H 2322	100	110	145	105	19	21	0	M 110x2	0	0	0	KM 22	MB 22	Yes
77	95	H 3122 E	100	110	145	81	21.5	0	0	M 110x2	0	0	0	KMFE 22	0
78	41	H 2324	110	120	155	112	20	22	0	M 120x2	0	0	0	KM 24	MB 24	Yes
79	97	H 3124 L	110	120	145	88	20	22	0	M 120x2	0	0	0	KML 24	MBL 25
80	43	H 2324 EH	110	120	155	112	26	0	0	M 120x2	0	0	0	KMFE 24 H	0
81	96	H 3124	110	120	155	88	20	22	0	M 120x2	0	0	0	KM 24	MB 25	Yes
82	57	H 3024	110	120	145	72	20	22	0	M 120x2	0	0	0	KML 24	MBL 24	Yes
83	58	H 3024 E	110	120	155	72	26	0	0	M 120x2	0	0	0	KMFE 24	0
84	44	H 2324 L	110	120	145	112	20	22	0	M 120x2	0	0	0	KML 24	MBL 24	Yes
85	42	H 2324 E	110	120	155	112	26	0	0	M 120x2	0	0	0	KMFE 24	0
86	59	H 3026	115	130	155	80	21	23	0	M 130x2	0	0	0	KML 26	MBL 26	Yes
87	60	H 3026 E	115	130	165	80	28	0	0	M 130x2	0	0	0	KMFE 26	0
88	99	H 3126 L	115	130	155	92	21	23	0	M 130x2	0	0	0	KML 26	MBL 26
89	46	H 2326 L	115	130	155	121	21	23	0	M 130x2	0	0	0	KML 26	MBL 26
90	45	H 2326	115	130	165	121	21	23	0	M 130x2	0	0	0	KM 26	MB 26	Yes
91	98	H 3126	115	130	165	92	21	23	0	M 130x2	0	0	0	KM 26	MB 26	Yes
92	101	H 3128 L	125	140	165	97	22	24	0	M 140x2	0	0	0	KML 28	MBL 29	Yes
93	100	H 3128	125	140	180	97	22	24	0	M 140x2	0	0	0	KM 28	MB 29	Yes
94	61	H 3028	125	140	165	82	22	24	0	M 140x2	0	0	0	KML 28	MBL 29	Yes
95	47	H 2328	125	140	180	131	22	24	0	M 140x2	0	0	0	KM 28	MB 28	Yes
96	62	H 3028 E	125	140	180	82	28	0	0	M 140x2	0	0	0	KMFE 28	0
97	64	H 3030 E	135	150	195	87	30	0	0	M 150x2	0	0	0	KMFE 30	0
98	48	H 2330	135	150	195	139	24	26	0	M 150x2	0	0	0	KM 30	MB 30	Yes
99	104	H 3130	135	150	195	111	24	26	0	M 150x2	0	0	0	KM 30	MB 30	Yes
100	63	H 3030	135	150	180	87	24	26	0	M 150x2	0	0	0	KML 30	MBL 30	Yes
101	49	H 2330 L	135	150	180	139	24	26	0	M 150x2	0	0	0	KML 30	MBL 30
102	105	H 3130 E	135	150	195	111	30	0	0	M 150x2	0	0	0	KMFE 30	0
103	106	H 3130 L	135	150	180	111	24	26	0	M 150x2	0	0	0	KML 30	MBL 30
104	51	H 2332 L	140	160	190	147	25	28	0	M 160x3	0	0	0	KML 32	MBL 32
105	50	H 2332	140	160	210	147	25	28	0	M 160x3	0	0	0	KM 32	MB 32	Yes
106	107	H 3132	140	160	210	119	25	28	0	M 160x3	0	0	0	KM 32	MB 32	Yes
107	109	H 3132 L	140	160	190	119	25	27.5	0	M 160x3	0	0	0	KML 32	MBL 32
108	65	H 3032	140	160	190	93	25	27.5	0	M 160x3	0	0	0	KML 32	MBL 32	Yes
109	66	H 3032 E	140	160	210	93	32	0	0	M 160x3	0	0	0	KMFE 32	0
110	108	H 3132 E	140	160	210	119	32	0	0	M 160x3	0	0	0	KMFE 32	0
111	68	H 3034 E	150	170	220	101	33	0	0	M 170x3	0	0	0	KMFE 34	0
112	52	H 2334	150	170	220	154	26	29	0	M 170x3	0	0	0	KM 34	MB 34	Yes
113	110	H 3134	150	170	220	122	26	29	0	M 170x3	0	0	0	KM 34	MB 34	Yes
114	112	H 3134 L	150	170	200	122	26	29	0	M 170x3	0	0	0	KML 34	MBL 34
115	111	H 3134 E	150	170	220	122	33	0	0	M 170x3	0	0	0	KMFE 34	0
116	67	H 3034	150	170	200	101	26	28.5	0	M 170x3	0	0	0	KML 34	MBL 34	Yes
117	70	H 3036 E	160	180	230	109	34	0	0	M 180x3	0	0	0	KMFE 36	0
118	114	H 3136 L	160	180	210	131	27	29.5	0	M 180x3	0	0	0	KML 36	MBL 36
119	133	H 3936	160	180	210	87	27	29.5	0	M 180x3	0	0	0	KML 36	MBL 36
120	113	H 3136	160	180	230	131	27	29.5	0	M 180x3	0	0	0	KM 36	MB 36	Yes
121	53	H 2336	160	180	230	161	27	30	0	M 180x3	0	0	0	KM 36	MB 36	Yes
122	69	H 3036	160	180	210	109	27	29.5	0	M 180x3	0	0	0	KML 36	MBL 36	Yes
123	134	H 3938	170	190	220	89	28	30.5	0	M 190x3	0	0	0	KML 38	MBL 38
124	115	H 3138	170	190	240	141	28	30.5	0	M 190x3	0	0	0	KM 38	MB 38	Yes
125	54	H 2338	170	190	240	169	28	30.5	0	M 190x3	0	0	0	KM 38	MB 38	Yes
126	71	H 3038	170	190	220	112	28	30.5	0	M 190x3	0	0	0	KML 38	MBL 39	Yes
127	118	H 3140	180	200	250	150	29	31.5	0	M 200x3	0	0	0	KM 40	MB 41	Yes
128	135	H 3940	180	200	240	98	29	31.5	0	M 200x3	0	0	0	KML 40	MBL 40
129	55	H 2340	180	200	250	176	29	31.5	0	M 200x3	0	0	0	KM 40	MB 41	Yes
130	74	H 3040	180	200	240	120	29	31.5	0	M 200x3	0	0	0	KML 40	MBL 41	Yes
131	267	OH 3984 HE	400	420	490	168	52	0	66	Tr 420x5	9	4	HME 3084	MS 3085
132	201	OH 3168 H	320	340	440	254	55	0	72	Tr 340x5	9	3.5	HM 3168	MS 3172-68	Yes
133	136	OH 2344 H	200	220	280	186	32	35	0	Tr 220x4	9	6.5	HM 44 T	MB 44	Yes
134	161	OH 3064 H	300	320	380	171	42	0	55	Tr 320x5	9	6.5	HM 3064	MS 3068-64	Yes
135	202	OH 3168 HE	320	340	440	254	55	0	72	Tr 340x5	9	4	HME 3168	MS 3172-69
136	163	OH 3072 H	340	360	420	188	45	0	58	Tr 360x5	9	6.5	HM 3072	MS 3073	Yes
137	204	OH 3172 HE	340	360	460	259	58	0	75	Tr 360x5	9	4	HME 3172	MS 3172-69
138	137	OH 2348 H	220	240	300	199	34	37	0	Tr 240x4	9	6.5	HM 48 T	MB 49
139	162	OH 3068 H	320	340	400	187	45	0	58	Tr 340x5	9	6.5	HM 3068	MS 3068-65	Yes
140	268	OH 3988 H	410	440	520	189	60	0	77	Tr 440x5	12	6.5	HM 3088	MS 3092-89
141	203	OH 3172 H	340	360	460	259	58	0	75	Tr 360x5	9	4	HM 3172	MS 3172-69	Yes
142	164	OH 3076 H	360	380	450	193	48	0	62	Tr 380x5	9	6.5	HM 3076	MS 3080-76	Yes
143	165	OH 3080 H	380	400	470	210	52	0	66	Tr 400x5	9	6.5	HM 3080	MS 3080-77
144	138	OH 2352 H	240	260	330	211	36	39	0	Tr 260x4	9	6.5	HM 52 T	MB 53	Yes
145	206	OH 3176 HE	360	380	490	264	60	0	77	Tr 380x5	9	4	HME 3176	MS 3177
146	205	OH 3176 H	360	380	490	264	60	0	77	Tr 380x5	9	4	HM 3176	MS 3176	Yes
147	269	OH 3992 H	430	460	540	189	60	0	77	Tr 460x5	12	6.5	HM 3092	MS 3092-88
148	207	OH 3180 H	380	400	520	272	62	0	82	Tr 400x5	9	4	HM 3180	MS 3184-81	Yes
149	139	OH 2356 H	260	280	350	224	38	41	0	Tr 280x4	9	6.5	HM 56 T	MB 56	Yes
150	166	OH 3084 H	400	420	490	212	52	0	66	Tr 420x5	9	6.5	HM 3084	MS 3084
151	208	OH 3180 HE	380	400	520	272	62	0	82	Tr 400x5	9	4	HME 3180	MS 3184-81
152	270	OH 3996 H	450	480	560	200	60	0	77	Tr 480x5	12	6.5	HM 3096	MS 30/500-97
153	233	OH 39/530 HE	500	530	630	216	68	0	90	Tr 530x6	12	6	HME 30/530	MS 30/600-531
154	209	OH 3184 H	400	420	540	304	70	0	90	Tr 420x5	9	4	HM 3184	MS 3184-80	Yes
155	210	OH 3188 H	410	440	560	307	70	0	90	Tr 440x5	12	6.5	HM 3188	MS 3192-88
156	167	OH 3088 H	410	440	520	228	60	0	77	Tr 440x5	12	6.5	HM 3088	MS 3092-88
157	211	OH 3188 HE	410	440	560	307	70	0	90	Tr 440x5	12	6.5	HME 3188	MS 3192-88
158	168	OH 3092 H	430	460	540	234	60	0	77	Tr 460x5	12	6.5	HM 3092	MS 3092-88
159	234	OH 39/560 H	530	560	650	227	75	0	97	Tr 560x6	12	6	HM 30/560	MS 30/561
160	235	OH 39/560 HE	530	560	650	227	75	0	97	Tr 560x6	12	6	HME 30/560	MS 30/561
161	212	OH 3192 H	430	460	580	326	75	0	95	Tr 460x5	12	6.5	HM 3192	MS 3192-88	Yes
162	213	OH 3196 H	450	480	620	335	75	0	95	Tr 480x5	12	6.5	HM 3196	MS 3197
163	169	OH 3096 H	450	480	560	237	60	0	77	Tr 480x5	12	6.5	HM 3096	MS 30/500-96
164	236	OH 39/600 H	560	600	700	239	75	0	97	Tr 600x6	13	8	HM 30/600	MS 30/600-531
165	215	OH 32/530 H	500	530	670	447	80	0	105	Tr 530x6	12	6	HM 31/530	MS 31/530
166	170	OH 31/1000 H	950	1000	1240	609	125	0	154	Tr 1000x8	13	10	HM 31/1000	MS 31/1000
167	214	OH 32/500 H	470	500	630	428	80	0	100	Tr 500x5	12	6	HM 31/500	MS 31/500
168	217	OH 32/670 H	630	670	850	558	106	0	131	Tr 670x6	13	8	HM 31/670	MS 31/671
169	171	OH 31/1000 HE	950	1000	1240	609	125	0	154	Tr 1000x8	13	10	HME 31/1000	MS 31/1000
170	237	OH 39/630 H	600	630	730	254	75	0	97	Tr 630x6	12	6	HM 30/630	MS 30/630
171	216	OH 32/600 H	560	600	750	487	85	0	110	Tr 600x6	13	8	HM 31/600	MS 31/600-561
172	219	OH 32/750 H	710	750	950	603	112	0	141	Tr 750x7	13	8	HM 31/750	MS 31/800-750
173	238	OH 39/630 HE	600	630	730	254	75	0	97	Tr 630x6	12	6	HME 30/630	MS 30/630
174	172	OH 31/500 H	470	500	630	356	80	0	100	Tr 500x5	12	6.5	HM 31/500	MS 31/501
175	218	OH 32/710 H	670	710	900	572	106	0	135	Tr 710x7	13	8	HM 31/710	MS 31/710
176	239	OH 39/710 H	670	710	830	286	90	0	112	Tr 710x7	13	8	HM 30/710	MS 30/710
177	220	OH 3260 H	280	300	380	240	40	0	53	Tr 300x4	9	4.2	HM 3160	MS 3160	Yes
178	173	OH 31/530 H	500	530	670	364	80	0	105	Tr 530x6	12	6	HM 31/530	MS 31/531
179	240	OH 39/710 HE	670	710	830	286	90	0	112	Tr 710x7	13	8	HME 30/710	MS 30/711
180	222	OH 3268 H	320	340	440	288	55	0	72	Tr 340x5	9	4	HM 3168	MS 3172-68	Yes
181	221	OH 3264 H	300	320	400	258	42	0	56	Tr 320x5	9	4	HM 3164	MS 3165
182	174	OH 31/560 H	530	560	710	377	85	0	110	Tr 560x6	12	6	HM 31/560	MS 31/600-560
183	176	OH 31/600 H	560	600	750	399	85	0	110	Tr 600x6	13	8	HM 31/600	MS 31/600-560
184	223	OH 3272 H	340	360	460	299	58	0	75	Tr 360x5	9	4	HM 3172	MS 3172-69
185	241	OH 39/800 H	750	800	920	303	90	0	112	Tr 800x7	13	10	HM 30/800	MS 30/800-750
186	242	OH 39/850 H	800	850	980	308	90	0	115	Tr 850x7	13	10	HM 30/850	MS 30/900-850
187	224	OH 3276 H	360	380	490	310	60	0	77	Tr 380x5	9	4	HM 3176	MS 3176
188	177	OH 31/630 H	600	630	800	424	95	0	120	Tr 630x6	12	6	HM 31/630	MS 31/630
189	225	OH 3280 H	380	400	520	328	62	0	82	Tr 400x5	9	4	HM 3180	MS 3184-81
190	181	OH 31/710 HE	670	710	900	467	106	0	135	Tr 710x7	13	8	HME 31/710	MS 31/710
191	143	OH 30/530 H	500	530	630	265	68	0	90	Tr 530x6	12	6.5	HM 30/530	MS 30/600-531
192	246	OH 3944 H	200	220	260	96	30	0	41	Tr 220x4	9	4.2	HM 3044	MS 3045
193	226	OH 3284 H	400	420	540	352	70	0	90	Tr 420x5	9	4	HM 3184	MS 3184-80
194	227	OH 3288 H	410	440	560	361	70	0	90	Tr 440x5	12	6.5	HM 3188	MS 3192-89
195	248	OH 3948 H	220	240	290	101	34	0	46	Tr 240x4	9	4.2	HM 3048	MS 3052-48
196	182	OH 31/750 HE	710	750	950	493	112	0	141	Tr 750x7	13	8	HME 31/750	MS 31/800-750
197	144	OH 30/560 H	530	560	650	282	75	0	97	Tr 560x6	12	6.5	HM 30/560	MS 30/561
198	250	OH 3956 H	260	280	330	121	38	0	50	Tr 280x4	9	4.2	HM 3056	MS 3056
199	184	OH 3144 H	200	220	280	161	32	35	0	Tr 220x4	9	4.2	HM 44 T	MB 44	Yes
200	145	OH 30/600 H	560	600	700	289	75	0	97	Tr 600x6	13	6.5	HM 30/600	MS 30/600-531
201	183	OH 31/800 H	750	800	1000	505	112	0	141	Tr 800x7	13	10	HM 31/800	MS 31/800-751
202	249	OH 3952 H	240	260	310	116	34	0	46	Tr 260x4	9	4.2	HM 3052	MS 3052-49
203	146	OH 30/630 H	600	630	730	301	75	0	97	Tr 630x6	12	6.5	HM 30/630	MS 30/630
204	229	OH 3292 H	430	460	580	382	75	75	95	Tr 460x5	12	6.5	HM 3192	MS 3192-88
205	251	OH 3960 H	280	300	360	140	42	0	54	Tr 300x4	9	4.2	HM 3060	MS 3060
206	185	OH 3144 HTL	200	220	260	161	30	0	41	Tr 220x4	9	4.2	HM 3044	MS 3044
207	187	OH 3148 H	220	240	300	172	34	37	0	Tr 240x4	9	4.2	HM 48 T	MB 49	Yes
208	188	OH 3148 HTL	220	240	290	172	34	0	46	Tr 240x4	9	4.2	HM 3048	MS 3052-48
209	147	OH 30/670 H	630	670	780	324	80	0	102	Tr 670x6	13	6.5	HM 30/670	MS 30/671
210	253	OH 3964 H	300	320	380	140	42	0	55	Tr 320x5	9	4	HM 3064	MS 3068-64
211	254	OH 3968 H	320	340	400	144	45	0	58	Tr 340x5	9	4	HM 3068	MS 3068-65
212	189	OH 3152 H	240	260	330	190	36	39	0	Tr 260x4	9	4.2	HM 52 T	MB 53	Yes
213	148	OH 30/710 H	670	710	830	342	90	0	112	Tr 710x7	13	8	HM 30/710	MS 30/710
214	230	OH 3296 H	450	480	620	397	75	0	95	Tr 480x5	12	6.5	HM 3196	MS 3197
215	255	OH 3972 H	340	360	420	144	45	0	58	Tr 360x5	9	4	HM 3072	MS 3072
216	150	OH 30/800 HE	750	800	920	366	90	0	112	Tr 800x7	13	10	HME 30/800	MS 30/800-750
217	149	OH 30/800 H	750	800	920	366	90	0	112	Tr 800x7	13	10	HM 30/800	MS 30/800-750
218	231	OH 39/1060 H	1000	1060	1200	372	100	0	125	Tr 1060x8	15	12	HM 30/1060	MS 30/1000
219	191	OH 3152 HTL	240	260	310	190	34	0	46	Tr 260x4	9	4.2	HM 3052	MS 3052-49	Yes
220	192	OH 3156 H	260	280	350	195	38	41	0	Tr 280x4	9	4.2	HM 56 T	MB 56	Yes
221	256	OH 3972 HE	340	360	420	144	45	0	58	Tr 360x5	9	4	HME 3072	MS 3072
222	194	OH 3156 HTL	260	280	330	195	38	0	50	Tr 280x4	9	4.2	HM 3056	MS 3056
223	232	OH 39/500 H	470	500	580	208	68	0	85	Tr 500x5	12	6.5	HM 30/500	MS 30/500-96
224	151	OH 30/850 H	800	850	980	380	90	0	115	Tr 850x7	13	10	HM 30/850	MS 30/900-851
225	152	OH 30/900 H	850	900	1030	400	100	0	125	Tr 900x7	13	10	HM 30/900	MS 30/900-851
226	154	OH 3044 H	200	220	260	126	30	0	41	Tr 220x4	9	6.5	HM 3044	MS 3044	Yes
227	195	OH 3160 H	280	300	380	208	40	0	53	Tr 300x4	9	4.2	HM 3160	MS 3160	Yes
228	196	OH 3160 HE	280	300	380	208	40	0	53	Tr 300x4	9	3.9	HME 3160	MS 3160
229	259	OH 3976 H	360	380	450	164	48	0	62	Tr 380x5	9	4	HM 3076	MS 3080-76
230	155	OH 3048 H	220	240	290	133	34	0	46	Tr 240x4	9	4.2	HM 3048	MS 3052-48	Yes
231	198	OH 3164 H	300	320	400	226	42	0	56	Tr 320x5	9	3.5	HM 3164	MS 3164	Yes
232	156	OH 3048 HE	220	240	290	133	34	0	46	Tr 240x4	9	4.2	HME 3048	MS 3052-48
233	261	OH 3980 H	380	400	470	168	52	0	66	Tr 400x5	9	4	HM 3080	MS 3080-77
234	157	OH 3052 H	240	260	310	145	34	0	46	Tr 260x4	9	4.2	HM 3052	MS 3052-48	Yes
235	158	OH 3052 HE	240	260	310	145	34	0	46	Tr 260x4	9	4.2	HME 3052	MS 3052-48
236	263	OH 3984 H	400	420	490	168	52	0	66	Tr 420x5	9	4	HM 3084	MS 3084
237	159	OH 3056 H	260	280	330	152	38	0	50	Tr 280x4	9	6.5	HM 3056	MS 3056	Yes
238	160	OH 3060 H	280	300	360	168	42	0	54	Tr 300x4	9	6.5	HM 3060	MS 3060	Yes
239	141	OH 30/1060 H	1000	1060	1200	447	100	0	125	Tr 1060x8	15	6.5	HM 30/1060	MS 30/1000
240	178	OH 31/670 H	630	670	850	456	106	0	131	Tr 670x6	13	8	HM 31/670	MS 31/670
241	179	OH 31/710 H	670	710	900	467	106	0	135	Tr 710x7	13	8	HM 31/710	MS 31/710
242	140	OH 30/1000 H	950	1000	1140	430	100	0	125	Tr 1000x8	13	10	HM 30/1000	MS 30/1000
243	244	OH 39/900 H	850	900	1030	326	100	0	125	Tr 900x7	13	10	HM 30/900	MS 30/900-850
244	142	OH 30/500 H	470	500	580	247	68	0	85	Tr 500x5	12	6.5	HM 30/500	MS 30/500-96

Items per page

Contact the supplier

SKF

For a world of sustainable rotation

• AB SKF

  AB SKFSven Wingquists Gata 2SE-415 50 GothenburgSweden www.skf.com

  AB SKF www.skf.com
