SOLVED:If The Input To An RLC Series Circuit Is V = Vm COS Wt, Then ...

This problem has been solved by verified expert Sachin Rao 100% free to try See Answer

Question

If the input to an RLC series circuit is V = V_m cos ?t, then the current in the circuit is what? V_m / R cos ?t V_m cos ?t / sqrt(R^2 + ?^2 L^2) V_m sin ?t / sqrt(R^2 + (?L + 1 / ?C)^2) V_m cos(?t - ?) / sqrt(R^2 + (?L - 1 / ?C)^2) V_m sqrt(R^2 + (?L - 1 / ?C)^2) cos ?t If the input to an RLC series circuit is V = V_m cos ?t, then the current in the circuit is what? V_m / R cos ?t V_m cos ?t / sqrt(R^2 + ?^2 L^2) V_m sin ?t / sqrt(R^2 + (?L + 1 / ?C)^2) V_m cos(?t - ?) / sqrt(R^2 + (?L - 1 / ?C)^2) V_m sqrt(R^2 + (?L - 1 / ?C)^2) cos ?t Show more…

Added by Wendy S.

Close

University Physics with Modern Physics Hugh D. Young 14th Edition

Step 1

Step 1:** The current in the RLC series circuit is given by the formula: \[ I = \frac{Vm}{\sqrt{R^2 + (X_L - X_C)^2}} \cos(\omega t - \phi) \] where \(\phi = \tan^{-1} \left(\frac{X_L - X_C}{R}\right)\) ** Show more…

Show all steps

Please give Ace some feedback

Your feedback will help us improve your experience

Submit Thanks for your feedback! If the input to an RLC series circuit is V = Vm COS Wt, then the current in the circuit is what? Vm R COS Wt Vn cos &t VR? + 0 1? V_sin ot R? +(oL+1/ @C)? Vn cos(or R? + (@L - 1 / @C)? Vn VR? + (@L-1/@C)? cos ct Play audio Feedback Powered by NumerAI

Sachin Rao and 55 other Physics 101 Mechanics educators are ready to help you.

Ask a new question

Key Concepts

Key Concept Premium Feature Explore the core concept behind this problem. View Video View Video Key Concept Premium Feature Explore the core concept behind this problem. Your browser does not support the video tag. Close Try it Now

Recommended Videos

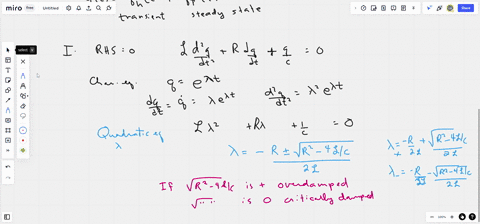

Consider the series RLC circuit driven by an alternating emf of value E0 sin ωt (shown as figure). The differential equation of this circuit is L q¨ + R q˙ + q/C = E0 sin ωt. Please solve q(t).

Linda W.

" The Equation of current in AC circuit is I = 4sin (100pi t+pi/3)A Calculate. (i) RMS Value (ii) Peak Value (iii) Frequency (iv) Initial phase (v) Current at t = 0"

Dharmendra M.

AC circuits - current: If the voltage and impedance are known, the current $I$ in the circuit is calculated as the quotient $I=\frac{V}{Z} .$ Write $V$ and $Z$ in trigonometric form to find the current in each circuit. $$V=4 \sqrt{3}-4 j \text { and } Z=1-1 j \Omega$$

Applications of Trigonometry

Complex Numbers in Trigonometric Form

Recommended Textbooks

University Physics with Modern Physics

Hugh D. Young 14th Edition 1,952 solutions

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition 1,684 solutions

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition 1,832 solutions

Transcript

00:01 We have given if the input to an rlc series circuit is v is equal to v m cos omega t then the current in the circuit is what? so we know that current i is equals to v by z where z is impedance that is equal to 2 root of r square plus xl minus xc whole square. 00:34 X l is equal to omega into l and x c is equal to one on omega c so this z will be equal to square root of r square plus omega l minus one upon omega c whole square so this current i will be equal to v divided by square root of r square plus omega l minus one upon omega c whole square now, we know that current lag by 5, so this will be vm cos omega t minus 5... Need help? Use Ace Ace is your personal tutor. It breaks down any question with clear steps so you can learn. Start Using Ace Ace is your personal tutor for learning Step-by-step explanations Instant summaries Summarize YouTube videos Understand textbook images or PDFs Study tools like quizzes and flashcards Listen to your notes as a podcast
