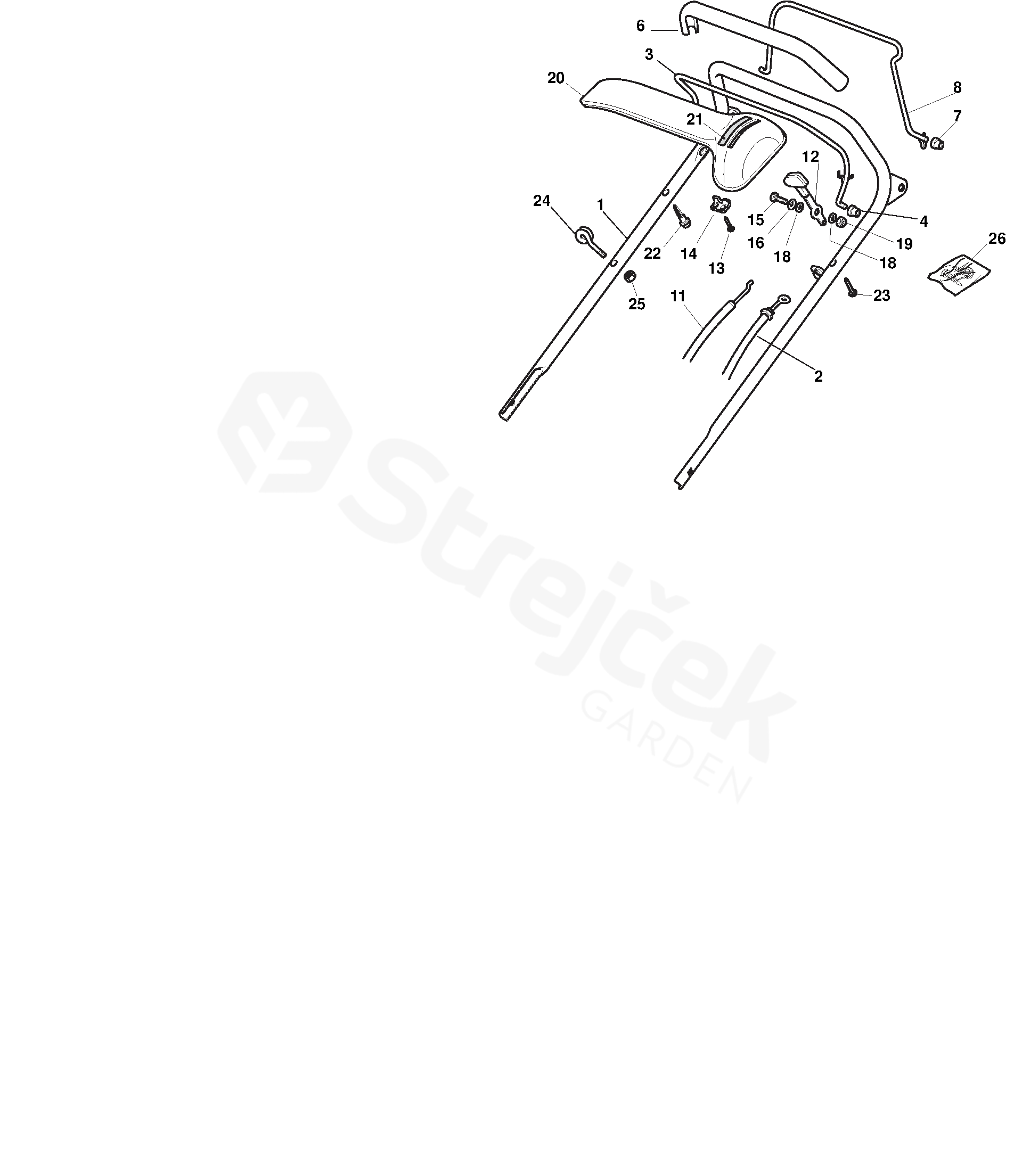

Spare Parts - Partlist - Handle, Upper Part/Dash Board

We deliver to more than 25 countries [email protected] We focus especially on spare parts, just click! Log in / Registration Sign In E-mail: Password: Stay logged in Log in Forgot your password? I'm new here: register / Log off EN € CS EN € Kč Your CART Awaiting fulfillment ks Empty cart Order Are yousure to empty your cart? Yes, empty I don't want to , , Spare parts Everything for your machines Spare parts > Castelgarden > Lawn Mower > T 484 TR T 484 TR (2007) [296506043/C] > Handle, Upper Part/Dash Board Back to T 484 TRT 484 TR (2007) [296506043/C] Handle, Upper Part/Dash Board T 484 TR T 484 TR (2007) [296506043/C] Hover mouse on parts list Wheel: Zoom, left button: Movement Other parts For T 484 TR (2007) [296506043/C]

1	Handle, Upper Part Black	381006857/0
2	Cable, Thread Engine Brake SV40 / RV 40 / V35 Engine	181000615/0
3	Lever, Engine Brake	181003291/3
4	Bushing	322041965/1
6	Handgrip Black	122291050/0
7	Bushing	122041966/0
8	Driving Lever	181003288/1
11	Throttle Cable	481007160/0
12	Throttle Lever SV40-RV 40-V35 Engine / B&S 450-500 Series	381007221/0
13	Screw	112735105/0
14	Plate	322981467/0
15	Screw	112791500/0
16	Spring washer	112530060/0
18	Washer	112523040/0
19	Nut	112154510/0
20	Red Dashboard	422120154/0
21	Throttle Label ST. Engine	114356743/0
22	Screw	122943006/0
23	Screw	112728460/0
24	Spring	122430309/0
25	Nut	112154330/0
26	Outfit, Screws	381008609/0
