Home Page > Milling & Solid End mills > Facing > TEBL-M-06 > TEBL 426-M12-06

Milling & Solid End mills Main Application

Facing Sub Application

More Info Related Insert Related Holder

Family Designation: TEBL-M-06

High feed end mills with BLMP 06 inserts of 4 cutting edges and T-FLEXTEC modular adaptations in max. ap 1.0 mm

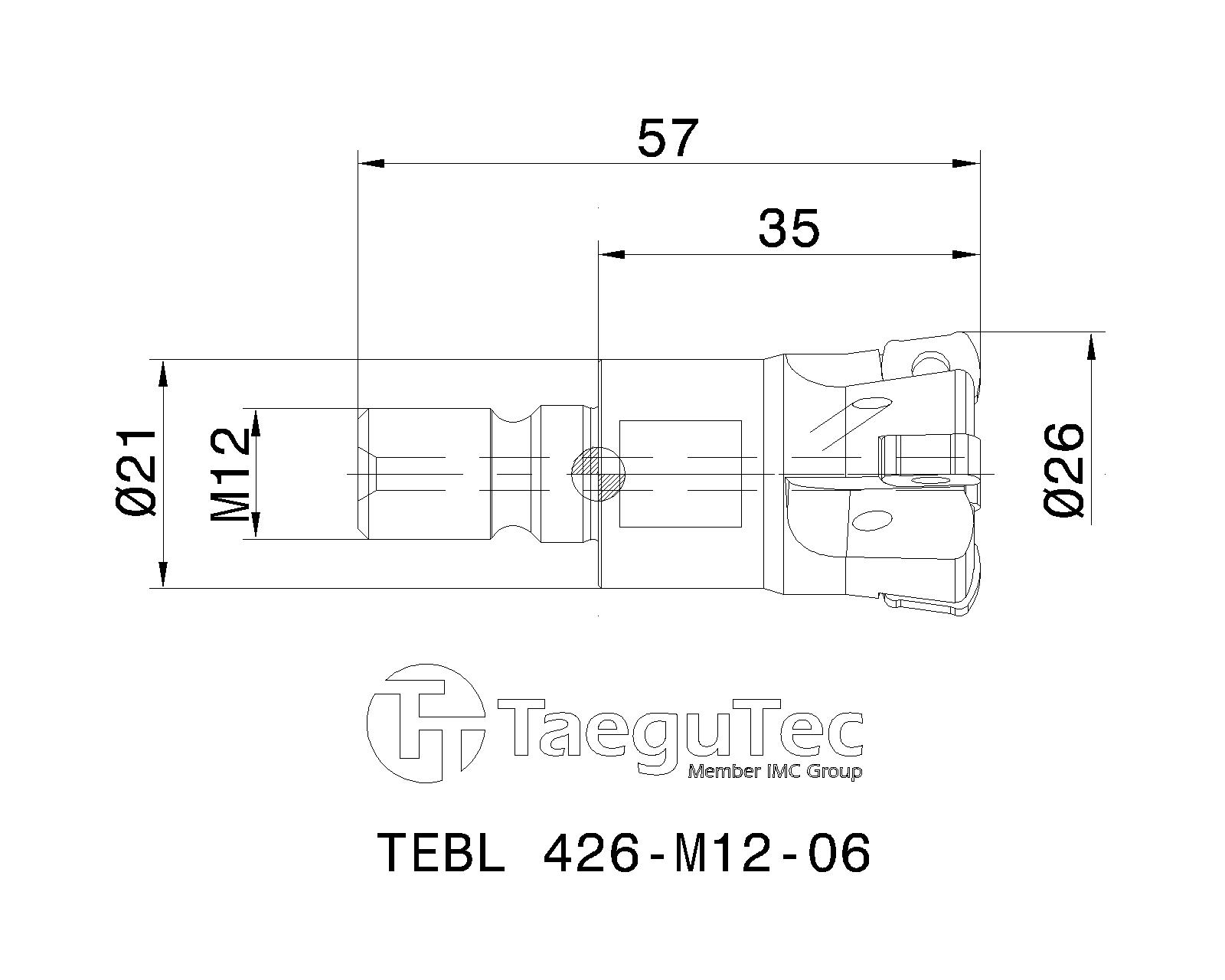

Item Designation: TEBL 426-M12-06

Tool sty	DCX	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	S1	RMPX		HAND	KAPR	Arbor	PD	Insert	ClssID	MIID		CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT	GIREM	giic
MODULAR ~	26.00	18.30	4	21.00	35.00	57.00	M12	1.00	6.00~	1.20~	0.11	~	1.0~	~	RF ~	C2F-BL06 ~	71E01A05D27A8 ~	BLMP 0603R-M	O ~	SAI ~	02 ~	FF ~	IS$$877771310369352 ~	35.00~	0~	4~	4~	4~	6114419	0

Catalog No	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	Add to Assembly
6114419		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6114419&cat=6114419&itemDesc=TEBL 426-M12-06"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6114419', 'TEBL 426-M12-06' , 'DXF' , '6114419 - TEBL 426-M12-06');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>

Items Per Package : 1

3D Representation

Light Detailed

3D Required

2D Representation	ISO	2D Required

Spare Parts
	4353188	TS 25064I/HG-P	Screw
	4351772	TD 8P(362IP 26095)	TD wrench
