All Graphic cardsAMD Radeon RX 9000 Series          - Radeon RX 9070 Series          - Radeon RX 9060 Series          - Radeon AI Pro R9700AMD Radeon RX 7000 SeriesAMD Radeon RX 6000 SeriesAMD Radeon RX 5000 SeriesAMD Radeon RX 500 SeriesLegacy GPUsGRAPHIC CARDSAMD Radeon™  RX 9000 Series   - Radeon™  RX 9070 Series   - Radeon™  RX 9060 Series   - Radeon™  AI pro R9700AMD Radeon™  RX 7000 SeriesAMD Radeon™  RX 6000 SeriesAMD Radeon™  RX 5000 SeriesAMD Radeon™  RX 500 SeriesWhere to BuySUPPORTDrivers & DownloadsXFX WarrantyRegister Your ProductFAQsContact UsRX-580P826D6XFX AMD Radeon™ RX 580 GTS XXX Edition 8GB

Get Future Ready Technologies, Optimized Game Performance, and Game Changing Control in the latest Radeon™ RX 500 Series Graphics Cards. Radeon™ RX 500 Series Graphics Cards feature the latest Polaris architecture which includes the 4th Gen GCN graphics cores, a brand new display engine, new multimedia cores, all on the revolutionary Next FinFET 14 process technology for enhanced performance and efficiency.

Where to BuyWhere to Buy

Built for the gamer.

1366True Clock (MHz), Up to8000Memory Clock (MHz)256Bit Memory2304Stream ProcessorsOverviewSpecificationsSupport and Downloads

We have re-imagined everything a gaming card can do and made it more accessible. The 4th generation Graphics Core Next (GCN) architecture is engineered for gamers who play anything from the latest MOBA’s to the most popular AAA titles. Asynchronous Shaders and an enhanced Geometry Engine power new levels of smooth gameplay performance.

Get the next level of gaming immersion with the world of VR gaming and entertainment with Radeon RX graphics cards powered by the revolutionary Polaris architecture.

Experience the latest premium technologies optimized around the revolutionary FinFET 14 technology that provides extraordinary performance and efficiency. Enjoy cool and quiet gaming, and leverage new possibilities with optimized levels of efficient headroom.  Imagine the future upgrade capabilities with HDMI™ 2.0b and Display Port 1.3/1.4 features that can enable the latest generation of displays to deliver beautiful beyond-HD, HDR, and ultra-smooth FreeSync™ experiences.

Key Features

• FinFET 12nm Technology• PCI Express® 3.0• AMD Crossfire Technology• AMD Xconnect Ready• Microsoft® Windows® 10 Support• Microsoft® DirectX™ 12 Support• AMD Chill• AMD Virtual Super Resolution (VSR)• AMD Relive• AMD FreeSync 2 • AMD Frame Rate Target Control (FRTC) • AMD Eyefinity multi-display technology• AMD Radeon Adrenalin Software 2019• AMD WattMan• HDMI 2.0b• Displayport 1.4 • Dolby TrueHD and DTS-HD Master Audio Support• Up to 6 displays supported, (may require the use of MST Hubs)• OpenGL 4.5 Support• OpenCL Support

‍

Model Number RX-580P826D6

Product Name AMD Radeon™ RX 580

Product Description GTS XXX ED RX 580 8GB OC+ 1386M D5 BP 3xDP HDMI DVI

Launch Date Apr 18,2017

UPC Number 778656075665

‍

Specifications

Bus Type PCI-E

GPU Clock True:1366MHz, Boost OC+:1386MHz

Stream Processors 2304

Memory Bus 256 bit

Memory Clock True:8.0GHz, Boost OC+:8.1GHz

Memory Size 8 GB

Memory Type DDR5

Card Profile Dual

Thermal Solution DD Fansink

‍

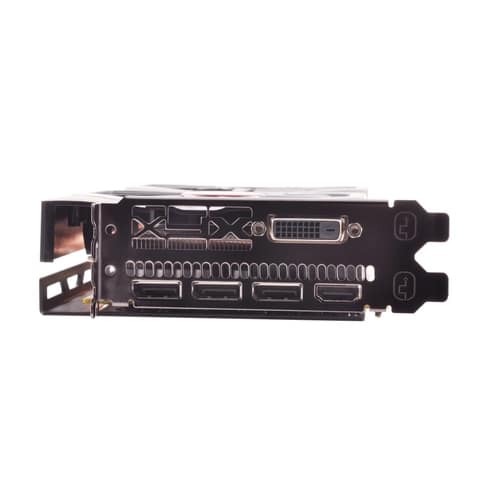

Outputs

Dual link Support Y

Max Supported Resolution (DIGITAL) 4096 x 2160

Output - Display Port 3

Output - HDMI 1

Output - DL-DVI-D 1

‍

Features

Display Port ready 1.4

HDMI Ready 2.0b

‍

Requirements

External Power - 8-pins 1

Minimum Power Supply Requirement 500 watt

XFX Recommended Power Supply XFX 550W PSU

‍

‍

Technologies

AMD FreeSync™ 2 technology

Radeon™ Chill

ReLive Capture

DirectX® 12

Vulkan™

AMD Virtual Super Resolution (VSR)

Radeon™ Software

AMD CrossFire™ Technology

AMD XConnect™ Ready

AMD Eyefinity Technology

OpenCL™ Support

Polaris Architecture

AMD LiquidVR™ technology

‍

Certifications

RoHS

‍

Package Contents

8-pin to 6-pin power cable 1

Driver Disk Installation Guide 1

Installation DVD 1

‍

Estimated Dimensions And Weights

Card Dimension (cm) 27 x 12.4 x 4

Card Dimension (inch) 10.63 x 4.88 x 1.57

Master Carton Dimensions (cm) 43 x 49 x 35.5

Master Carton Dimensions (inch) 16.93 x 19.29 x 13.98

Master Carton Weight (Kg) 14.5 est.

Master Carton Weight (lb) 31.97 est.

Package Dimensions (cm) 34 x 24 x 8

Package Dimensions (inch) 13.39 x 9.45 x 3.15

Package Weight (Kg) 1.3 est.

Package Weight (lb) 2.87 est.

Units/Carton 10

‍

‍

Support and Downloads

Knowledgebase

Common questions, answers, and guides:

XFX Knowledgebase

‍

Drivers

The latest drivers can be obtained directly from AMD.

https://www.amd.com/en/support

Award Winning Technologies

The reviews are in, and the RX 500series from XFX Rocks.

Check out what our reviewers have to say:"So obviously XFX has stumbled across some sort of magic formula when it comes to the RX 480." - Jayztwocents

“XFX has put together a solid and well-built video card. It operates silently, power efficient and very cool.” - Overclocker's Club

‍

XFX Dual BIOS Capable

You choose your experience

We know enthusiast like options, so for our RX 500 series graphics cards we are offering Dual BIOS options. If you want optimal performance and want to keep your card cool as possible then use our Performance BIOS. If you prefer stealth, our Quiet Lower RPM BIOS might be the right options for you

XFX True Clock Technology

BIOS Controlled overclocking

Software controlled clock speeds can be hindered by overall computer performance. XFX's True Clock however is hardware controlled clock speed performance optimization, so your card is always running at an optimized performance level.

‍

Zero dB Auto Load Sensing Fans

Power when you need it and quiet when you don't.

XFX fans are equipped to run at the highest possible performance, while our Zero DB Fan System will also keep your fans running at efficient RPM in order to minimize annoying fan noise by lowering RPM all the way down to Zero RPM. When the heat is on during intense gaming, our fans will speed up as needed.

‍

AMD VR Ready Premium

For extraordinary virtual reality experiences.

Experience the new generation of compelling Virtual Reality content with the Radeon™ RX 500 series graphics cards paired with the leading VR headsets. The Radeon™ RX 500 series card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ RX 500 series to deliver premium experiences on high-end VR games,entertainment, and applications.

‍

AMD FreeSync™ 2 Technology

No stuttering. No tearing. Just gaming.

Gaming shouldn’t be a choice between choppy gameplay and high performance. With XFX Radeon™ RX 500 series graphics cards and Free Sync technology, it doesn’t have to be. Transform the most demanding games into a liquid-smooth, artifact-free, 4K cinematic experience with the highest performance at virtually any frame rate. FreeSync works at the speed of your game for incredible responsiveness and uncompromising smoothness. Every gamer deserves perfectly smooth gameplay and peak performance. Unlike the competing technology, you don’t have to choose with FreeSync technology.

‍

Extreme 4K Gaming for serious gamers

Experience resolutions up to four times higher than HD and see everything your opponent throws at you without sacrificing a single detail.

Teleport into life-like4K gaming realism with AMD Radeon™ Rx 500 Series graphics. Reign over all the action in 4K with supercharged performance and 256-bit GDDR5 memory. Add more muscle with AMD CrossFire technology and amplify your gaming performance with the superior scalability with multiple Rx 500 Series GPUs.

‍

XFX's 3 Year Warranty

Giving you the performance you have come to expect from XFX.

Even though we trust that our high quality products will continue working at peak performance well beyond your use of it, we want to put our word behind that promise. That is why we offer our 3 Year Warranty with this series of graphics cards. This means that your product is protected by a 3 year limited hardware warranty on manufacturing defects of anything on the card.

‍
