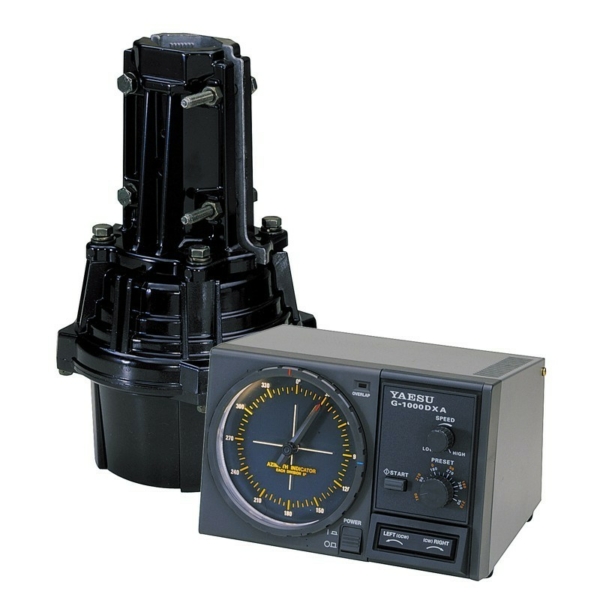

Yaesu G-1000DXC ROTATOR 220V2 WITH CONNECTOR, WO CABLE

Join our community for interesting content

Follow our Facebook page!

Check out our YouTube channel!

Read our latest blog posts!

Model:	AAA66X007
Nyíregyháza (HU):	1 pcs in stock
Budapest (HU):	Back Order
Test device:	Back Order
(4)

For EU private customers:

VAT is recalculated to your local VAT, when you add your country through checkout menu.

Companies with EU VAT number:

We deduct the VAT on the invoice, please put your EU VAT number to the Note column when you process the order through checkout menu!

For NON EU customers:

We charge the NET price (exl VAT). Shipping and insurance varies by countries. Please ask for quotation! Paying import duty and tax is your own task, insurance is your own risk. 542.66 EUR (456.01 EUR + VAT) Qty:pcsAdd to Cart

• Description
• Reviews4

Description

YAESU G-1000DXC ROTATOR 220V2 WITH CONNECTOR, WO CABLE. The product can also be ordered with a custom-length of rotator cable. Please indicate this requirement in the comments section.

Power Supply Voltage:	117 VAC, 50-60 Hz
Power Supply Current Consumption:	1.0 Amp
Rotor Voltage:	11-24 VDC
Cable Conductors Required:	6
360° Rotation Time (Non Loaded):	100 ą10 sec
0	40 ą 5 sec (Variable)
Rotation Range:	450° ą 3°
Rotation Torque:	43-79 Ft. Lbs. (600 to 1,100 kgf-cm)
Braking Torque:	6000 kgf-cm
Maximum Vertical Load:	440 Lbs. (200 kg) continuous
1320 Lbs. (800 kg) momentary
Mast Outside Diameter:	1.5 to 2.5 inches (38 to 63 mm)
Braking Type:	Mechanical and Electrical stoppers
Antenna K Coefficient:	230 or less
Wind Loading Area: (Pole Type)	0.75 m2
(Tower Type)	2.2 m2
Maximum Continuous Duty:	3 minutes
Operating Temperature Range:	0°C to +40°C (Controller)
-20°C to +40°C (Rotator)
Rotator Dimension:	7.5 inches diameter 12.5 inches high (186 x 300 mm)
Rotator Weight:	7.7 Lbs. (3.6 kg)
Controller Dimension (WHD):	200 x 130 x 193 mm
Controller Weight:	Approx. 2.8 kg
Specifications are subject to change without notice or obligation.

Reviews

5.00 4 rating (4) (0) (0) (0) (0) Write a review! I value the product Németh Gábor | Verified purchase 29/05/2022 A termék kiváló és a rendelés folyamata is hibátlan volt a szállítás akkor történt amikor jelezték. Lengyel Ferenc | Verified purchase 05/07/2021 Mint a villám olyan gyors a kiszolgálás. Minden Ok. Turi Erzsébet | Verified purchase 24/08/2020 Nagyon korrekt és gyors volt minden, köszi. Zsolt | 22/12/2017 Nagyon meg vagyok vele elegedve. Kalibralas nagyon egyszeru volt. Tisztan erthetoen le van irva a doksijaban minden. 5 perc volt a beallitas. Japan minoseg.

Write Review

Your Name: Your Review: Note: HTML is not translated! Rating: Bad Good I consent to Anico Kft. posting my comments publicly on the website. I declare that I have read the General Terms and Conditions and the data management information, I understand that I can withdraw my consent at any time. phone_number Enter the code in the box below: * Next

Optional products

Back Order

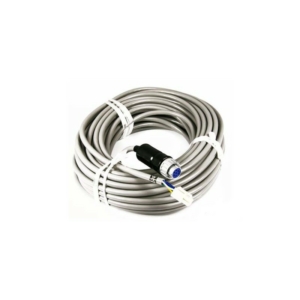

Yaesu ROTATOR CABLE

82.59 EUR Back Order

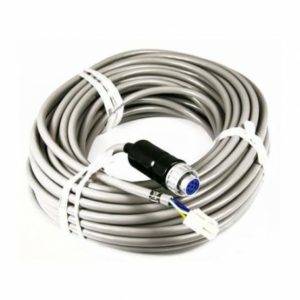

Yaesu ROTATOR CABLE

130.08 EUR -10% On stock

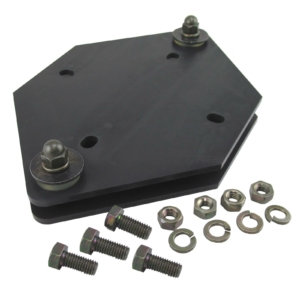

Yaesu GA-2500 ABSORBER JOINT

70.55 EUR 63.50 EUR -7.06 EUR -10% On stock

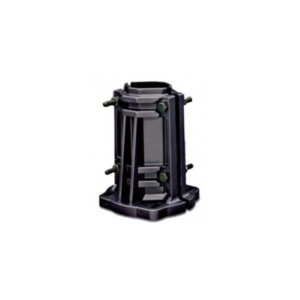

Yaesu GC-038 MAST CLAMP / BROWN

32.85 EUR On stock

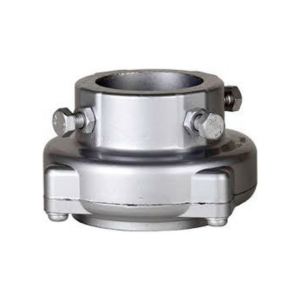

Yaesu GS-050 STAY BEARING

42.16 EUR Back Order

Yaesu GS-065 STAY BEARING

65.63 EUR On stock

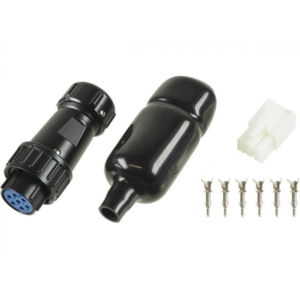

Yaesu 40M-WP ROTATOR CONNECTOR 7 POL

36.15 EUR On stock

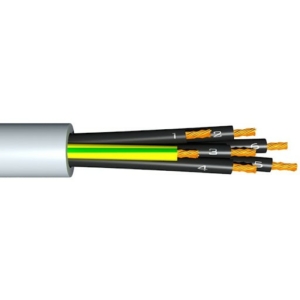

YSLY-JZ rotator cable

1.59 EUR Back Order

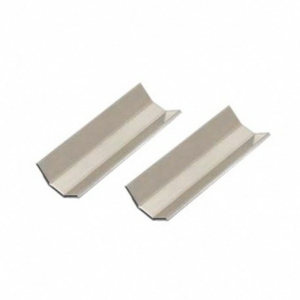

Yaesu GL-33 Mast adjustment plates / Yaesu G-450, G-1000, G-2800

9.81 EUR

Similar products

Back Order

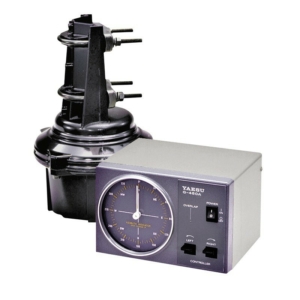

Yaesu G-450CDC ROTATOR

332.25 EUR Back Order

Yaesu ROTATOR CABLE

130.08 EUR On stock

Yaesu GA-3000 ABSORBER JOINT

113.56 EUR On stock

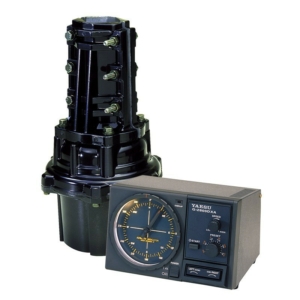

Yaesu G-2800DXC ROTATOR

995.53 EUR Back Order

Yaesu ROTATOR CABLE

82.59 EUR -10% On stock

Yaesu GA-2500 ABSORBER JOINT

70.55 EUR 63.50 EUR -7.06 EUR -10% Back Order

Yaesu GS-065 STAY BEARING

65.63 EUR On stock

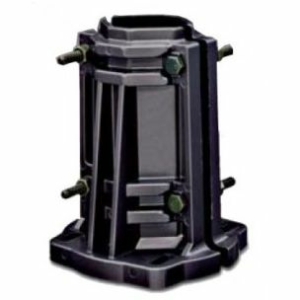

Yaesu GC-048 MAST CLAMP
