Wiring a stove is not as simple as picking any wire from the hardware store. The wire size plays a crucial role in ensuring safety and efficiency.

Here’s what I usually go by: for currents up to 30 amps, a 10 Gauge AWG wire is your best bet. It’s sturdy and reliable for that level of current. If we’re talking about currents between 40 to 50 amps, I step it up to an 8 Gauge AWG wire. Now, for anything over 50 amps, I don’t take chances – a 6 Gauge AWG wire is the way to go.

So, this article is your go-to guide whether installing a new stove or replacing an old wire. Let’s dive in and get you up to speed on everything you need about stove wiring.

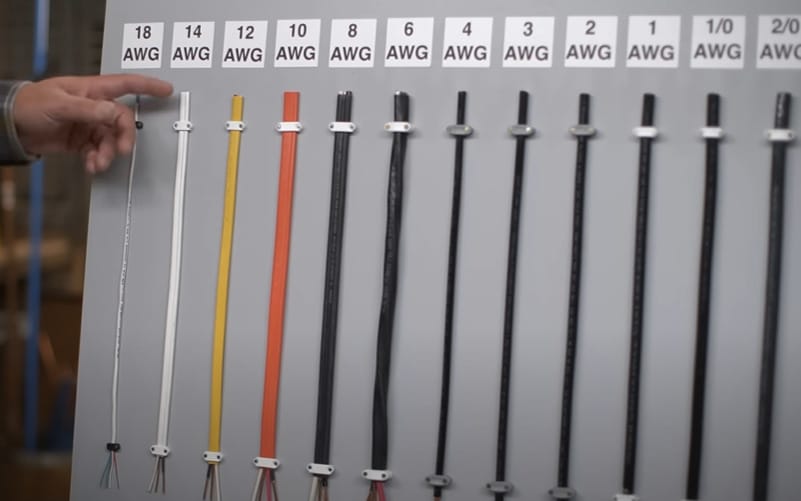

Understanding Wire Gauge Numbers

Pin

As we unravel the world of stove wiring, it’s essential to understand how wire gauge numbers work. Wire gauge is a standard measurement that denotes the diameter of the wire.

As you might expect, thicker wires can carry more current without overheating, making them crucial for appliances like stoves that consume much power.

The gauge numbering system might seem counter-intuitive at first. In this system, smaller numbers indicate thicker wires, while larger numbers correspond to thinner wires. For example, a 10-gauge wire is thicker – and can handle higher current – than a 14-gauge wire.

Wire Gauge	Rated Amperage
10	30 Amps
8	40 Amps
6	55 Amps

From this table, you can see that a 10-gauge wire can handle up to 30 amps, an 8-gauge one goes up to 40 amps, and with a 6-gauge, you’re good until 55 amps.

Remembering these figures is critical as they’ll help you match the stove’s power requirements with the appropriate wire size.

Wire Size Recommendations for Different Stove Types

Before you embark on wiring your stove, it’s imperative to know that different types of stoves have specific wire size recommendations.

Pin

I’ve provided general wire size recommendations for some common stoves below to guide you through this task.

• Electric Range Stoves. For standard electric range stoves that run on a power of about 40 to 50 amps, an 8-gauge wire is a typical recommendation. If your electric range runs on a higher amperage, say around 60 amps, you’d need to dial up the wire size to 6 gauge.
• Gas Stoves. Gas stoves are a different beast altogether. They generally require electricity for ignition and power any controls or displays, not cooking heat. Hence, smaller wire sizes, such as 14-gauge wire, would suffice here.
• Induction Stoves. Induction stoves usually require more power due to their high efficiency and speedy performance. As a rule of thumb, these stoves often need a larger wire in the 6-gauge to the 8-gauge range.

However, these are general recommendations and it’s strongly advised to always refer to the manufacturer’s instructions that come with your particular stove model.

Factors to Consider for Choosing the Right Wire Size

As a seasoned home improvement expert, I’ve learned that choosing the right wire size for your stove is a task that demands attention to detail and a deep understanding of various factors.

It’s not just about knowing wire gauges; it’s about considering a combination of elements that influence the performance and safety of your stove.

• Wire Length: In my experience, the longer the wire, the more electrical resistance it encounters. This can significantly affect your stove’s performance. If your stove is far from the circuit breaker, you’ll likely need a wire with a smaller gauge number.
• Appliance Load: Following the manufacturer’s instructions in the letter is crucial. These instructions will tell you the amount of load, in amps, that your stove model places on the wire. To illustrate this, I’ve included the most common wire sizes and their corresponding amp loads below:

Wire Gauge	Amp Load
10	30
8	40
6	55
4	70

• Insulation Type: In my projects, I’ve seen that different wires are designed to tolerate different temperature levels, depending on their insulation. Some can withstand temperatures up to 60 degrees Celsius, while others can handle up to 90 degrees Celsius. Selecting the right insulation type for your stove wire is as important as choosing the correct size.
• Installation Environment: Whether you’re installing the wire indoors or outdoors, in an open or enclosed space, these factors can greatly influence the wire size choice. Wireless wires in warmer environments or confined spaces typically require a smaller gauge. This ensures they can handle the additional heat without compromising safety or functionality.

In all my years of working on home projects, I’ve learned that matching the wire size to your stove’s power requirements is fundamental for ensuring safety and optimal performance. By considering these crucial factors, you’re making an informed decision that will serve you well in the long run.

Troubleshooting Guide for Stove Wiring Issues

Let’s dive into some common issues you might face with stove wiring and how to tackle them. Remember, safety first – if you’re unsure, always call a pro!

Issue	Symptoms	Possible Causes	Recommended Fix
Frequent Circuit Breaker Tripping	Circuit breaker trips often when the stove is in use.	Overloaded circuit or incorrect wire gauge.	Check the stove’s amperage against the breaker’s capacity. Upgrade the breaker if its amp rating is too low. Ensure the wire gauge matches the stove’s requirements (10 AWG for up to 30 amps, 8 AWG for 40-50 amps, 6 AWG for over 50 amps).
Inadequate Heating Performance	Stove heats up slowly or doesn’t reach the desired temperature.	Undersized wiring or a loose connection.	Confirm the wire size matches your stove’s amperage. Tighten all connections. If issues persist, seek professional inspection.
Flickering Stove Lights or Display	Lights or displays on the stove flicker, especially with other appliances running.	Overloaded circuit or voltage fluctuations.	Ensure the stove is on a dedicated circuit. If flickering continues, consult a professional to check for voltage stability.
Stove Not Turning On	The stove doesn’t power on at all.	Tripped breaker, blown fuse, or faulty wiring.	Check the circuit breaker or fuse box. Reset the breaker or replace the fuse if needed. If this doesn’t resolve the issue, inspect the wiring for damage or loose connections.
Overheating Wires or Outlets	Wires or outlets become unusually hot during stove operation.	Undersized wires or a faulty outlet.	Cease using the stove and contact a professional immediately. Do not use the stove until the wiring and outlet have been inspected and repaired by a qualified electrician.

Note: Electrical work can be hazardous. Always consult a professional electrician for any uncertainties or complex issues to ensure safety and proper functionality.

Frequently Asked Questions

• Can I Use Aluminum Wiring for My Stove?
  • While aluminum wiring is an option, it’s not commonly recommended due to its lower conductivity than copper. If you choose aluminum, ensure it’s appropriately sized and installed by a professional.
• How Do I Know If My Wiring Meets Local Electrical Codes?
  • The best way to ensure compliance is to consult a licensed electrician familiar with local codes. Electrical codes can vary, so professional guidance is key to ensure your setup is safe and legal.
• Can I Install the Wiring Myself?
  • If you have experience with electrical systems, you might be able to do it. However, hiring a professional is safer and more reliable for most people. Incorrect installation can lead to safety hazards.
• How Often Should I Check the Wiring of My Stove?
  • It’s a good idea to inspect your stove’s wiring during regular appliance maintenance or if you notice any issues like flickering lights or tripping breakers. A professional inspection every few years can also be beneficial.
• Can Weather Affect My Outdoor Stove’s Wiring?
  • Yes, outdoor stoves require weatherproof wiring and components to withstand elements like moisture and temperature changes. Make sure all outdoor electrical installations are done according to safety standards.
