CB2100

See data in: Metric Imperial Download as pdf Wire rope isolators: 'Helical' DEFINITION series CB2100

• All metal multidirectional anti-vibration/shock mounts
• Exceptional reliability and long life
• High damping
• No aging
• Corrosion resistant
• Unequalled temperature range : -180°C to +300°C / -290F to 570 F
• Great adaptability/versatility

Specials on request

(material size and number of loops, etc.)

Dimensions are in inches. For reference only

Series

Materials and finishes (meets RoHS requirements)

CB2100

Cable: stainless steel galvanized available: CBG Retainer bars: aluminium alloy/ SurTec Screws: alloy steel/ zinc plate Inserts: stainless steel All stainless steel: CBSS Other materials on request Model

height

H (in)

width

W (in)

weight

(lbs)

-10 7,7 9,8 79 -12 9,1 11,0 90 -15 10,2 12,6 100 Interfaces

fixtures holes D

Bar 2 Bar 1 ø 0.80 in through holes ø 0.80 in through holes counter-sunk 82° 3/4 - 10 inserts ø 0.80 in through holes T2 not standard not standard ø 0.80 in through holes counter-sunk 82° C C2 not standard 3/4 - 10 inserts I CI I2 C B 2 1 0 0

Serie: CB2100

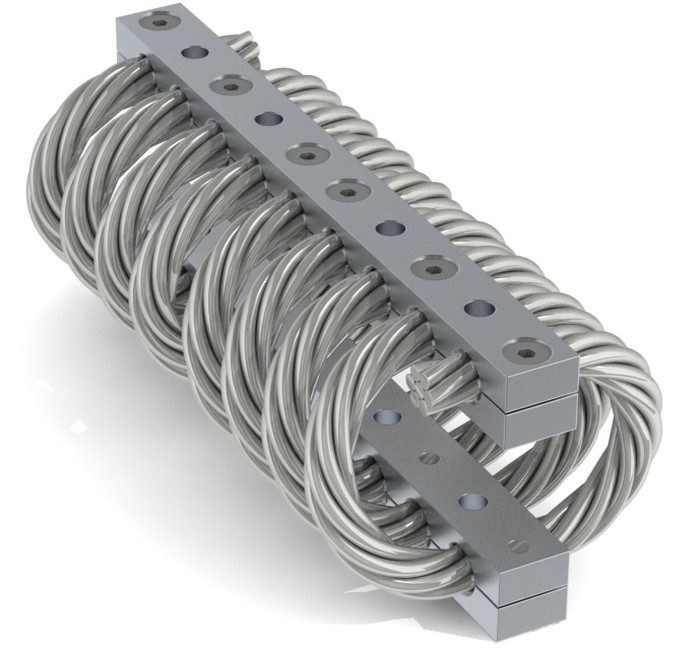

'Helical' mount from the CB2100 series

- 1 0

Model: -10

height: 7,7in width: 9,8in weight: 79lbs loops: serie standard is 08 loops

C I

Interface: CI

ø 0.80 in through holes counter-sunk 82° in bar 1, 3/4 - 10 inserts in bar 2

1 Wire rope isolators: 'Helical' PERFORMANCE DATA series CB2100

Compression and tension

CB2100 Series Model -10 -12 -15 1. Max Static F lbf 7900 6600 5000 d in 0,46 0,69 0,89 2. Max Shock F lbf 24000 20000 15000 d in 2,5 3,8 4,8 3. Max Vibration 2a in 0,28 0,41 0,53 f Hz 5,1 4,0 3,5 1. Max Static F lbf 7900 6600 5000 d in 0,46 0,61 0,77 2. Max Shock F lbf 110000 76000 58000 d in 2,7 3,0 3,8 3. Max Vibration 2a in 0,29 0,33 0,41 f Hz 5,8 5,2 4,6

Compression/roll 45° - Tension/roll 45°

CB2100 Series Model -10 -12 -15 1. Max Static F lbf 5900 4900 3800 d in 0,80 1,1 1,4 2. Max Shock F lbf 16000 13000 10000 d in 3,8 5,6 7,2 3. Max Vibration 2a in 0,41 0,62 0,80 f Hz 4,2 3,4 3,0 1. Max Static F lbf 5900 4900 3800 d in 0,61 0,79 1,0 2. Max Shock F lbf 55000 38000 29000 d in 3,0 3,4 4,3 3. Max Vibration 2a in 0,33 0,37 0,47 f Hz 5,2 4,6 4,1

Shear or Roll

CB2100 Series Model -10 -12 -15 1. Max Static F lbf 4000 3300 2500 d in 0,60 0,93 1,2 2. Max Shock F lbf 30000 20000 15000 d in 3,2 4,0 5,1 3. Max Vibration 2a in 0,35 0,44 0,56 f Hz 4,4 3,8 3,4

1. Max static load (F) with corresponding deflection (d)
2. Max shock load (F) with corresponding deflection (d)
3. Uncoupled resonant frequency (f) under max static loading 1. and max peak to peak sinusoidal vibration input (2a)

*IMPORTANT: Performance characteristics are given here for reference only. They can be increased under specific conditions. Contact us

Typical shock/vibration specifications:

Air	AIR 7306, MIL-E-5400, MIL-C-172, MIL-STD-810
Ground Forces	GAM EG13A, SEFT 001, MIL-STD-810, VG 9533
Marine	GAM EG13C, IT25-21/96-31/15-86, MIL-S-167, MIL-S-901, STANAG 042, BV 043.73, BV 044
Others	GAM EMB1, GAM EMBT4, DEF STAN 07-55, IEC 571, FINABEL 2C

Aug. 24, 2021 www.socitec.com 2
