CV-801 - Cyberview PS/2 8-port KVM Switch

The Cyberview CV-801 is KVM switch with features such as adjustable brackets , On screen display control and hotkey command to provide effective assistant for an administrator to control multiple PCs. The Cyberview CV Series provides cost effective for your limited IT budget over using sets of keyboard, monitor and mouse. Also, it will be space saving for your compact environment rack.

NOTE: Qty 8 CD-6 cables are included

See Detailed KVM Layout

CV-801 Features

• Support multiple keyboard languages.
• LED Display for easy status monitoring.
• Buzzer sound for switching port confirmation.
• Keyboard status restored when switching PCs.
• Provide Console PS/2 to PC serial mouse conversion
• Using Standard PS/2 Keyboard, VGA, PS/2 Mouse cable.
• No Dipswitch setting needed and auto detect cascade bank
• Built-in one extra daisy chain port and no waste any PC port.
• Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
• Support eight characters password protection and search PC server name.
• Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or the other fully compatible MS mouse.
• Support DOS, Win3.X, Win95/98/98SE/2000/ME, WinNT, Netware, Unix, Linux
• Hot Plug - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
• No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.
• Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds.

CV-801 Layout

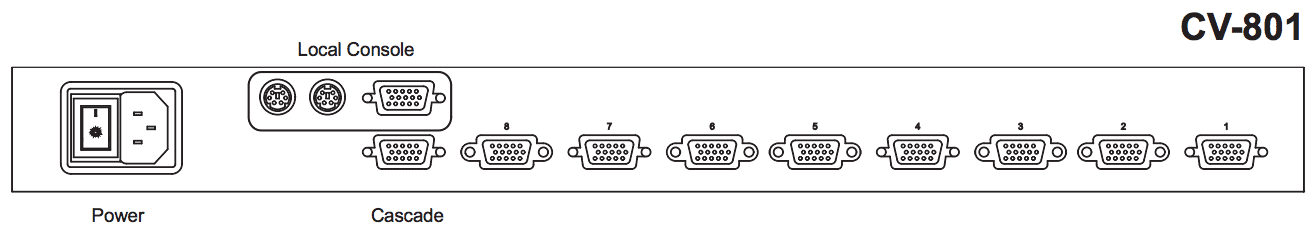

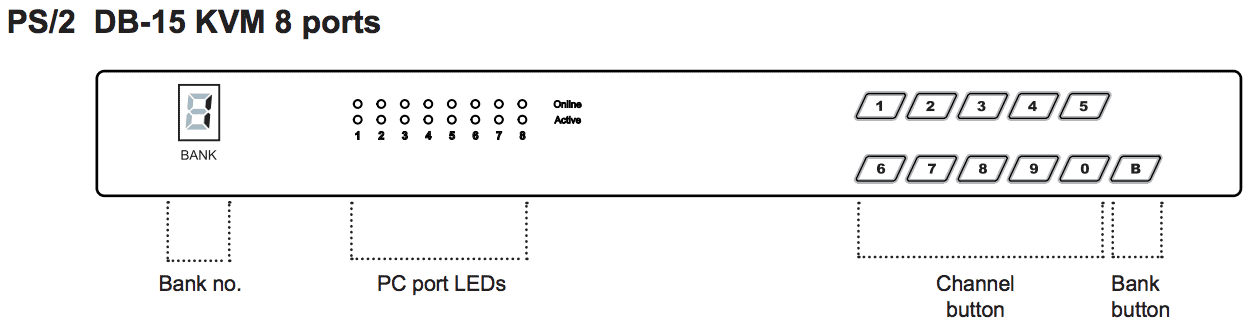

CV-801 Rear DiagramCV-801 Front Diagram _TALK TO AN EXPERT

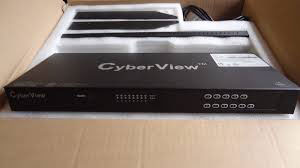

CV-801 Package Contents

• (1) CV-801 KVM Switch
• (8) CD-6 6ft VGA PS/2 KVM cable - for KVM
• (1) 1U, 19" Rack mount kit w/ brackets & screws
• (1) Power adapter w/ US power cord - for KVMNote, DC power excludes AC power cord.
• (1) 2-Year manufacturer warranty
• *Please note, package contents may change with unit 'options'.

CV-801 Resources

CV-801 Datasheet (PDF)CV-801 User Manual (PDF)

CV-801 Specifications

Local console
PC port	8/16
Console Port	-
PC Selection	OSD menue, hot key, push button
LED	1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red)
On screen display control	Yes
Scan Intervals	5~99sec
Keyboard and mouse emulation	PS/2
VGA Resolution (Max.)	1920x1440
Cat5 Length	N/A
Bandwidth	200Mhz
Cascade Level	8 levels
PC Connection	120/128
Housing	Metal
KVM Switch Power Adapter	DC 12V

CV-801 is also known as:

• 801
