  • CV-801H - Cyberview CV-801H - Click To Enlarge
Austin Hughes CyberView8-Port, VGA DB15 KVM w/ USB Hub

CV-801H

$844.00$740.00Save $104.00Model: CV-801H
  • + Compare Family

    • See All CyberView KVMs

    CyberView DB-15 KVM Series
    16 Ports8 PortsLocalUsersIP WebUsersExtendedUsers
    CV-S1601CV-S801100
    IP-1602IP-802110
    M-IP1613M-IP813111
    M-IP1624M-IP824121
    M-IP1614M-IP814112
    CV-1602CV-802101
    M-1602M-802101
    M-1603M-803102
    M-1604M-804103

    *Part numbers starting with 'M-' denote multi-user models. Multi-user models support 4 simultaneous users and customizable user profiles.

    CyberView USB Hub KVM Series
    16 Ports8 PortsLocalUsersIP WebUsersExtendedUsers
    CV-1601HCV-801H100
    IP-1602HIP-802H110
    CV-1602HCV-802H101
    CyberView PS2 KVM Series
    16 Ports8 PortsLocalUsersIP WebUsersExtendedUsers
    --CV-801100
    TALK TO AN EXPERT
Ports: 8 Ports
  • 8
Local Users: 1
  • 1
IP Web Users: 0
  • 0
  • 1
Extended Users: 0 (up to 500ft away)
  • 0
  • 1
100-240V AC[-12VDC] 12V DC (+$323)[-24VDC] 24V DC (+$323)[-48VDC] 48V DC (+$323)[-125VDC] 110V DC (+$423)Power Input FREE Shipping on orders over $100ADD TO CART
  • Info
  • Accessories
  • Related
  • Questions
  • Reviews

The CV-801H is an 8-port DB-15 VGA-USB KVM Switch with USB Hubs.

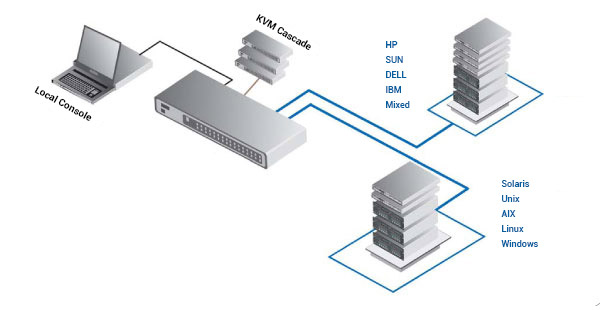

Austin Hughes CyberView CV-801H Application Diagram

See Detailed KVM Layout

CV-801H Features & Benefits

  • VGA DB-15 KVM in 1U form
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Support resolution up to 1920 x 1080
  • Mix USB & SUN with Multi-Platform switch capability
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

CV-801H Layout

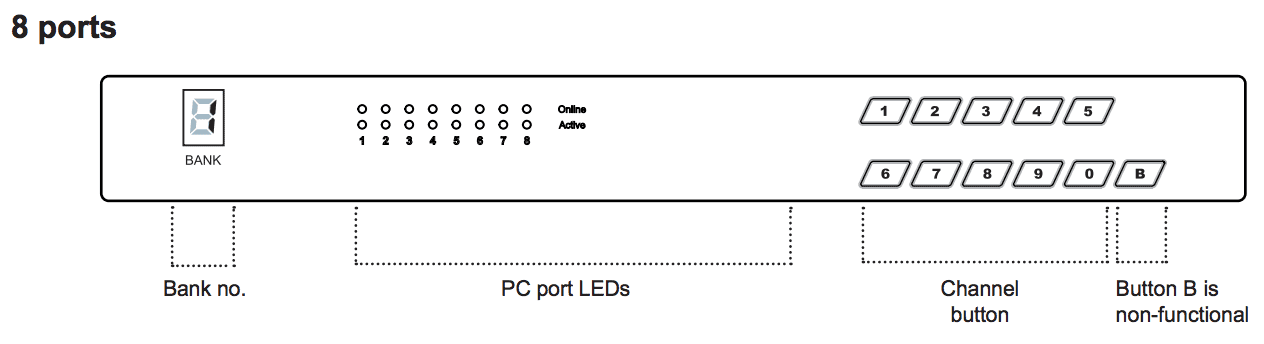

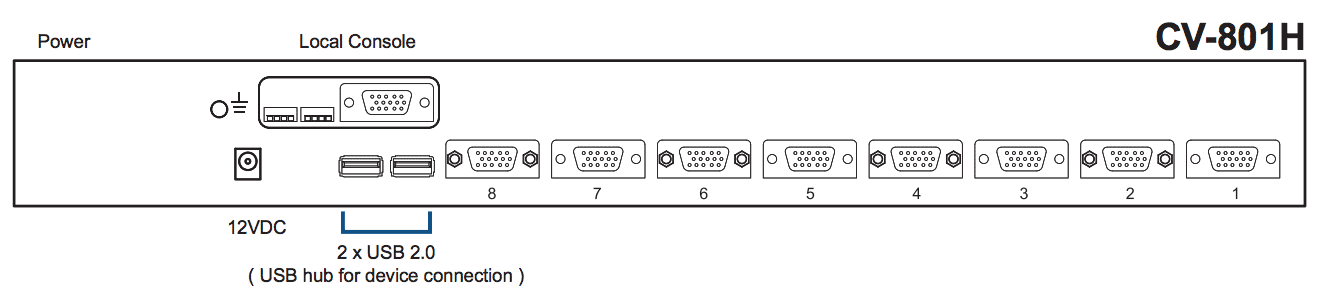

Austin Hughes CyberView CV-801H Rear Back CV-801H Rear Diagram Austin Hughes CyberView CV-801H FrontCV-801H Front Diagram _TALK TO AN EXPERT

CyberView CV-801H Highlights

  • Austin Hughes CyberView CV-801H USB Peripheral Hub

    2-Port USB Peripheral hub

    CyberView DB-15 Hub KVMs feature two USB Peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.

  • Austin Hughes CyberView CV-801H Multi-platform support

    Multi-platform support

    The CyberView VGA DB-15 Hub KVM switches support any computer platform with USB or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

    Compare Cables

  • Austin Hughes CyberView CV-801H multi-user diagram

    Multi-user access & management

    One local user can control 8 multi-platform servers. Advanced user profiles and configurable OSD hot key combinations allows for flexible BIOS-level remote server management.

  • Austin Hughes CyberView CV-801H Channel selection

    Channel selection options

    The CyberView CV-801H can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView CV-801H Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.

  • Austin Hughes CyberView CV-801H DC Power

    AC power OR Optional DC power

    CyberView CV-801H ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.

  • Austin Hughes CyberView CV-801H Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView CV-801H KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.

_

Computer Interface Module (CIM) for CyberView VGA DB-15 Hub KVM

Part #

Length

Keyboard & Mouse

Video

CB-6

6ft

USB

VGA

CB-10

10ft

USB

VGA

CB-15

15ft

USB

VGA

CV-801H Package Contents

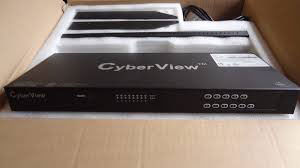

Austin Hughes CyberView CV-801H Package Contents

  • (1) CV-801H KVM Switch
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM Note, DC power excludes AC power cord.
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

CV-801H Resources

Austin Hughes CyberView CV-801H Resources CV-801H Datasheet (PDF) CV-801H User Manual (PDF)

CV-801H Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth 6.7 in. (171 mm.)
Weight 6.5 lbs. (3 kg.)
Environmental
Operating / Storage Temperature 0 to 55°C / -20 to 60°C
Relative Humidity 20-90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz / 1G random vibration
Power 100~240VAC, 50/60Hz 0.5A via IEC type cord (12V / 24V / 48V DC input option)
KVM Port 8 x DB-15 combo connector
Local Console
DB-15 VGA 1 (up to 1920 x 1200)
USB for KB & MS 2
Expansion None
Compatibility
Hardware Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server.
Operating Systems Windows, Linux, Unix, Mac OS
Regulatory Approval FCC, CE, RoHS2, REACH
