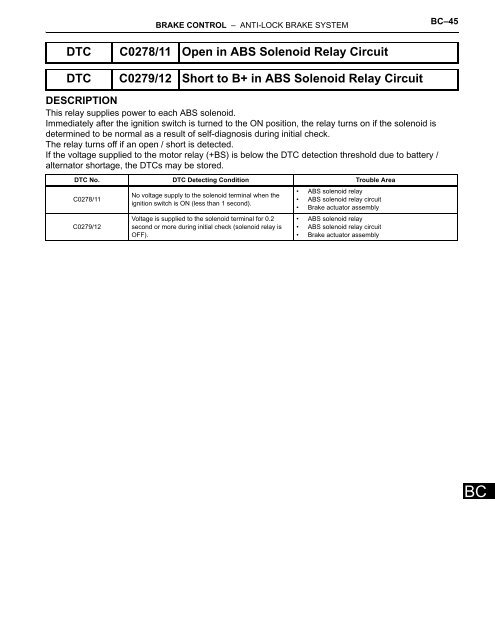

BRAKE CONTROL – ANTI-LOCK BRAKE SYSTEM BC–45 <strong>DTC</strong> <strong>C0278</strong>/<strong>11</strong> <strong>Open</strong> <strong>in</strong> <strong>ABS</strong> <strong>Solenoid</strong> <strong>Relay</strong> <strong>Circuit</strong> <strong>DTC</strong> <strong>C0279</strong>/<strong>12</strong> Short to B+ <strong>in</strong> <strong>ABS</strong> <strong>Solenoid</strong> <strong>Relay</strong> <strong>Circuit</strong> DESCRIPTION This relay supplies power to each <strong>ABS</strong> solenoid. Immediately after the ignition switch is turned to the ON position, the relay turns on if the solenoid is determ<strong>in</strong>ed to be normal as a result of self-diagnosis dur<strong>in</strong>g <strong>in</strong>itial check. The relay turns off if an open / short is detected. If the voltage supplied to the motor relay (+BS) is below the <strong>DTC</strong> detection threshold due to battery / alternator shortage, the <strong>DTC</strong>s may be stored. <strong>DTC</strong> No. <strong>DTC</strong> Detect<strong>in</strong>g Condition Trouble Area <strong>C0278</strong>/<strong>11</strong> <strong>C0279</strong>/<strong>12</strong> No voltage supply to the solenoid term<strong>in</strong>al when the ignition switch is ON (less than 1 second). Voltage is supplied to the solenoid term<strong>in</strong>al for 0.2 second or more dur<strong>in</strong>g <strong>in</strong>itial check (solenoid relay is OFF). • <strong>ABS</strong> solenoid relay • <strong>ABS</strong> solenoid relay circuit • Brake actuator assembly • <strong>ABS</strong> solenoid relay • <strong>ABS</strong> solenoid relay circuit • Brake actuator assembly BC
