Hello…help finding the parking sensor buzzer please?

Random Caddy chat. Not the place for sale or wanted topics. Post Reply
  • Print view
Pintascrumpy Caddy2k Groupie Posts: 4 Joined: Sun Apr 24, 2022 8:10 pm Engine size/power: 1.6 CR TDI (102bhp)

Hello…help finding the parking sensor buzzer please?

  • Quote

Post by Pintascrumpy » Sun Apr 24, 2022 8:20 pm

Hello Caddy2k members. New member here based Hampshire UK. Have recently purchased a 2014 Caddy Kombi which has factory rear parking sensors fitted in the bumper, but they are not working. Had a diagnostic tell me that there is a fault with the parking sensor buzzer / speaker. Only problem is I don’t know where to find it as I have never heard them work! Mine is a factory Kombi (not ex gas) Can someone kindly tell me where the beeping comes from!? Thanks in advance Top DW2207 Hyper Poster Posts: 886 Joined: Tue Oct 01, 2019 8:49 am Engine size/power: 1.9 TDI (104bhp)

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by DW2207 » Mon Apr 25, 2022 7:05 am

Depending on what sensors you have there are 2 places it could be I believe. The first place to try is drivers rear of the van in the top right hand corner. May be behind ply lining. Next if its the pdc system is behind the plastic trim panel where the bonnet release handle is located. This is where I had to fit mine when I bought the genuine vw ones. Hope this helps some what. Sent from my SM-G981B using Tapatalk Top User avatar dan@biali Hyper Poster Posts: 3677 Joined: Sun Mar 06, 2011 11:32 pm Engine size/power: 2.0 Stage 3+ TFSI

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by dan@biali » Mon Apr 25, 2022 7:08 am

I think mine was behind the panel with holes in it at the back of the load area on the near side. Image Top Pintascrumpy Caddy2k Groupie Posts: 4 Joined: Sun Apr 24, 2022 8:10 pm Engine size/power: 1.6 CR TDI (102bhp)

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by Pintascrumpy » Mon Apr 25, 2022 10:22 am

Thank you for the replies. I have searched in all those suggested places but annoyingly still cannot find the little speaker. If anyone has a factory maxi Kombi mk3 could they let me know where the beeping comes from when they reverse. I believe mine are factory fitted sensors. Maybe I can track it down this way! Thanks in advance Top User avatar dan@biali Hyper Poster Posts: 3677 Joined: Sun Mar 06, 2011 11:32 pm Engine size/power: 2.0 Stage 3+ TFSI

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by dan@biali » Mon Apr 25, 2022 12:41 pm

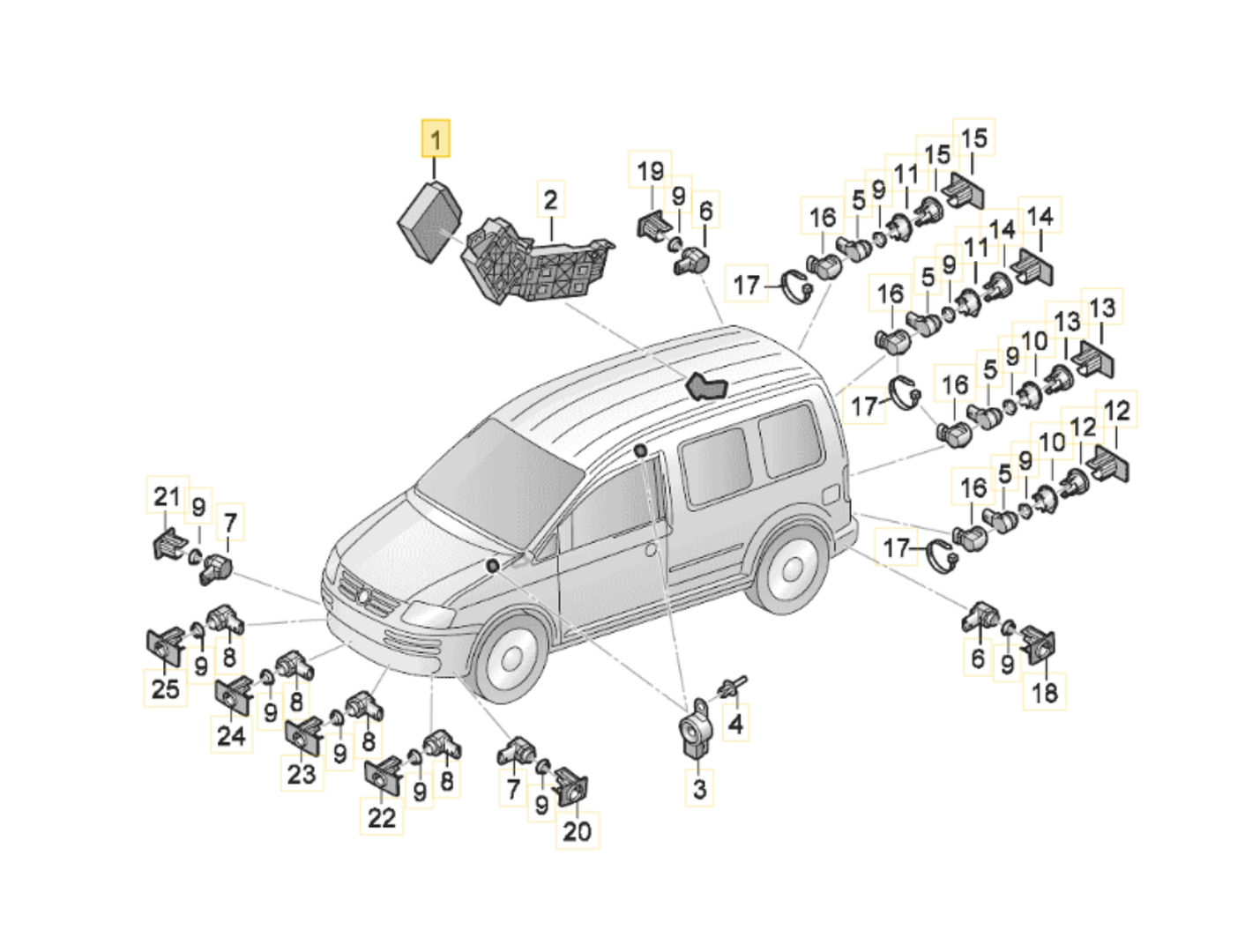

A quick glance on google and I found that the T6 has them behind the dash (for front) and passenger B pillar for the rear sensors. Looked on parts database and it shows similar positions for the caddy - #3 in this diagram. That looks like its above the door rather than in the B pillar. I've also just seen a reference to it under the dash on the passenger side if its just a rear system (and on the database it shows under the dash on the righthand side if its pre 2012). Image and it looks like this Image Image Top User avatar Doc Not God, just a bellend Posts: 18787 Joined: Thu Jan 01, 1970 1:00 am Engine size/power: 2.0TSI EA888 Gen3 Location: Monaghan, Ireland & Derbyshire, UK

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by Doc » Mon Apr 25, 2022 1:36 pm

In vans I've been in with only rear sensors and a bulkhead, the buzzer is along with the parking module, in the dashboard just forward of the light switch. Image Image 2013 Caddy with EA888 Gen3 2.0TSI DSG, Superplus MSP19 , Caddy4 rear lights, Polo GTI (mk7 style) steering wheel, Relentless Tuning front coilovers, Audi A6 S-Line front seats, Boxster fronts & GTI rear Brakes, 3D Colour Premium dash cluster, Caddy life arm rest, Motexion bulkhead, MIB head unit All posts written by me are the intellectual property of the caddy2K forum and I do not consent to copying or redistribution of any sort Top Scoobysrt Hyper Poster Posts: 2415 Joined: Mon Oct 19, 2020 7:58 pm

Re: Hello…help finding the parking sensor buzzer please?

  • Quote

Post by Scoobysrt » Tue Apr 26, 2022 9:37 am

When I had my head unit out the noise came from in the hole somewhere, biased to the right towards the bulkhead. I've just got sensors in the rear bumper. Sorry I can't be more specific. 2016 Starlight blue highline 2.0 tdi - stainless side bars - DubUnit remap 190 bhp ish - st x lowering kit - golf R cadiz 18" wheels - rear wiper delete - ProVan600 interior led light - red painted calipers - Kenwood headunit - sequential side repeaters - vcds hex net pro Top Post Reply
